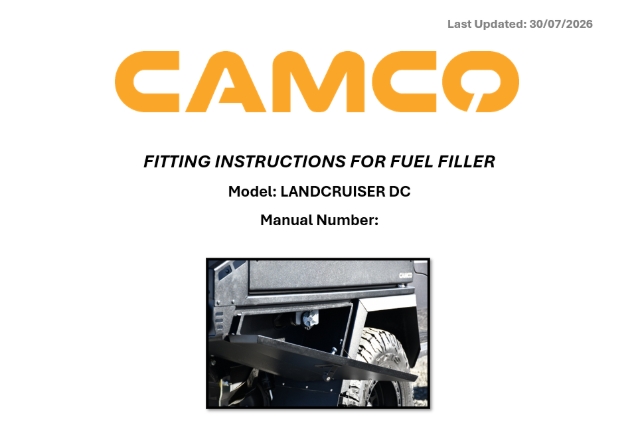

FUEL FILLER UDTB, LAND CRUISER DC
1
Step 1 of 19
2
Step 2 of 19

Contents (Click to view)

​STEP 4: Components List​

​STEP 6: Tools List​

​STEP 7: Torque Values​

​STEP 8: Fuel Filler Prep​

3
Step 3 of 19

Contents (Click to view)

​STEP 12: Fuel Filler Bracket​

​STEP 14: Fitting Fuel Filler/Breather to New Hoses​

​STEP 17: Fitting Bracket to UDTB​

​STEP 19: QA Sheet​

4
Step 4 of 19

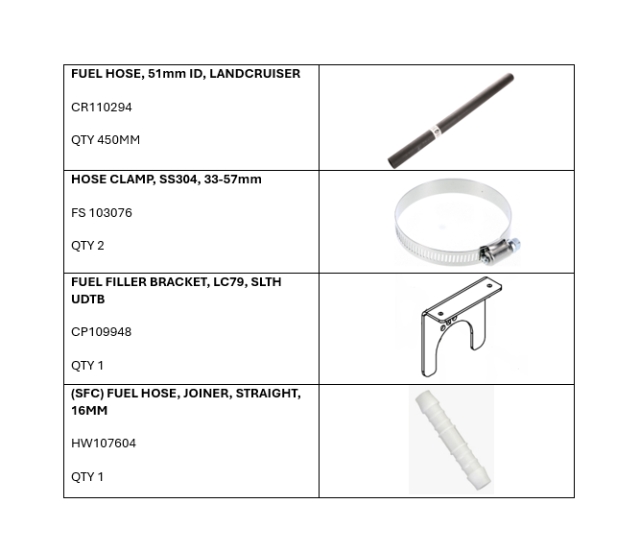

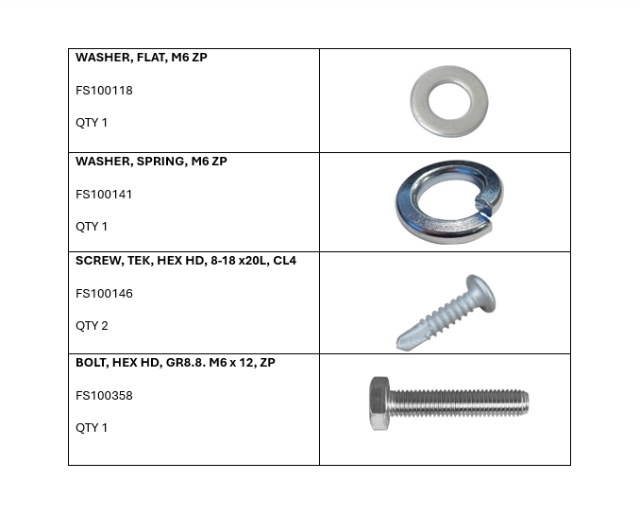

<p>Components List</p>

Components List

5
Step 5 of 19
6
Step 6 of 19

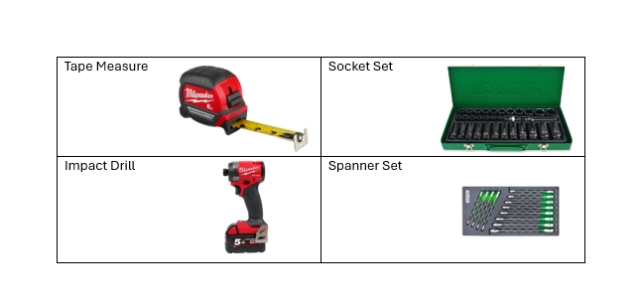

<p>Tools List</p>

Tools List

7
Step 7 of 19
<p>Torque Values</p>

Torque Values

8
Step 8 of 19

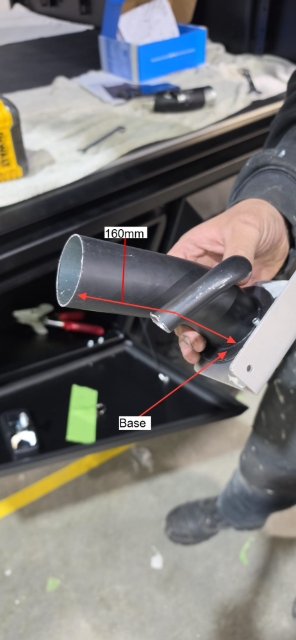

<p>Cut the fuel filler at 160mm from the base of the factory fuel filler.</p>

Cut the fuel filler at 160mm from the base of the factory fuel filler.

9
Step 9 of 19

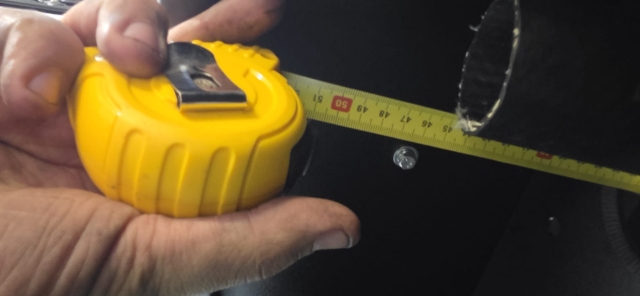

<p>Measure and cut the new hose to 450 mm for the fuel filler.</p>

Measure and cut the new hose to 450 mm for the fuel filler.

10
Step 10 of 19

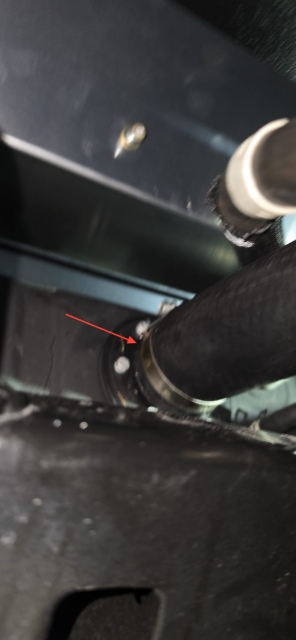

<p>Fit the new hose to the fuel tank with a hose clamp.</p>

Fit the new hose to the fuel tank with a hose clamp.

11
Step 11 of 19

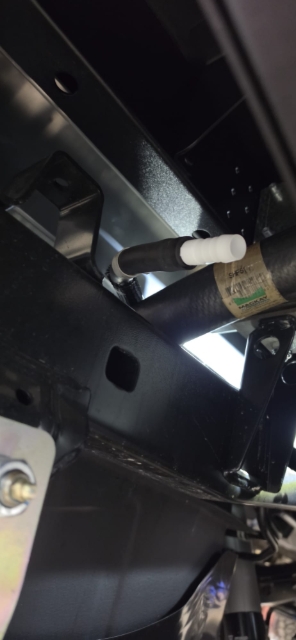

<p>Fit the breather joiner into the factory breather Hose.</p>

Fit the breather joiner into the factory breather Hose.

12
Step 12 of 19

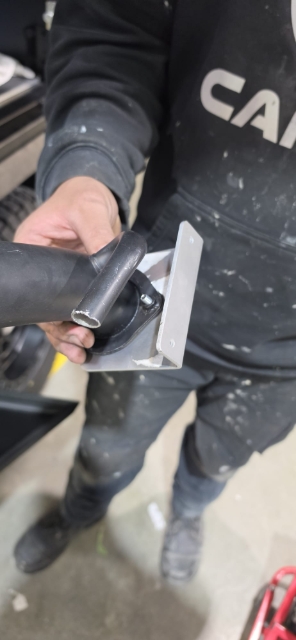

<p>Fit the fuel fille to the mounting bracket.</p>

Fit the fuel fille to the mounting bracket.

13
Step 13 of 19

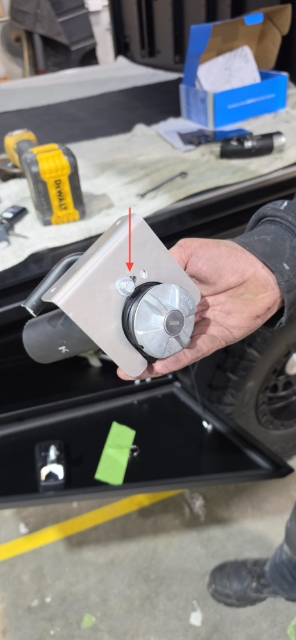

<p>Bolt</p>

Bolt

14
Step 14 of 19

Fit the breather extension hose

15
Step 15 of 19

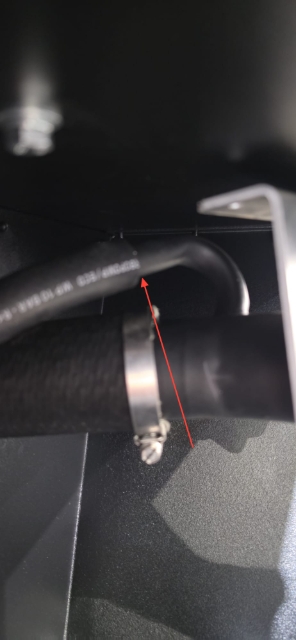

<p>Fit the new breather hose to the fuel filler funnel</p>

Fit the new breather hose to the fuel filler funnel

16
Step 16 of 19
<p>Fit the fuel filler hose to the funnel and use a </p>

Fit the fuel filler hose to the funnel and use a

17
Step 17 of 19

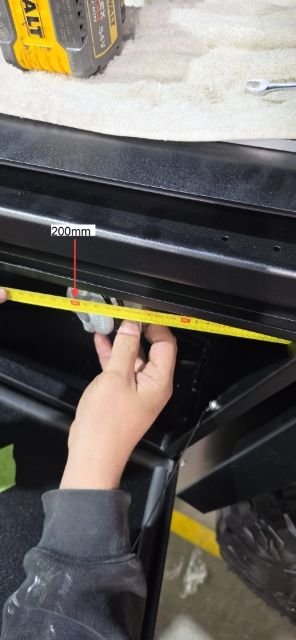

<p>Fit the fuel filler 200mm from the front top corner of the UD toolbox.</p>

Fit the fuel filler 200mm from the front top corner of the UD toolbox.

18
Step 18 of 19

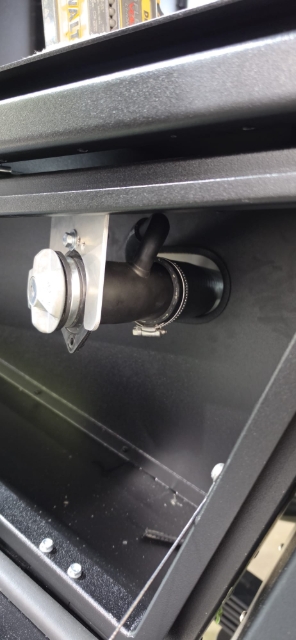

<p>Fit using 2 tek screws</p>

Fit using 2 tek screws

19
Step 19 of 19
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>If you have issues with instructions and need assistance, please contact.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:roman@camcoindustries.co.nz">roman@camcoindustries.co.nz</a></p><p>+64 21 349 001</p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If you have issues with instructions and need assistance, please contact.

roman@camcoindustries.co.nz

+64 21 349 001



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
