Re-Fit Reversing Sensors: Hilux
1
Step 1 of 15

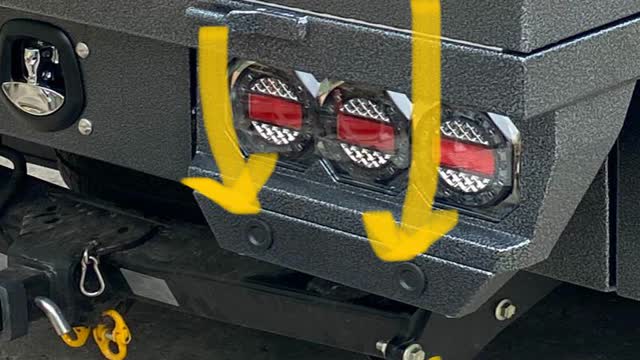

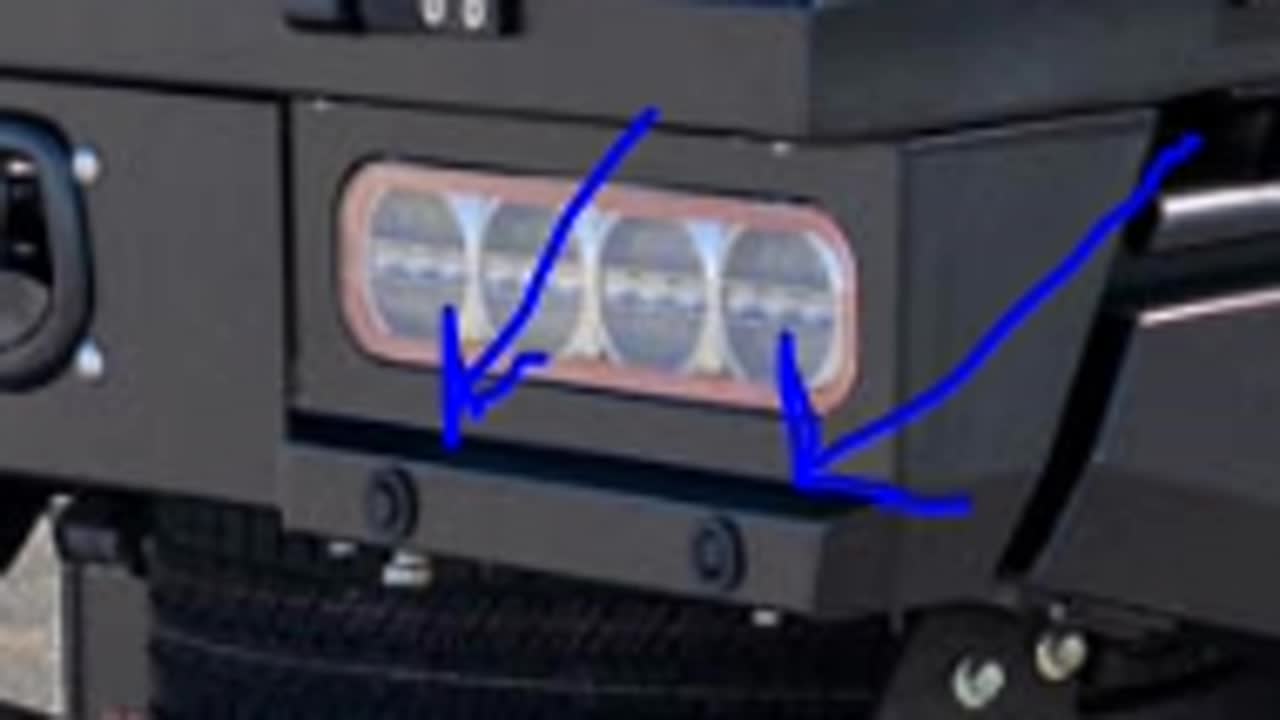

<p>Suits the genuine sensors which come in the rear bumper</p> <p>These instructions presume that the rear bumper has already been removed from vehicle</p>

Suits the genuine sensors which come in the rear bumper

These instructions presume that the rear bumper has already been removed from vehicle

2
Step 2 of 15
<p><strong>Tools Required</strong></p> <ul> <li>Wire cutters</li> <li>Pry Tool</li> </ul>

Tools Required

  • Wire cutters
  • Pry Tool
3
Step 3 of 15

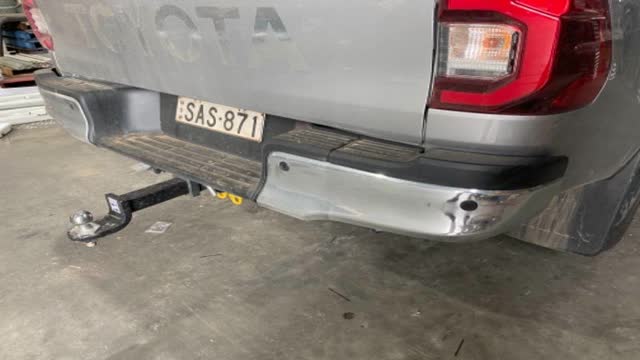

<p>The original rear bumper look like this</p>

The original rear bumper look like this

4
Step 4 of 15

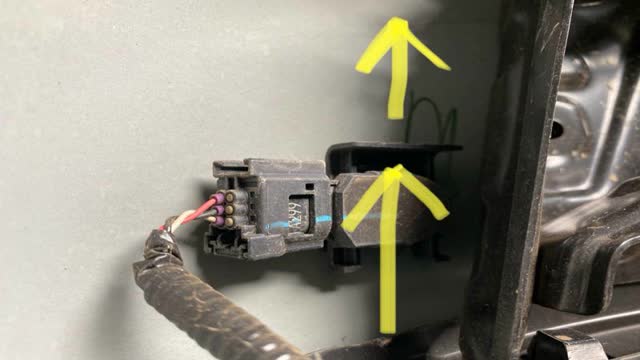

<p>On the rear bumper, Push retaining clips to remove sensor from rear bumper</p>

On the rear bumper, Push retaining clips to remove sensor from rear bumper

5
Step 5 of 15

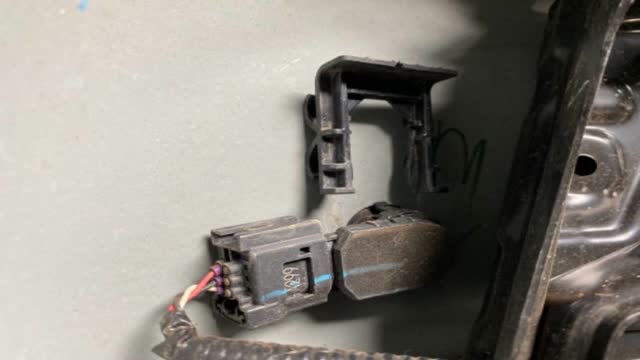

<p>Clip is now removed, sensor will now come out</p>

Clip is now removed, sensor will now come out

6
Step 6 of 15

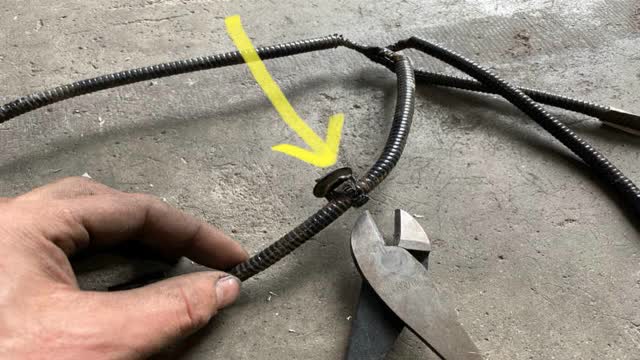

<p>Remove extra clamps from harness</p>

Remove extra clamps from harness

7
Step 7 of 15

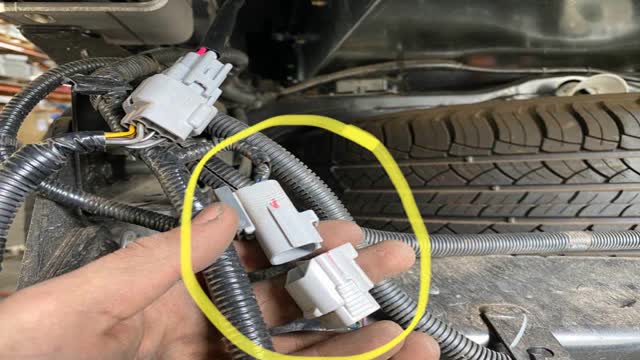

<p>Plug in harness, rear passenger side of vehicle</p>

Plug in harness, rear passenger side of vehicle

8
Step 8 of 15

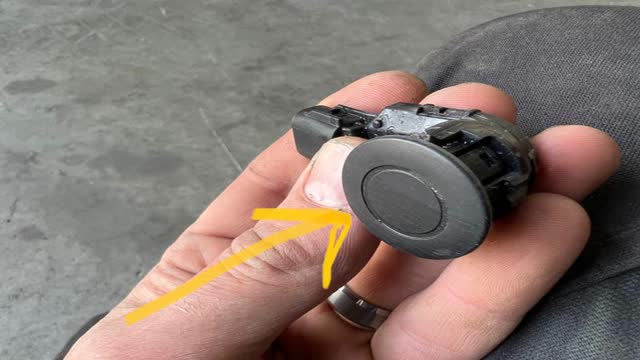

<p>Boot</p>

Boot

9
Step 9 of 15

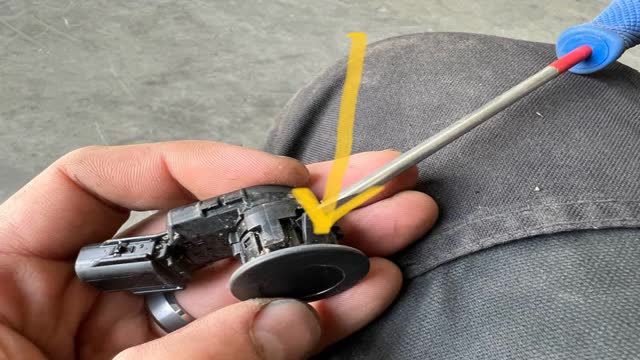

<p>Pry the boot off</p>

Pry the boot off

10
Step 10 of 15

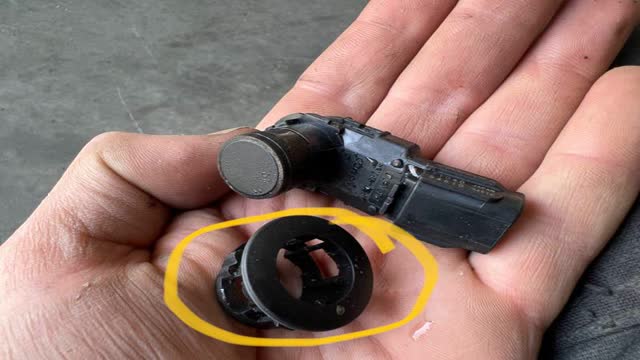

<p>Removed boot - it is not reused.</p>

Removed boot - it is not reused.

11
Step 11 of 15

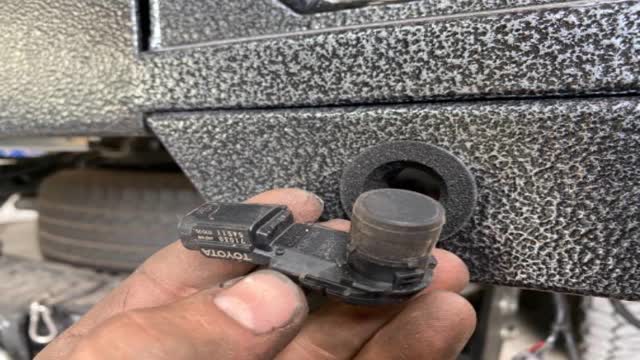

<p>This is showing the sensor and the bracket it will go into</p>

This is showing the sensor and the bracket it will go into

12
Step 12 of 15

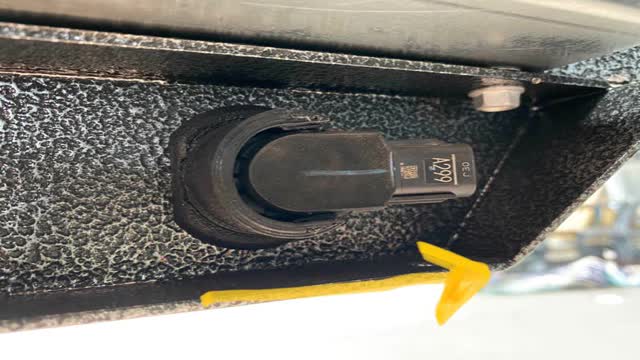

<p>Ensure that sensor tail, faces in (towards the centre of the vehicle)</p>

Ensure that sensor tail, faces in (towards the centre of the vehicle)

13
Step 13 of 15

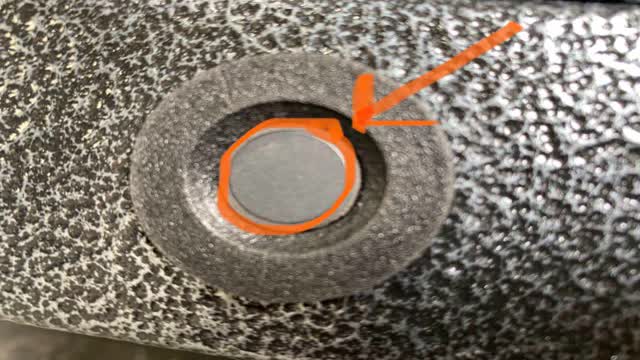

<p>Ensure the plastic sleeve (highlighted red) is not pinched, and it is sitting well</p>

Ensure the plastic sleeve (highlighted red) is not pinched, and it is sitting well

14
Step 14 of 15

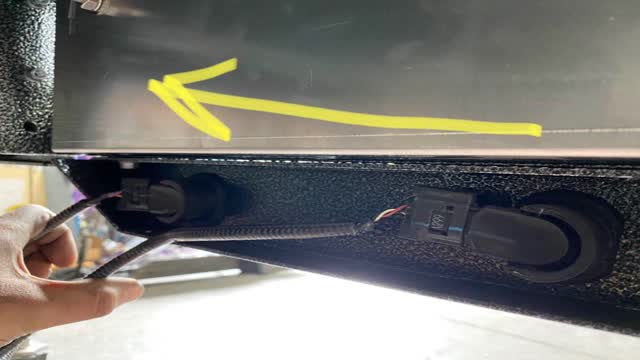

<p>Plus in harness, notice that the wiring runs to the centre of the vehicle</p>

Plus in harness, notice that the wiring runs to the centre of the vehicle

15
Step 15 of 15

With a 2nd person, ensure the sensors are working correctly
