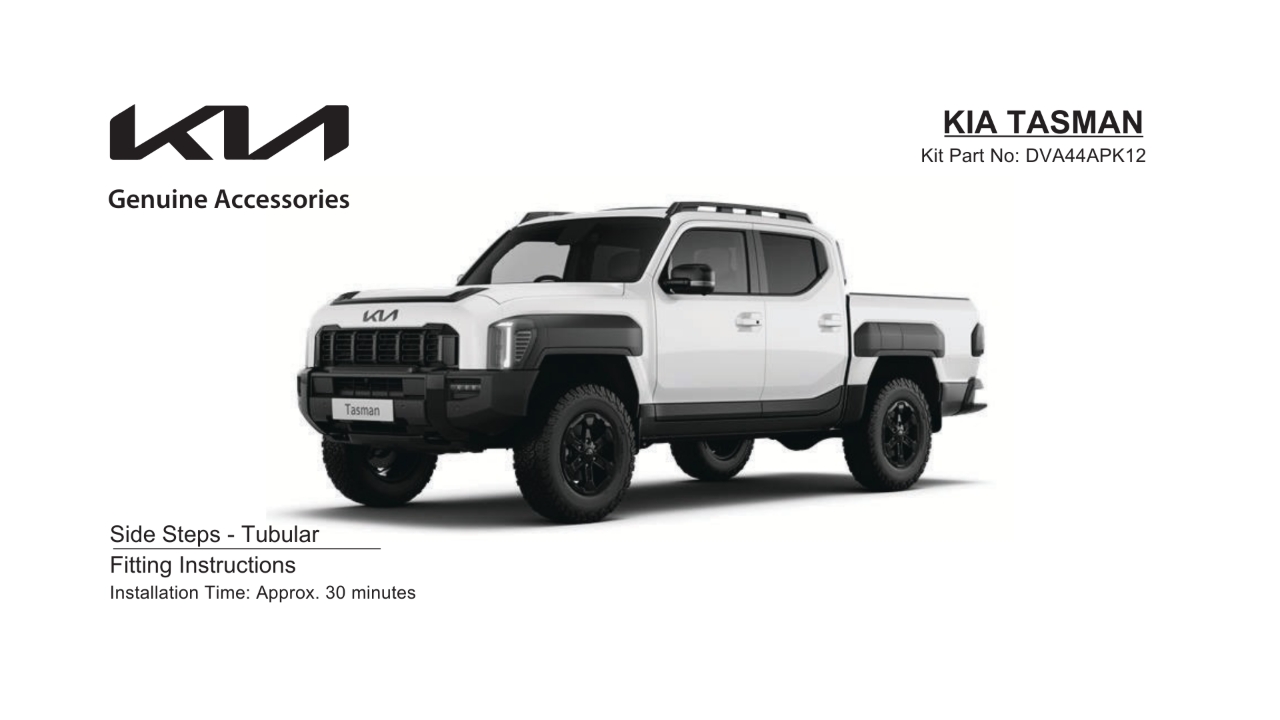

Side Steps - Tubular

Read the fitting instructions before install. Use a qualified technician. Recycle packaging. Store removed parts safely. Remove swarf/dust from install surfaces. Follow safety standards. Wear appropriate clothing and equipment.

Step 1 of 7

General Notes

Read through the fitting instructions before installation of the accessory. Install the accessory following the fitting instructions. Failure to do so may cause damage to the vehicle or the accessory.
Ensure all recyclable discarded vehicle accessory components and packaging are recycled following local recycling regulations.
It is always recommended that this accessory is fitted by a qualified Kia Technician.
Safely store and protect any removed vehicle components.
Ensure all bare metal surfaces are protected using automotive bare metal primer and touch-up paint, or suitable automotive rust inhibitor.
Remove all metal swarf and dust from all vehicle surfaces if surface is used for accessory installation.

Safety Notes

Check that all work practices comply with safety standards.
Please wear appropriate clothing and use safety equipment.

Step 2 of 7

Step 1

IMPORTANT

Always refer to the vehicle’s Workshop Manual when removing vehicle components.

Place the Bracket -A- LH (3) over the chassis rail. Use three M10x30 Hex Bolts (9) and three M10 Flat Washers (10) to secure the Bracket -A- LH (3).
Do not tighten the bolts.
Repeat for RHS.

Tools Used

Wrench
16mm Socket
16mm Spanner

Step 3 of 7

Step 2

Place the Bracket -B- LH (5) over the chassis rail. Use three M10x30 Hex Bolts (9) and three M10 Flat Washers (10) to secure the Bracket -B-LH (5).
Do not tighten the bolts.
Repeat for RHS.

Tools Used

Wrench
16mm Socket
16mm Spanner.

Step 4 of 7

Step 3

Place the Bracket -C- LH (7) over the chassis rail. Use three M10x30 Hex Bolts (9) and three M10 Flat Washers (10) to secure the Bracket-C- LH (7).
Do not tighten the bolts.
Repeat for RHS.

Tools Used

Wrench
16mm Socket
16mm Spanner.

Step 5 of 7

Step 4

IMPORTANT

Two people are required to complete this step.

Mount the Step LH (1) over Brackets – A, B & C. Use twelve M8x25 Hex Bolts (11), twenty four M8 Flat Washers (12) and twelve M8 Lock Nuts (13) to secure the Step LH (1).
Push the Step LH (1) towards the vehicle evenly at all three bracket locations.
Torque all M8x25 Hex Bolts (11) to 20Nm.
Torque all M10x30 Hex Bolts (9) to 50Nm.
Repeat for RHS.

Note: The Side Steps are marked RH and LH. Look for white label underneath the Side Step.

Tools Used

Wrench
13mm & 16mm Socket
13 & 16mm Spanner
Torque Wrench.

Step 6 of 7

Step 5

Open the driver’s door.
Clean the driver’s side lower door jam area below the striker using 50/50 mix of Isopropyl alcohol (70%) & water and a clean cloth then allow to dry thoroughly.
Adhere the provided Warning Label (14) on the lower door jam area below the striker as shown.
Repeat for driver’s side rear door, passenger front and rear door.

(Please place the Fitting Instructions in the glove box after installation is completed)

Step 7 of 7

FINISHED PRODUCT
