Vat wash

Knowby

Vat wash

1

Step 1 of 9

<p>Turn switch to pump recirculation</p>

Turn switch to pump recirculation

2

Step 2 of 9

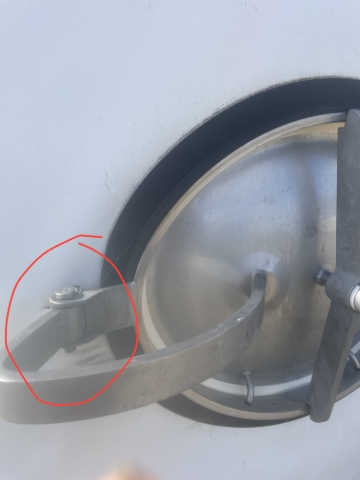

<p>Takeoff door by removing this pin. Clean inside the seal with a brush once Clean return how it was.</p>

Takeoff door by removing this pin. Clean inside the seal with a brush once Clean return how it was.

3

Step 3 of 9

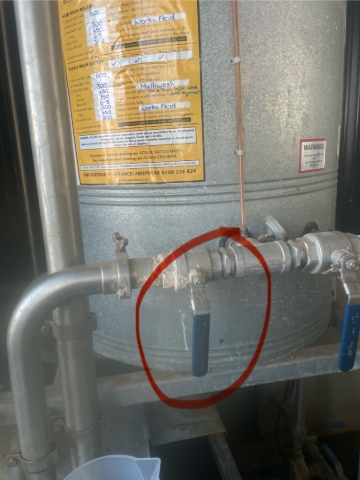

<p>Once all the cold water is gone from the tub you can fill the tub with hot water from the Vet cylinder using this tap</p>

Once all the cold water is gone from the tub you can fill the tub with hot water from the Vet cylinder using this tap

4

Step 4 of 9

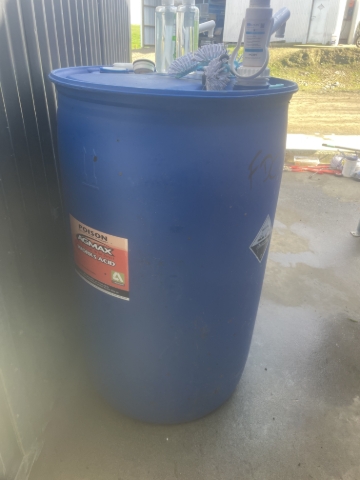

<p>Add 750 mil of acid to the hot water. And run this through the vat</p>

Add 750 mil of acid to the hot water. And run this through the vat

5

Step 5 of 9

Once the tub is empty of hot water and acid, you can refill with cold water. Make sure the hot water tap from the Vet hot water cylinder is turned off so it can refill.

6

Step 6 of 9

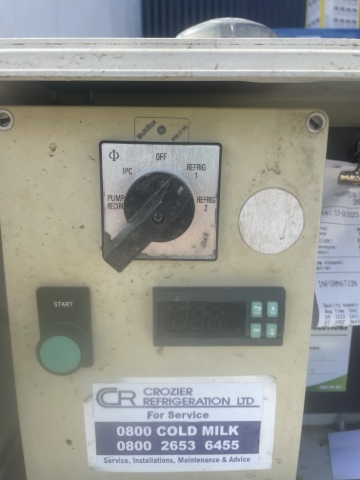

<p>Once the tub of cold water has been through the Vet, you can turn the front controller to off</p>

Once the tub of cold water has been through the Vet, you can turn the front controller to off

7

Step 7 of 9

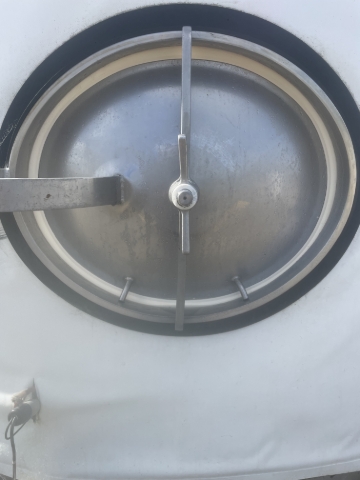

<p>Make sure the vet door is done up tight</p>

Make sure the vet door is done up tight

8

Step 8 of 9

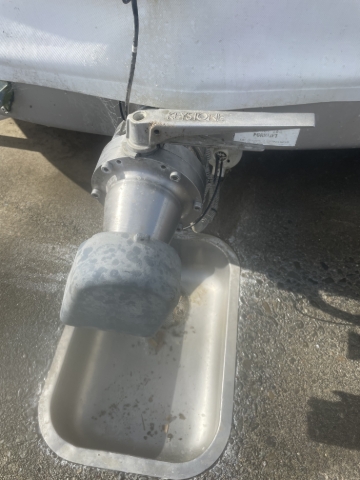

<p>Make sure the vet tap at the front of the Vet is closed after Vet wash</p>

Make sure the vet tap at the front of the Vet is closed after Vet wash

9

Step 9 of 9

You have completed an acid hot wash of the Vet
