How to put wash through cowshed
1
Step 1 of 15

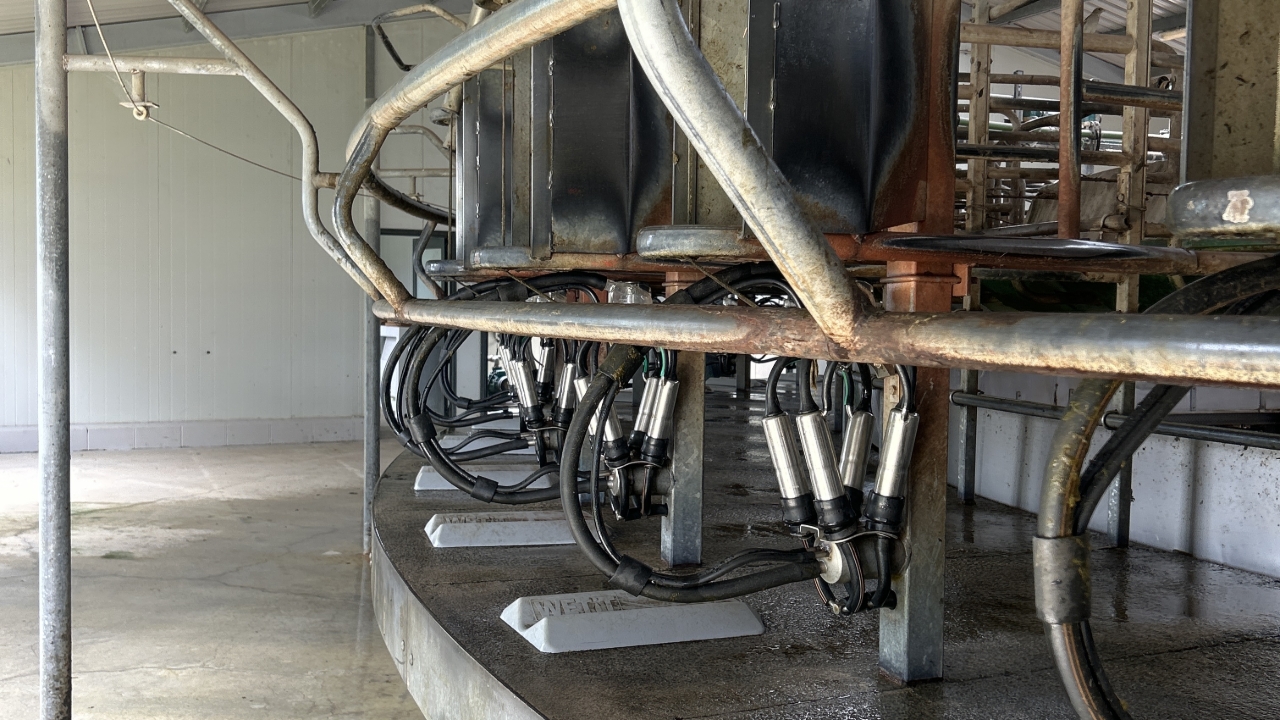

  • ensure all cups have been hung up.

  • check all cows are off the platform

  • cups should be sitting correctly on jetters as shown in the video.

  • check the wash lines under the cups.

  • ensure they are not off, if they are push them back together

2
Step 2 of 15

use above head rope to stop the platform when the receiving can is over the centre grate allowing milk to drain

3
Step 3 of 15

change the taps on the receiving can to allow the wash to go through

4
Step 4 of 15

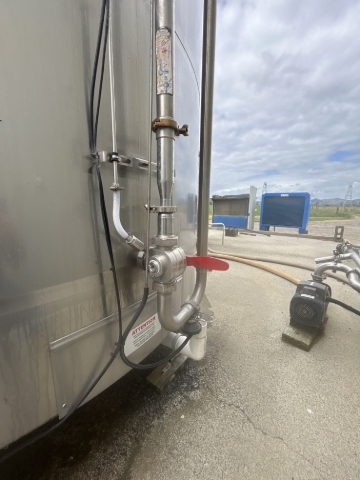

<p>shut the vat tap to ensure no wash water enters the vat </p>

shut the vat tap to ensure no wash water enters the vat

5
Step 5 of 15

walk into milking control area and turn the platform off

6
Step 6 of 15

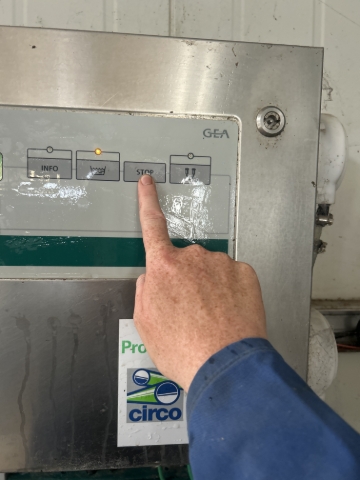

<p>press stop the main board will ask you do you want to stop milking? yes =E </p><p>stop= no </p><p>press E </p>

press stop the main board will ask you do you want to stop milking? yes =E

stop= no

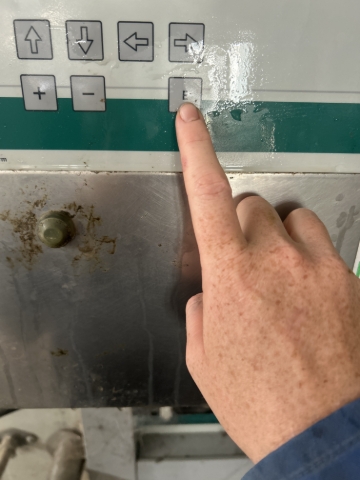

press E

7
Step 7 of 15
8
Step 8 of 15
<p>the main screen should say pre rinsing and the tub will automatically start filling with cold water </p>

the main screen should say pre rinsing and the tub will automatically start filling with cold water

9
Step 9 of 15

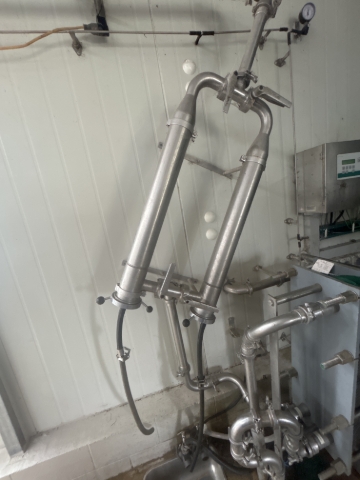

<p>use the taps to remove and replace both filter socks while the cold rinse is going through.</p><p>Do not attempt this if the hot wash is going through</p>

use the taps to remove and replace both filter socks while the cold rinse is going through.

Do not attempt this if the hot wash is going through

10
Step 10 of 15

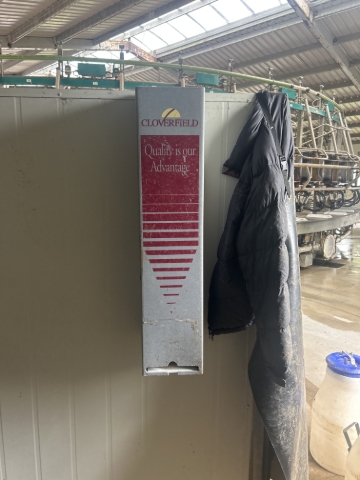

<p>filter socks can be found here</p><p>spares are in the fuse board room </p>

filter socks can be found here

spares are in the fuse board room

11
Step 11 of 15

after the rinse the tub will fill with hot water automatically and start putting the wash through

12
Step 12 of 15

while the hot water is going through the tub walk around the platform and ensure wash is going through all cups

13
Step 13 of 15

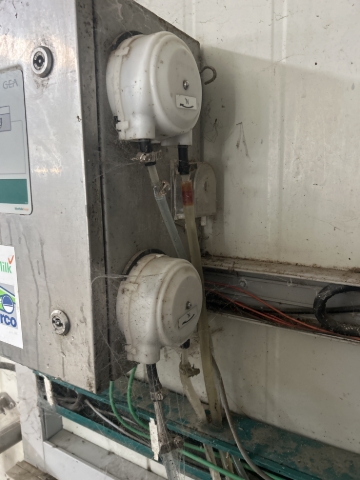

<p>the wash system has automatic chemical dosing systems so no need to add any chemicals </p>

the wash system has automatic chemical dosing systems so no need to add any chemicals

14
Step 14 of 15

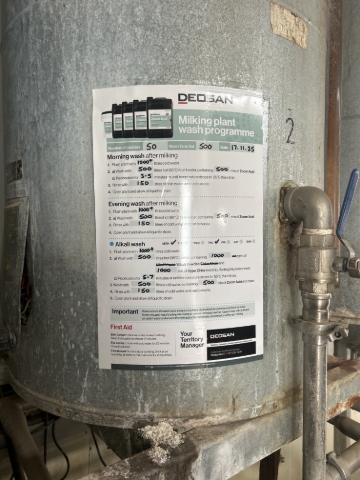

<p>copies of the wash program can be found on the hot water cylinders </p>

copies of the wash program can be found on the hot water cylinders

15
Step 15 of 15

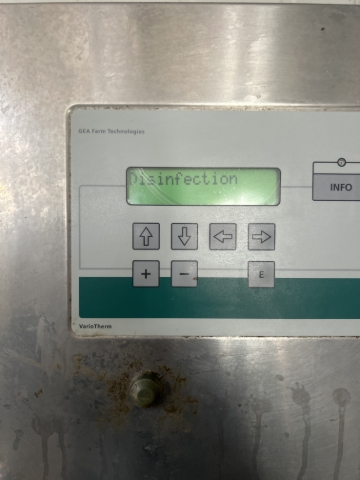

<p>once the hot wash goes through disinfection will occur ensure this cycle begins and you are safe to leave the shed </p>

once the hot wash goes through disinfection will occur ensure this cycle begins and you are safe to leave the shed
