Fit to Vehicle
1
Step 1 of 8

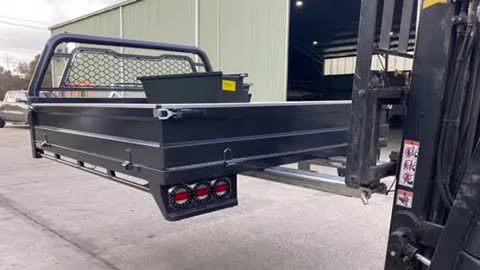

Lift Tray/Canopy in a safe manner

  • If no Trundle Drawer, just lift from behind
  • Slung from above
  • Side Loaded with slings
2
Step 2 of 8
<p><strong>Tools Required</strong></p> <ul> <li>Forklift with Tyne Extensions</li> <li>4 x Lifting Straps</li> <li>Sockets: 18mm, 19mm.</li> <li>Spanners: 18mm, 19mm.</li> </ul>

Tools Required

  • Forklift with Tyne Extensions
  • 4 x Lifting Straps
  • Sockets: 18mm, 19mm.
  • Spanners: 18mm, 19mm.
3
Step 3 of 8
<p><strong>Pro Tip</strong> The most common mistake is not alinging the Tray/Canopy <strong>Squarely</strong> to the vehicle. This is not a step to be missed.</p>

Pro Tip The most common mistake is not alinging the Tray/Canopy Squarely to the vehicle. This is not a step to be missed.

4
Step 4 of 8

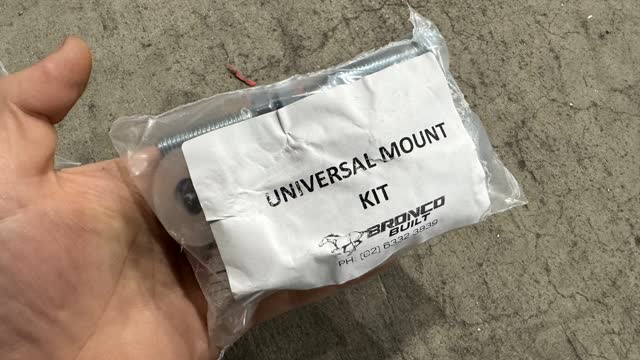

<p>Identify the pack of supplied fasteners.</p>

Identify the pack of supplied fasteners.

5
Step 5 of 8

Fit supplied fasteners

6
Step 6 of 8

Lower onto vehicle

7
Step 7 of 8

Take some reference measurments to nsure it is square on the vehicle

8
Step 8 of 8

Tighten all fasteners 18mm socket on gun. 19mm spanner to hold nut
