Shark UHF Instructions - UMBS
BYD Shark Tools needed: 10mm spanner or socket
BYD Shark Tools needed: 10mm spanner or socket
1
Step 1 of 4

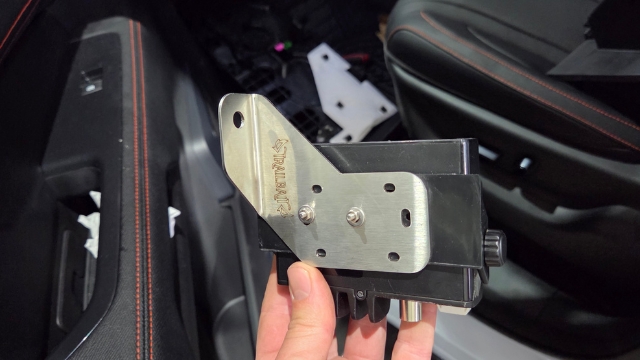

<p><strong>Step 1:</strong> Attach the UHF to the bracket as shown here.</p>

Step 1: Attach the UHF to the bracket as shown here.

2
Step 2 of 4

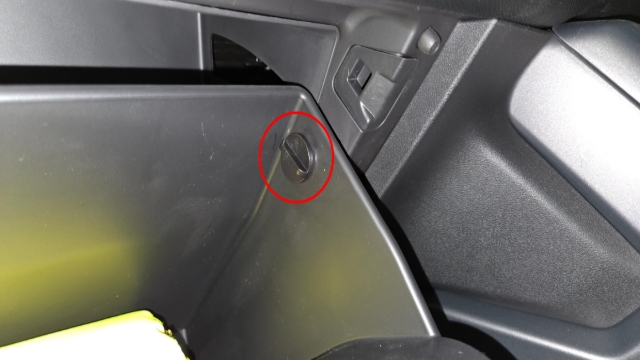

<p><strong>Step 2:</strong> Twist and pull to remove the clips holding each side of the glovebox in place</p><p>Remove the glovebox entirely and set aside.</p>

Step 2: Twist and pull to remove the clips holding each side of the glovebox in place

Remove the glovebox entirely and set aside.

3
Step 3 of 4

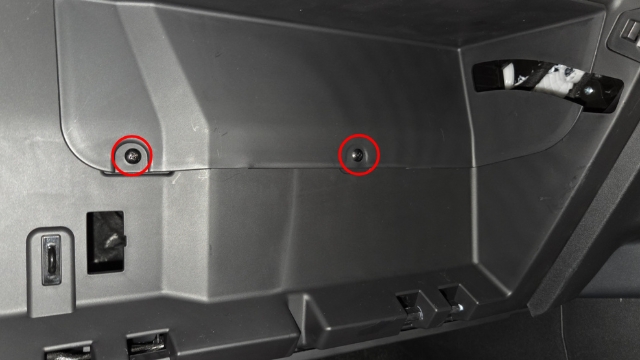

<p><strong>Step 3: </strong>Remove the screws as shown.</p><p>Ease the cover piece out of position to access the cavity.</p>

Step 3: Remove the screws as shown.

Ease the cover piece out of position to access the cavity.

4
Step 4 of 4

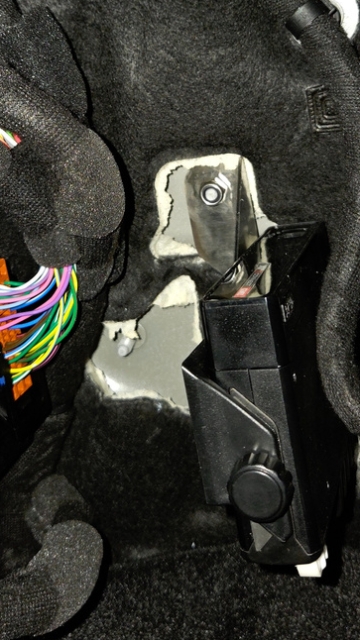

<p><strong>Step 4:</strong> Attach the UHF and bracket assembly to the location pictured using the suppied 6mm nut and washer.</p><p>It may be easier to install the wiring prior to mounting the unit.</p><p></p>

Step 4: Attach the UHF and bracket assembly to the location pictured using the suppied 6mm nut and washer.

It may be easier to install the wiring prior to mounting the unit.
