How to prepare DMAX license plate wiring loom for a Trailcore Body or Tray connection
How to prepare DMAX license plate wiring loom for a Trailcore Body or Tray connection
1
Step 1 of 6

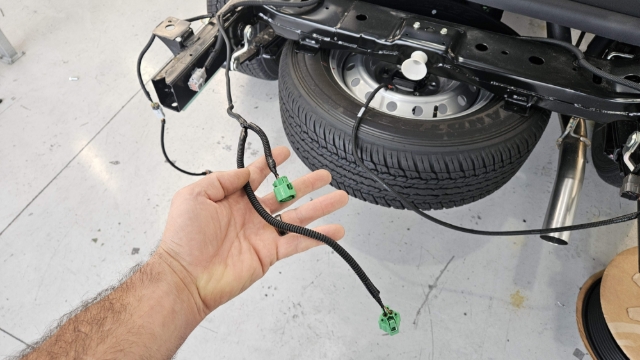

<p>Locate License Plate light loom at passenger side of rear chassis</p>

Locate License Plate light loom at passenger side of rear chassis

2
Step 2 of 6

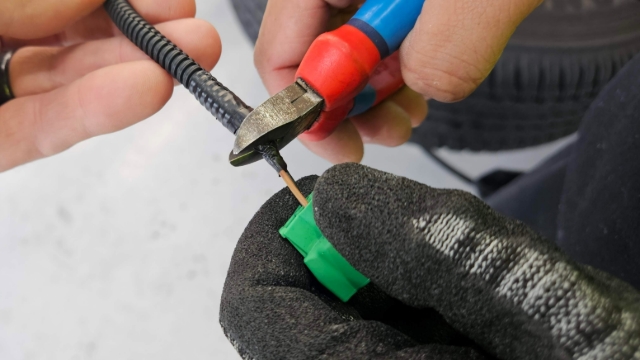

<p>Cut longest length close to the connector</p>

Cut longest length close to the connector

3
Step 3 of 6

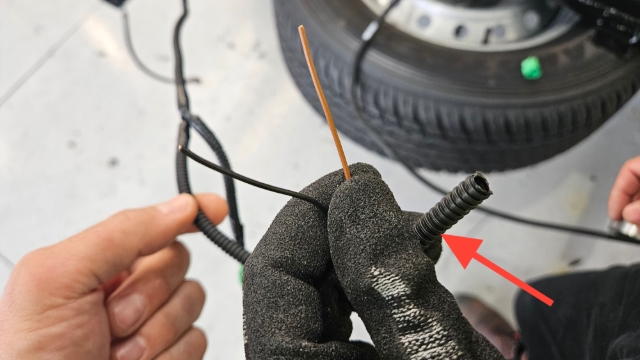

<p>Trim tubing back 50mm&nbsp;</p>

Trim tubing back 50mm

4
Step 4 of 6

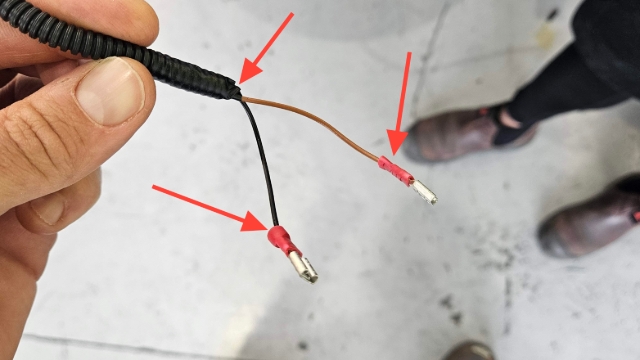

<p>Crimp 2 x Female Spade connectors onto each core, tape tubing secure with insulation tape&nbsp;</p>

Crimp 2 x Female Spade connectors onto each core, tape tubing secure with insulation tape

5
Step 5 of 6

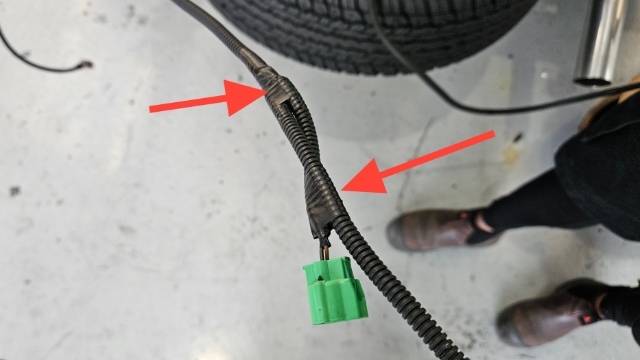

<p>Tape short connector to main trunk allowing loom to be secured once body fitted</p>

Tape short connector to main trunk allowing loom to be secured once body fitted

6
Step 6 of 6

Ready to connect to drawer/faceplate connector
