Fuel Filler, Silverado 2500 (MY22+)

Knowby

Fuel Filler, Silverado 2500 (MY22+)

1

Step 1 of 17

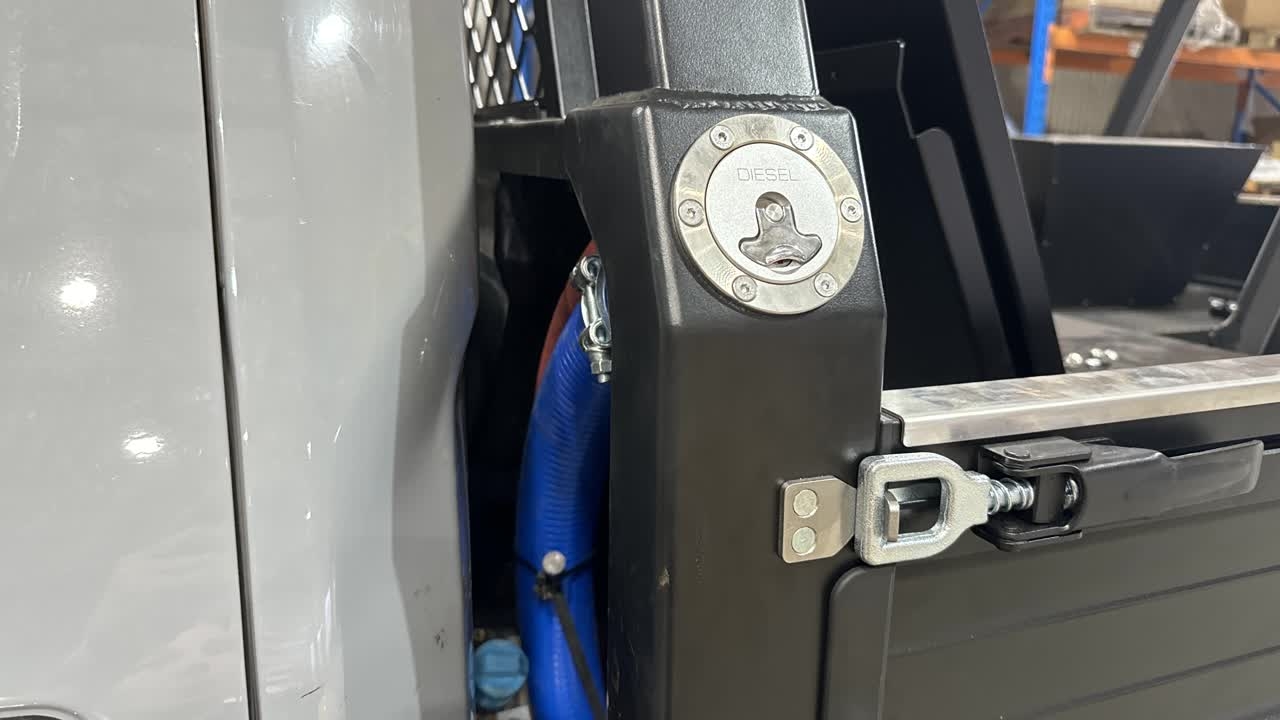

Looks like this when done

2

Step 2 of 17

<p><strong>Tools Required</strong></p>
<ul>
<li>Wire Cutters</li>
<li>Sockets; 7, 8, 10mm</li>
<li>Heavy Duty Scissors</li>
</ul>

Tools Required

Wire Cutters
Sockets; 7, 8, 10mm
Heavy Duty Scissors

3

Step 3 of 17

M10, remove the AdBlue hoses from the bracket

4

Step 4 of 17

M7 on hose clamps. remove the original filler neck

5

Step 5 of 17

M7, Remove the fuel hose from the fuel tank

6

Step 6 of 17

The original filler pipe will look like this

7

Step 7 of 17

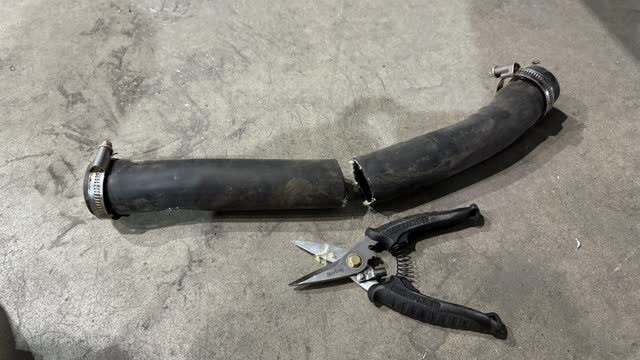

<p>Cut the hose in half</p>

Cut the hose in half

8

Step 8 of 17

Blue hose 550mm Stainless reducer with elbow Red hose 700mm

9

Step 9 of 17

Connect the hose and re-tighten the hose clamps

10

Step 10 of 17

Identify the original breather hose

11

Step 11 of 17

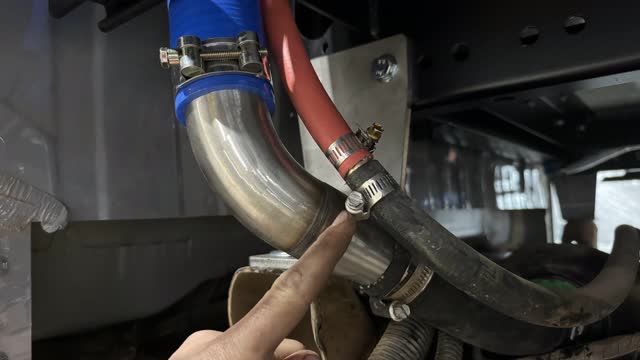

<p>Connect and tighten the breather hose</p>

Connect and tighten the breather hose

12

Step 12 of 17

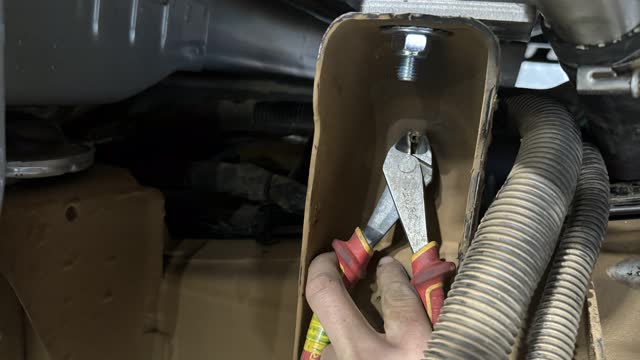

<p>Trim this plastic plug it is holding the ad blue hoses</p>

Trim this plastic plug it is holding the ad blue hoses

13

Step 13 of 17

The ad blue hoses should now be on the front side of the mount

14

Step 14 of 17

Position the add blue hoses approximately here

15

Step 15 of 17

Use the supplied bracket to mount the ad blue hoses

16

Step 16 of 17

Identify the diff breather hose

17

Step 17 of 17

Zip tie everything up together neatly
