Fuel Filler, Next-Gen Ranger & All-New Amarok, Dual Cab
1
Step 1 of 14

It will look like this when complete

2
Step 2 of 14
<p><strong>Tools Required</strong></p> <ul> <li>Sockets: 7mm</li> <li>Zip Ties</li> <li>Wire Cutters</li> </ul>

Tools Required

  • Sockets: 7mm
  • Zip Ties
  • Wire Cutters
3
Step 3 of 14
<p><strong>Pro Tip</strong> The most common mistake when fitting a fuel filler, is a kink. Whether it is the main delivery hose of a breather, it must not have a kink. Take particular care.</p>

Pro Tip The most common mistake when fitting a fuel filler, is a kink. Whether it is the main delivery hose of a breather, it must not have a kink. Take particular care.

4
Step 4 of 14

Identify the original filler neck

5
Step 5 of 14

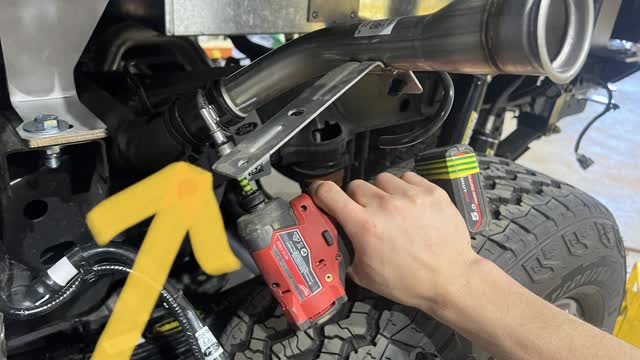

<p>7mm socket to remove the hose clamp for the filler neck</p>

7mm socket to remove the hose clamp for the filler neck

6
Step 6 of 14

Remove the steel filler neck it is not reused

7
Step 7 of 14

Connect the fuel hose to the stainless reducer. Ensure the hose is not kinked.

8
Step 8 of 14

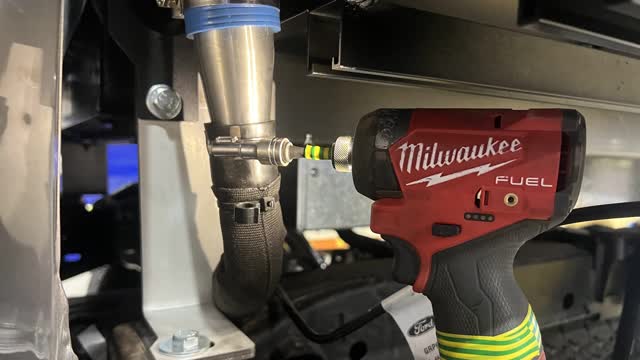

<p>7mm socket. Tighten the hose clamp.</p>

7mm socket. Tighten the hose clamp.

9
Step 9 of 14
<p>If the vehicle had a tub, you will have this harness. Remove the extra clips from it</p>

If the vehicle had a tub, you will have this harness. Remove the extra clips from it

10
Step 10 of 14

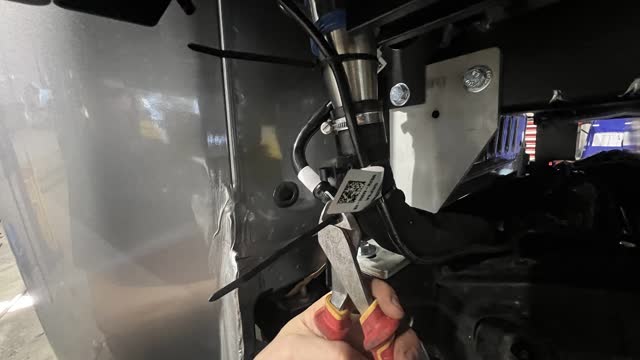

<p>Zip tie everything together</p>

Zip tie everything together

11
Step 11 of 14

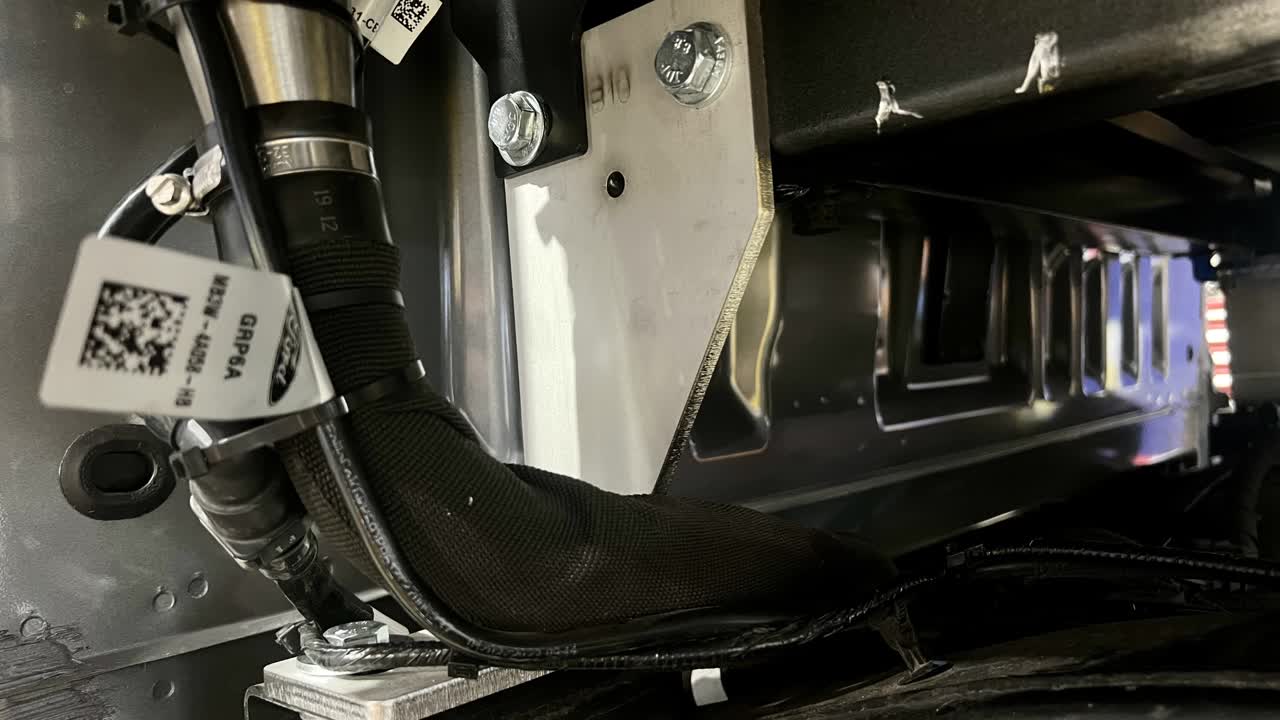

It should look like this

12
Step 12 of 14

Identify the fuel filler, release harness

13
Step 13 of 14

Zip tie the harness, so it is a long the chassis

14
Step 14 of 14

Done! It should look like this
