ROOF RACK, TRANSIT

1

Step 1 of 8

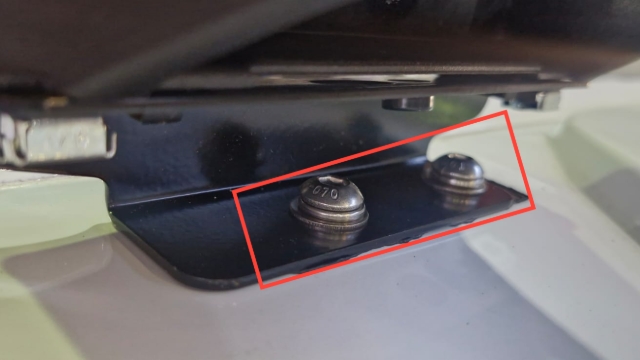

<p>Fit the brackets to the roof using M6 button head bolts and an M6 spring washer and M6 flat head washer</p>

Fit the brackets to the roof using M6 button head bolts and an M6 spring washer and M6 flat head washer

2

Step 2 of 8

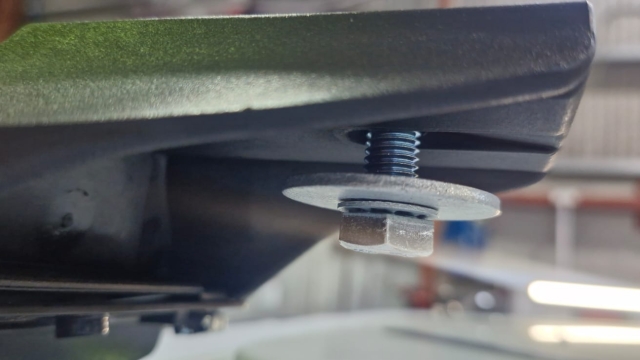

<p>Insert an M8 x 35 bolt with an M8 penny washer.</p>

Insert an M8 x 35 bolt with an M8 penny washer.

3

Step 3 of 8

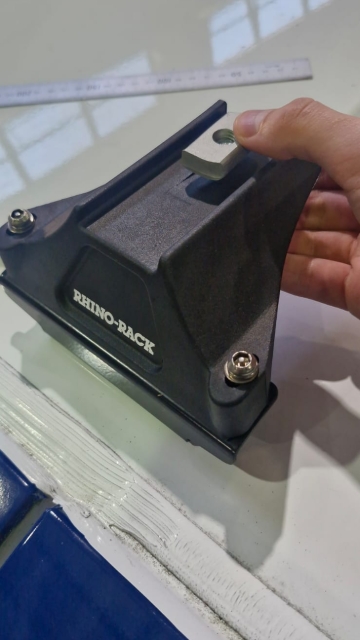

<p>Fit a strut nut on top of the bolt.</p>

Fit a strut nut on top of the bolt.

4

Step 4 of 8

Apply the rubber to the low profile bar.

5

Step 5 of 8

Fit the bar to the brackets.

6

Step 6 of 8

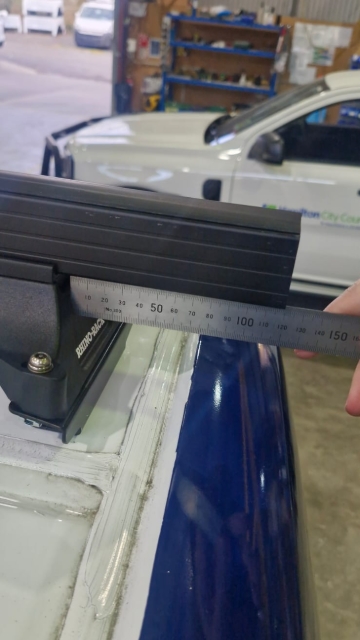

<p>Ensure both sides are equal in length. </p>

Ensure both sides are equal in length.

7

Step 7 of 8

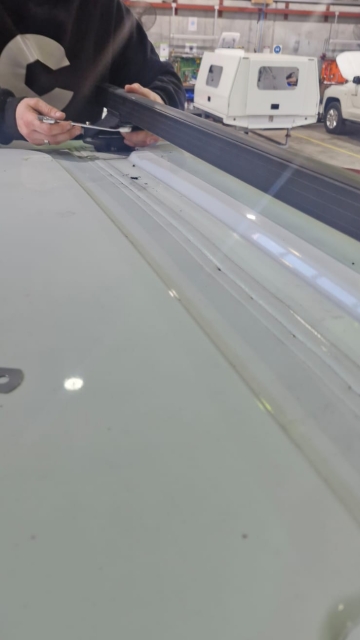

<p>Tighten the bar to the bracket.</p>

Tighten the bar to the bracket.

8

Step 8 of 8

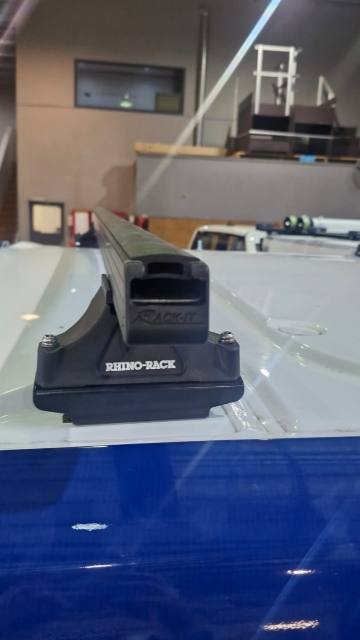

Fit the caps onto the low-profile bar.

Do the same with the 2 other racks.
