Fit "Flared" Mud Guard
1
Step 1 of 15

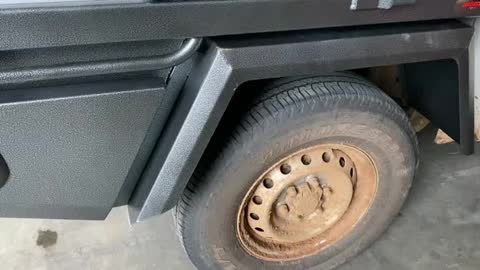

Should look like this when done.

Notice that the guard is centred nicely around the wheel.

2
Step 2 of 15
<p><strong>Tools Required</strong></p> <ul> <li>Loctite (medium strength - Blue)</li> <li>13mm</li> <li>10mm</li> </ul>

Tools Required

  • Loctite (medium strength - Blue)
  • 13mm
  • 10mm
3
Step 3 of 15

IF job has rear Toolboxes, prefit them loosely (so you can still slide them forward or back)

4
Step 4 of 15

IF has a toolbox, remove this low fastener

5
Step 5 of 15

Find the pack of supplied Fasteners

6
Step 6 of 15

Apply Loctite to threads

7
Step 7 of 15

Unspin the "Channel Nuts", and line them up parallel with the mud guard

8
Step 8 of 15

Lift into place

9
Step 9 of 15

Push "Up and Rotate", will lock the channel nuts up into the channel rails.

10
Step 10 of 15

Centre the guard on wheel

Push it forward or back if required.

11
Step 11 of 15

Fit the lower fastener to the toolbox.

Don't tighten it yet.

Drill if required (Slot it to suit)

12
Step 12 of 15

Tighten guard to Tray, 13mm

13
Step 13 of 15

Tighten lower fastener, 10mm

14
Step 14 of 15

Done

15
Step 15 of 15

Don’t forget to tighten toolbox!

(We had it loose so we could position the guard)
