xFuel Filler, DMax D-Cab Fixed Canopy

Knowby

xFuel Filler, DMax D-Cab Fixed Canopy

1

Step 1 of 10

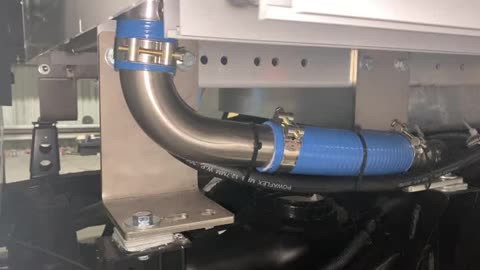

Will look like this when completed

2

Step 2 of 10

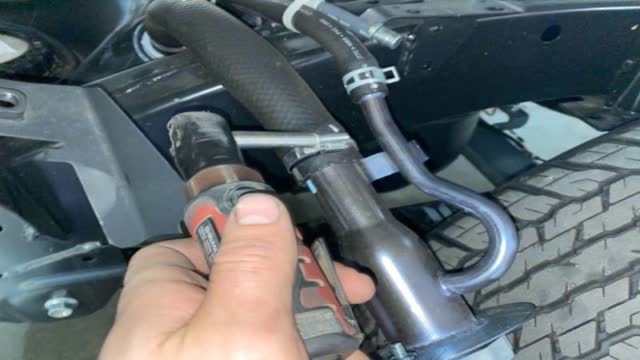

<p>Remove original filler, 7mm</p>

Remove original filler, 7mm

3

Step 3 of 10

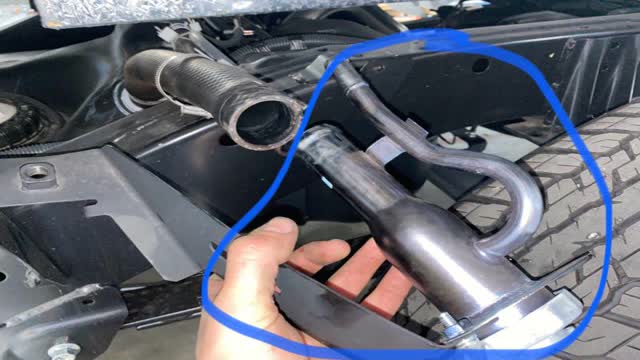

<p>Remove it, it is not reused</p>

Remove it, it is not reused

4

Step 4 of 10

Rotate pipe towards cabin

5

Step 5 of 10

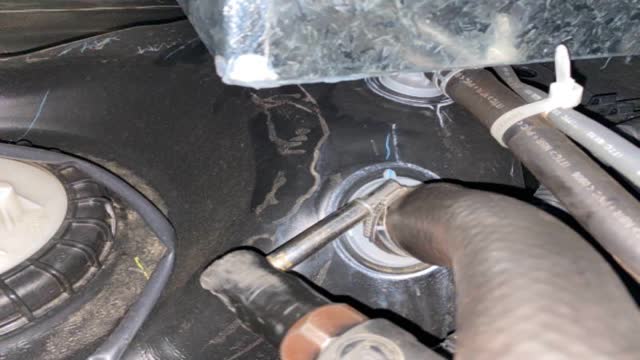

<p>Tighten clamp to tank</p>

Tighten clamp to tank

6

Step 6 of 10

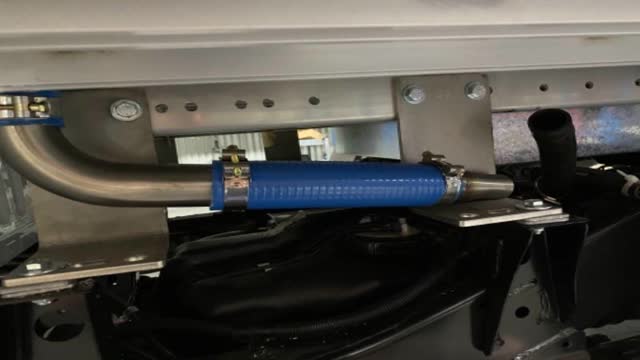

<p>Should look like this</p>

Should look like this

7

Step 7 of 10

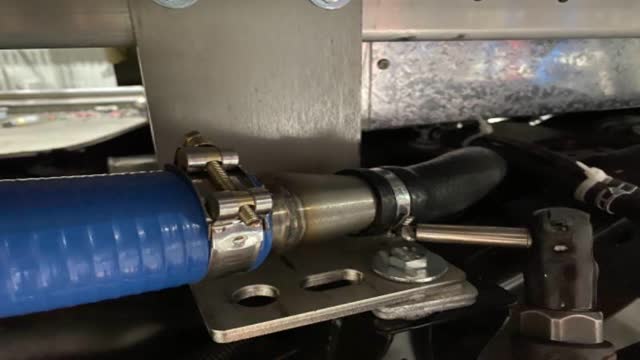

<p>Connect then Tighten original clamp</p>

Connect then Tighten original clamp

8

Step 8 of 10

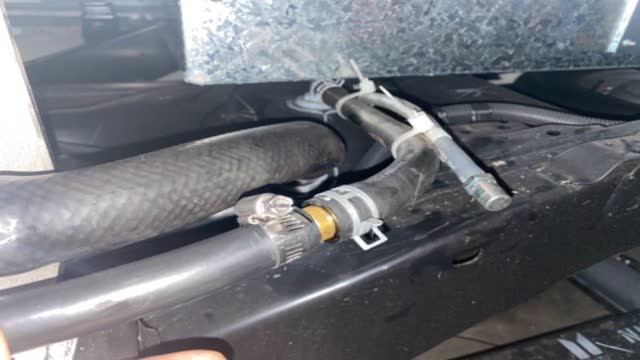

<p>Connect breather</p>

Connect breather

9

Step 9 of 10

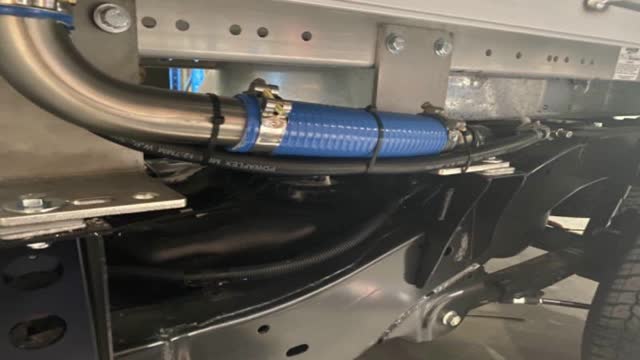

<p>Zip tie neatly</p>

Zip tie neatly

10

Step 10 of 10

Will look like this when completed
