Fuel Filler, "V3 Headboard", "RG" DMax-BT50, Dual Cab

Knowby

Fuel Filler, "V3 Headboard", "RG" DMax-BT50, Dual Cab

1

Step 1 of 13

Looks like this when completed on a Cab Chassis (Tub model is mounted slightly higher)

2

Step 2 of 13

Identify the supplied bracket

3

Step 3 of 13

Loosely fit the front mud guard

4

Step 4 of 13

Fit up the supplied bracket

5

Step 5 of 13

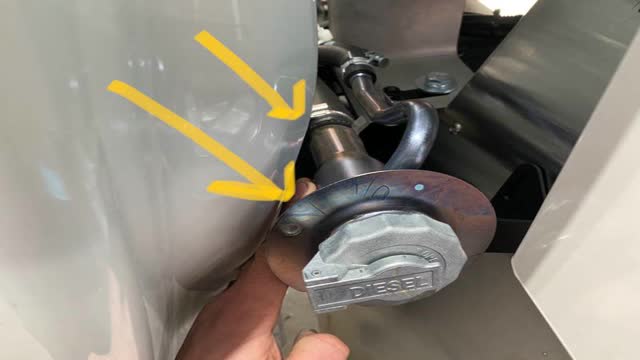

<p>Make sure there is nice gap between the filler and the back of vehicle cabin</p>

Make sure there is nice gap between the filler and the back of vehicle cabin

6

Step 6 of 13

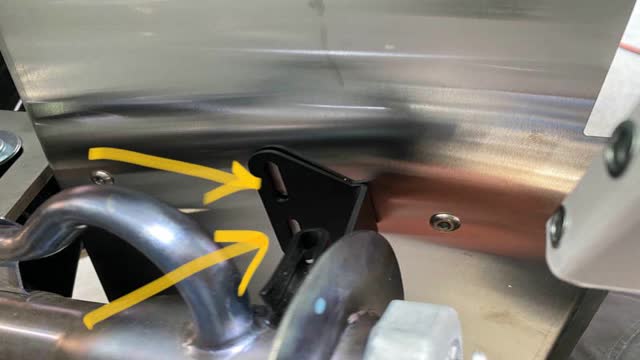

<p>Use a pen to mark where the bracket meets the mud guard</p>

Use a pen to mark where the bracket meets the mud guard

7

Step 7 of 13

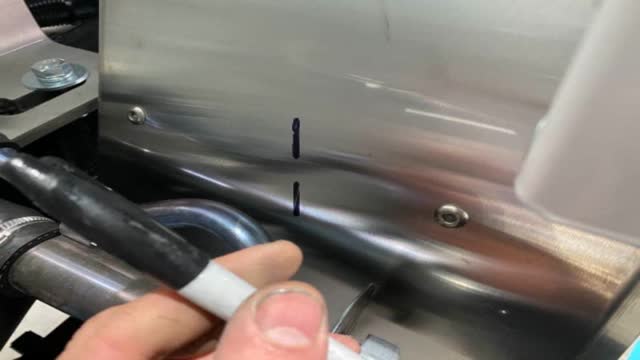

<p>Looks like this</p>

Looks like this

8

Step 8 of 13

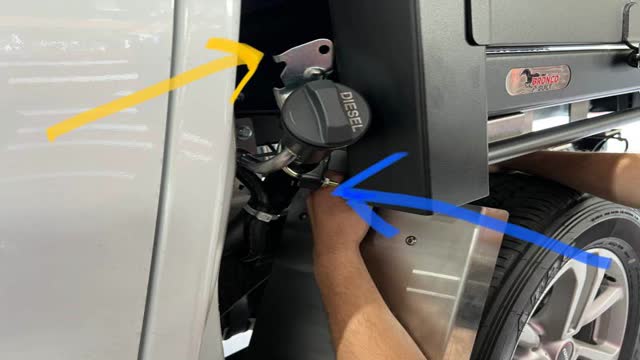

<p>This is the “Tub” model.</p>
<p>Note it is mounted higher on the mud guard (blue arrow) and has an extra mounting bracket on top (yellow arrow)</p>

This is the “Tub” model.

Note it is mounted higher on the mud guard (blue arrow) and has an extra mounting bracket on top (yellow arrow)

9

Step 9 of 13

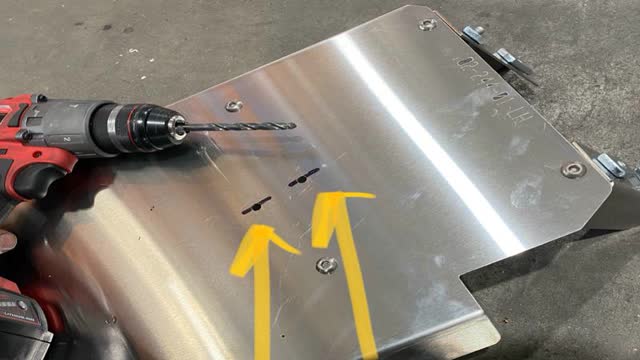

<p>Drill the holes. 7mm is a good size.</p>

Drill the holes. 7mm is a good size.

10

Step 10 of 13

Re-Fit and Tighten

11

Step 11 of 13

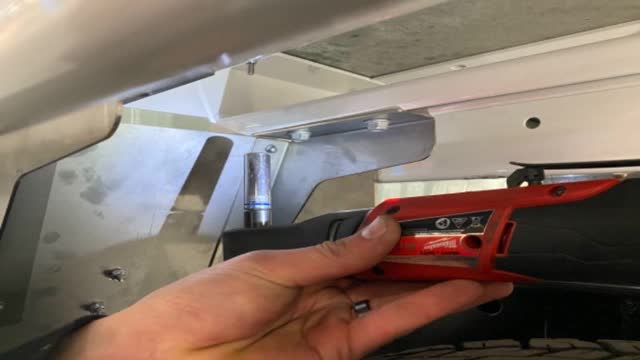

<p>Tighten guard, 13mm</p>

Tighten guard, 13mm

12

Step 12 of 13

Looks like this when done (on a Cab Chassis)

13

Step 13 of 13

Looks like this when done (on a Tub Model)
