TC - Installing Kiwi Rail Step
TC-KR-REARSTEP
TC-KR-REARSTEP
1
Step 1 of 7

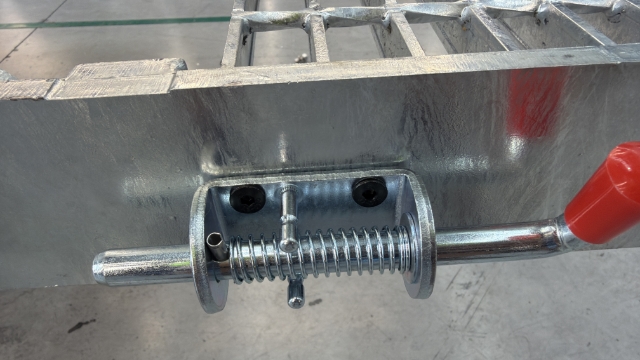

<p>Install dead bolt to step using 4 x M6x25 CSK with M6 nyloc nuts</p>

Install dead bolt to step using 4 x M6x25 CSK with M6 nyloc nuts

2
Step 2 of 7

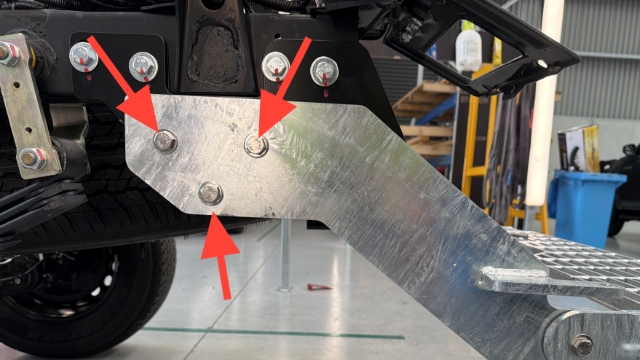

<p>Install side pieces to towbar using M12x45 Hex and a M12 Nyloc nut with a M12 HD washer either side </p>

Install side pieces to towbar using M12x45 Hex and a M12 Nyloc nut with a M12 HD washer either side

3
Step 3 of 7

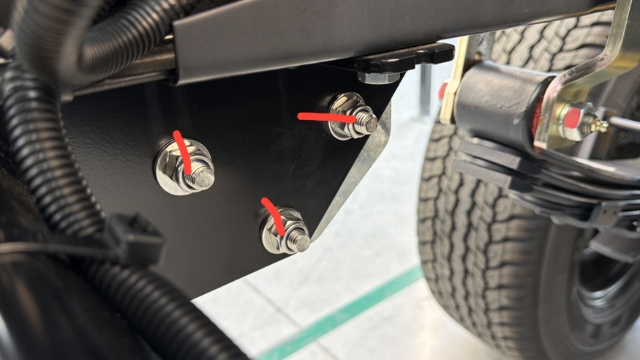

<p>Torque to 75 Nm</p><p>Paint mark each bolt once&nbsp;complete</p><p> </p><p>​<klink id="b848cee1-4bdf-462e-a939-3a66477b1ded" step-id="d29b1157-21c8-4fd3-8758-b8326e2ba4f2">Using a Torque Wrench at Utemaster</klink>​</p>

Torque to 75 Nm

Paint mark each bolt once complete

​Using a Torque Wrench at Utemaster​

4
Step 4 of 7

Note: Leave one side loose to make the next part easier

5
Step 5 of 7

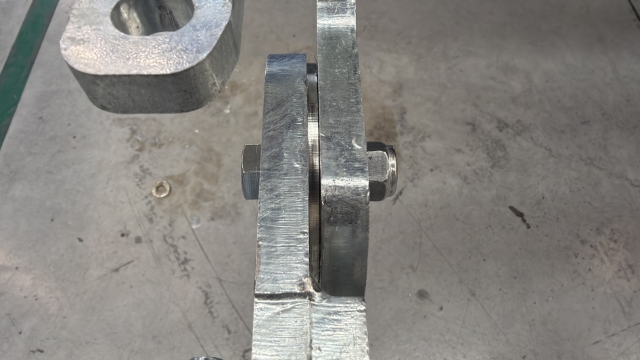

<p>Install step to side pieces using M12x45 Hex and a M12 Nyloc nut, ensure big circle washer (PRT-011407) is in between the step and the side pieces</p><p></p><blockquote><p><strong>CQC:</strong> When tightening step ensure bolts are tight but step can move freely</p></blockquote><p></p>

Install step to side pieces using M12x45 Hex and a M12 Nyloc nut, ensure big circle washer (PRT-011407) is in between the step and the side pieces

CQC: When tightening step ensure bolts are tight but step can move freely

6

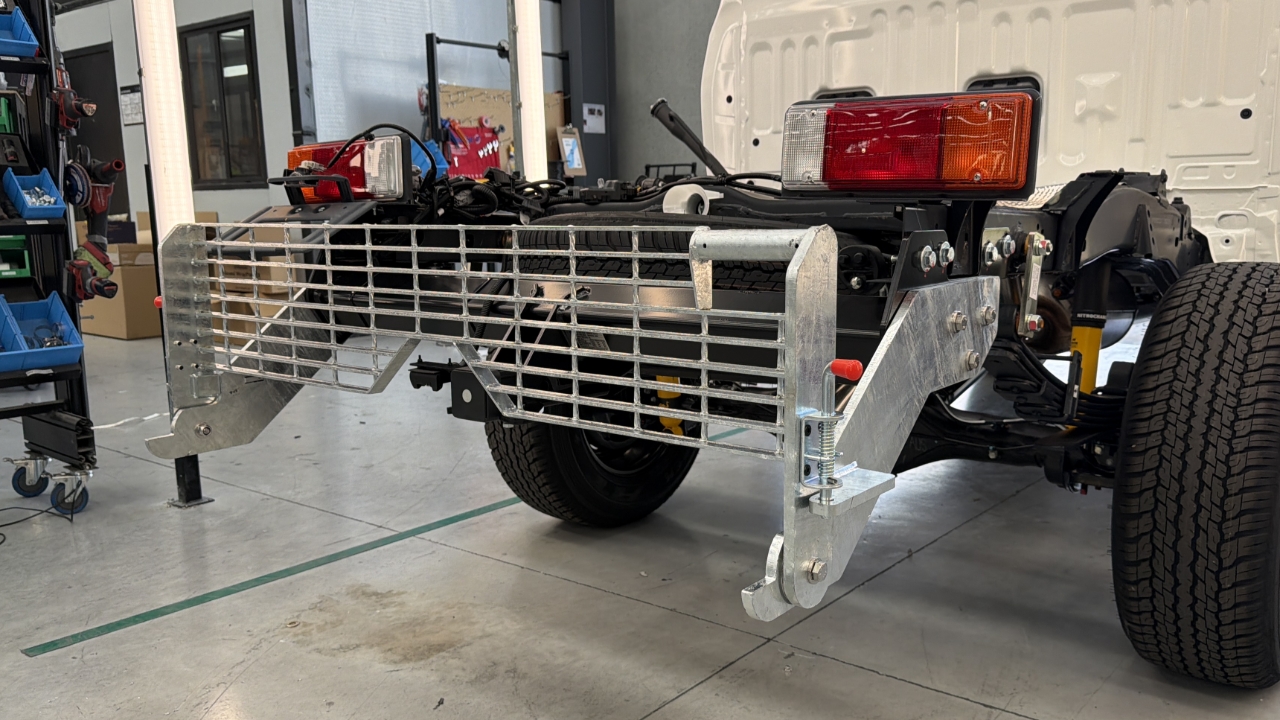

Step 6 of 7

Check step assembly side latches lock in place and step moves freely up and down

7
Step 7 of 7

Check can take load
