Geotextile sample folding SOP
First, ensure the preparation area is clean.
Mark the machine direction at the leading edge of the roll.
Cut 3m x 3m sample.
First, ensure the preparation area is clean.
Mark the machine direction at the leading edge of the roll.
Cut 3m x 3m sample.
1
Step 1 of 4Ensure the preparation area is clean.
Mark the machine direction at the corner of the roll starting edge.
Cut 3m x 3m sample.
Fold MD over in thirds, and then CD in thirds, removing wrinkles and creases.
A folded sample will be 1m x 1m.
Stack samples onto smooth pallet, making sure samples do not overhang pallet edges.
Place cover panel on top.
2
Step 2 of 4

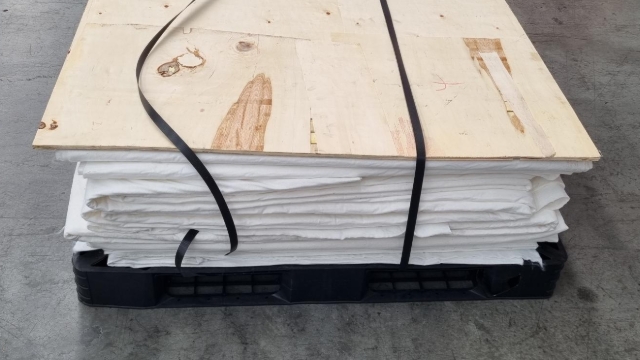

Apply strapping
3
Step 3 of 4

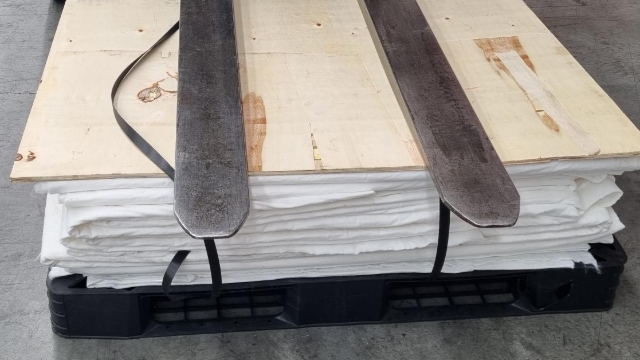

Use hoist or similar weight to evenly compress the stack.
4
Step 4 of 4

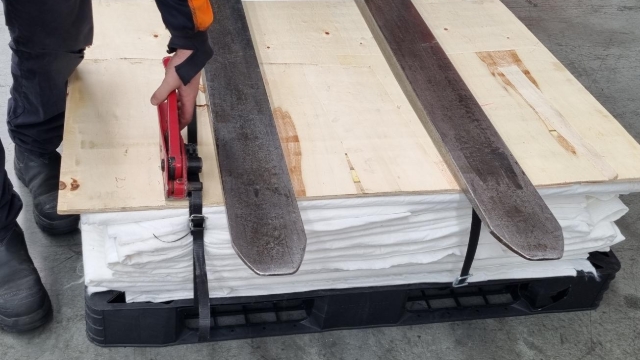

Tension the strapping
