Changing a Trailcore Mudflap

Knowby

Changing a Trailcore Mudflap

1

Step 1 of 7

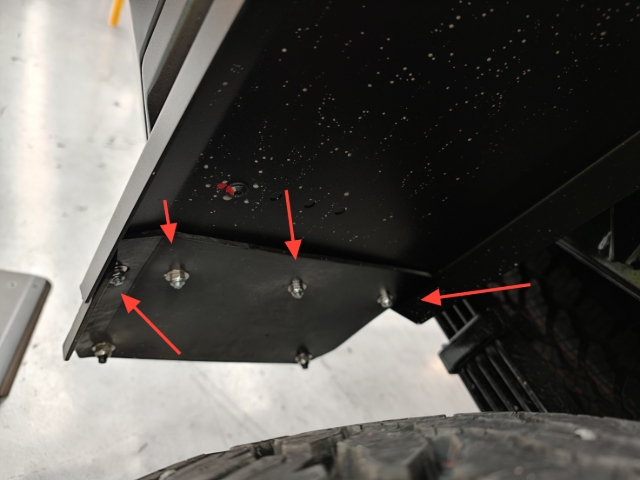

<p>Remove the 4 M6 nyloc nuts and washers </p>

Remove the 4 M6 nyloc nuts and washers

2

Step 2 of 7

Remove mudflap

3

Step 3 of 7

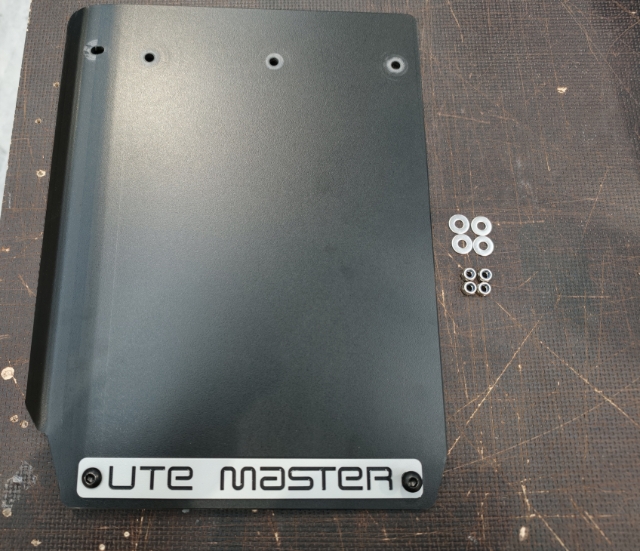

<p>You will need 4x M6 nyloc nuts and 4x M6 flat washers to install extended mudflap</p>

You will need 4x M6 nyloc nuts and 4x M6 flat washers to install extended mudflap

4

Step 4 of 7

Install mudflap to studs

5

Step 5 of 7

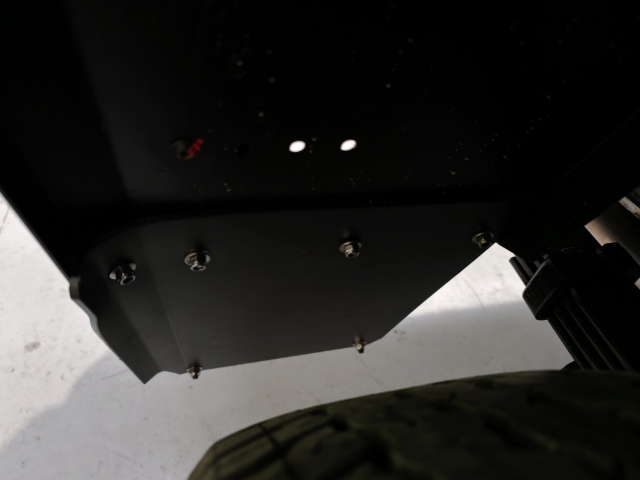

<p>Tighten the M6 nyloc nuts</p>

Tighten the M6 nyloc nuts

6

Step 6 of 7

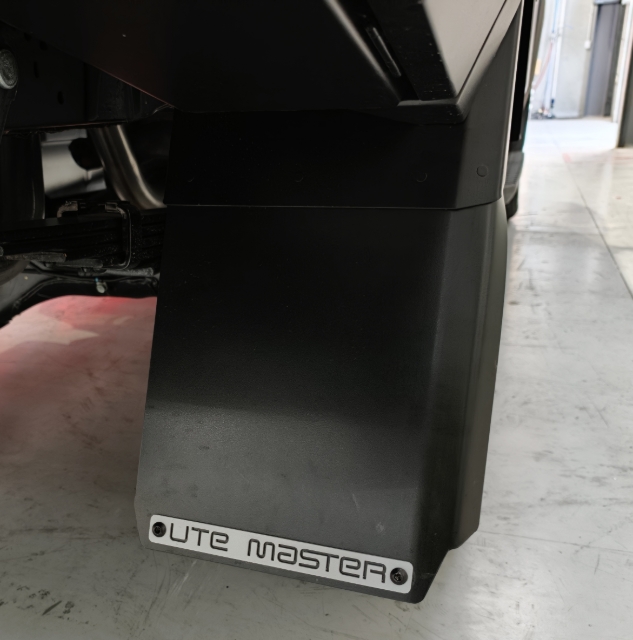

Ensure mudflap is secure onto mudguard

7

Step 7 of 7
