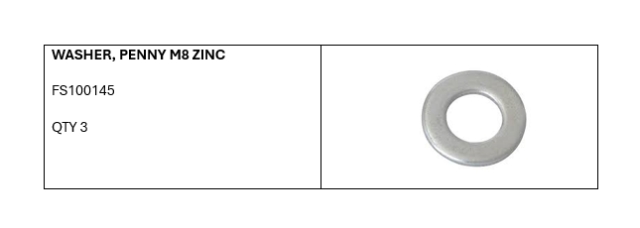

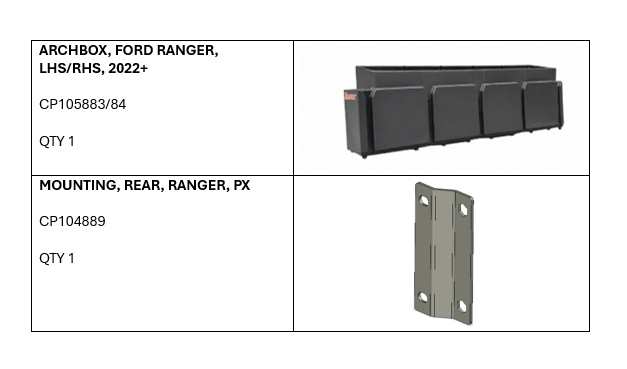

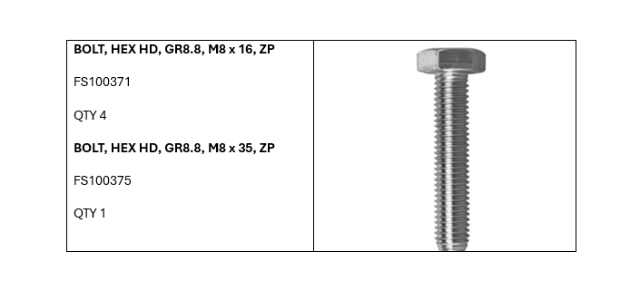

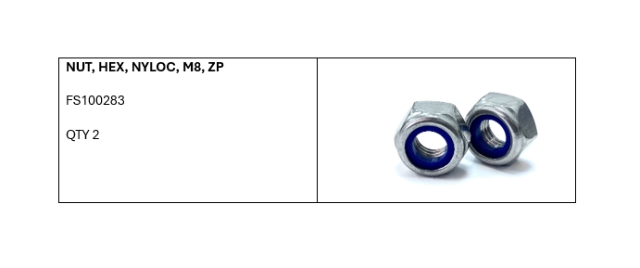

Components List
Components List
Components List
Components List

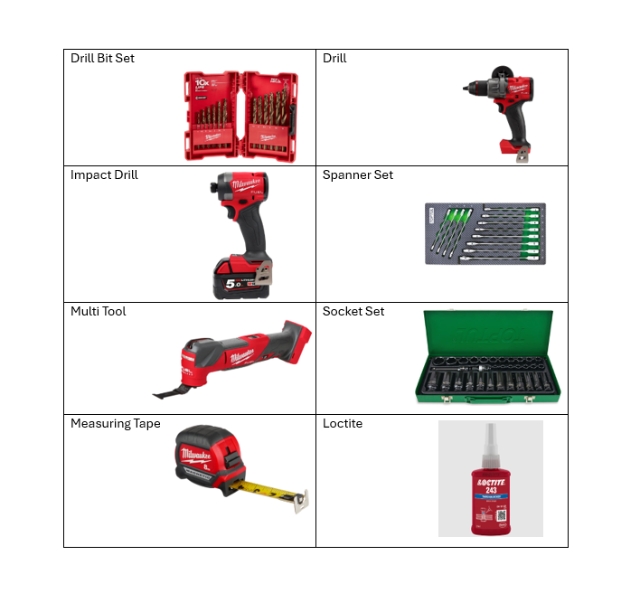

Tools List
Trim the side down to fit.
Trim off the tabs on the bottom.

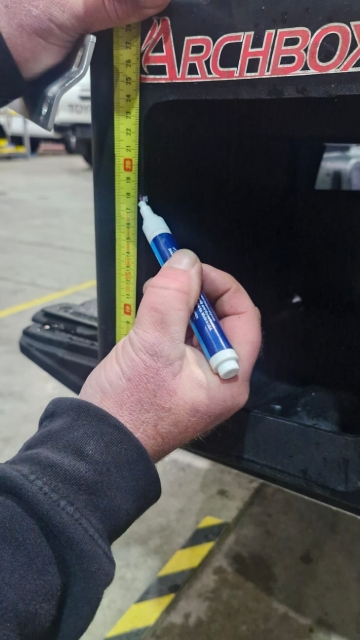

Measure 180mm from the bottom of the arch box and place a mark.

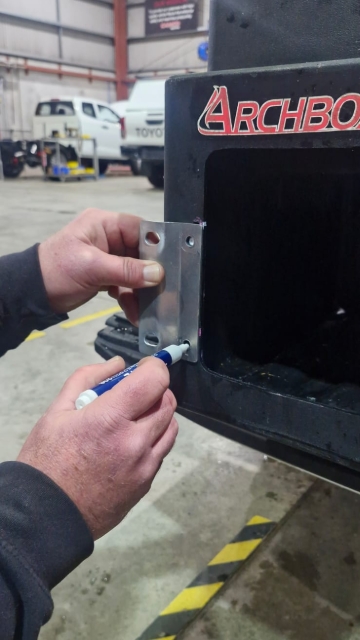

Place the bracket on the mark and closest to the edge as shown. Mark the holes for drilling.
Drill the holes.

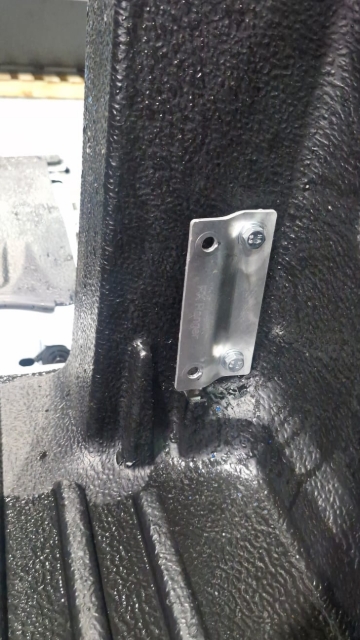

Fit the bracket to where the tie down point was.
Fit the Archbox to the bracket using an M8 x 20mm hex head bolt with a m8 flat head washer.
Fit an M8 nyloc nut onto the bolt.
For an easier way to attach the nut to the bolt, do the way shown in the video.
Drill the hole out at the front of the archbox to fit to the wellside.

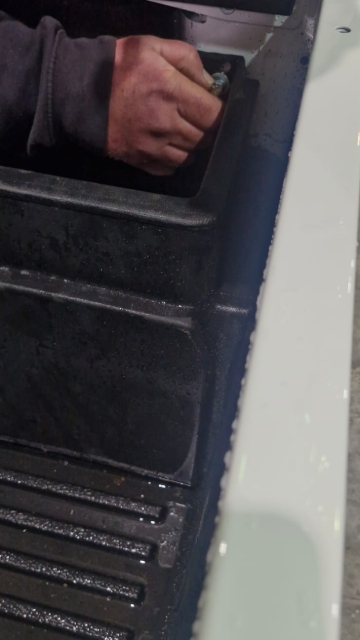

Place an M8 Hex Head with an M8 washer at the front of the arch box to attach it to the wellside
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If you have issues with instructions and need assistance, please contact.
+64 21 349 001
If the hard copy does not arrive, please contact us.
0800 663 500
