Knowby Aurora Dairies Pty Ltd
Knowby
Pressure cleaner start up and Maintenace
1
Step 1 of 6

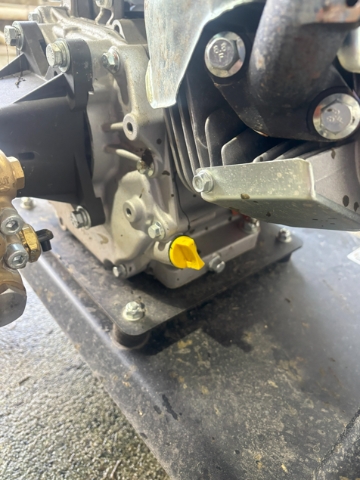

<p>Before using always check the oil level, to check unscrew the yellow cap.</p>

Before using always check the oil level, to check unscrew the yellow cap.

2
Step 2 of 6

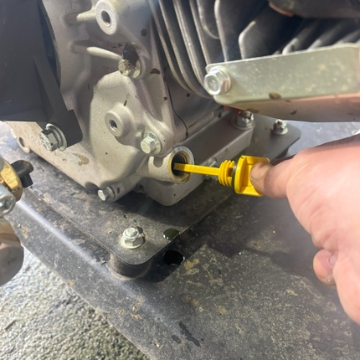

<p>Pull the dip stick out of the engine and make sure it has the right amount of oil, if it does not have enogh oil do not use! fill with 15W-40 engine oil.</p>

Pull the dip stick out of the engine and make sure it has the right amount of oil, if it does not have enogh oil do not use! fill with 15W-40 engine oil.

3
Step 3 of 6

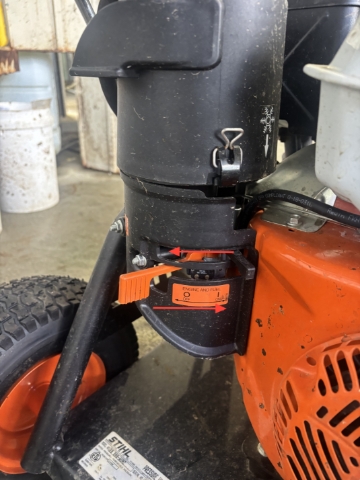

<p>To start the pressure cleaner move to orange tag to the on position and move the black tag to the left position this the choke, you should only need to use it if the engine is cold.</p>

To start the pressure cleaner move to orange tag to the on position and move the black tag to the left position this the choke, you should only need to use it if the engine is cold.

4
Step 4 of 6

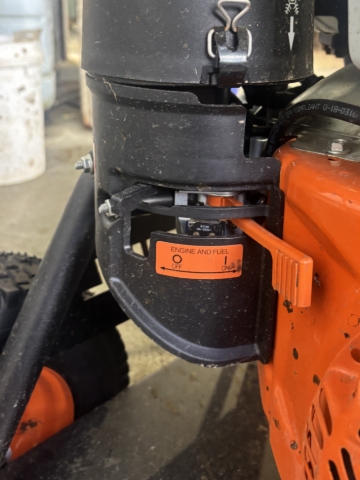

<p>It should look like this. once the engine is running move the choke back the position on the right</p>

It should look like this. once the engine is running move the choke back the position on the right

5
Step 5 of 6

Now you pull start the engine.

6
Step 6 of 6

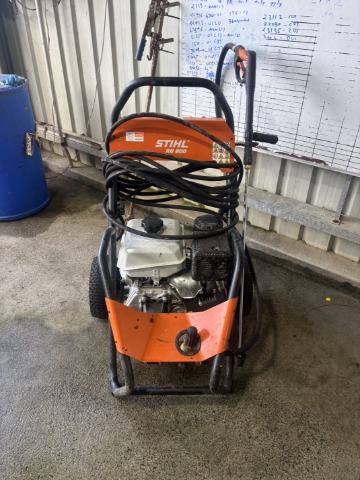

<p>Once you are finished with it make sure you pack it up, make sure all the hoses are neatly wrapped up, they can be a trip hazard!</p>

Once you are finished with it make sure you pack it up, make sure all the hoses are neatly wrapped up, they can be a trip hazard!
