Radar Remounting, Ford F150, 2023+
1
Step 1 of 16

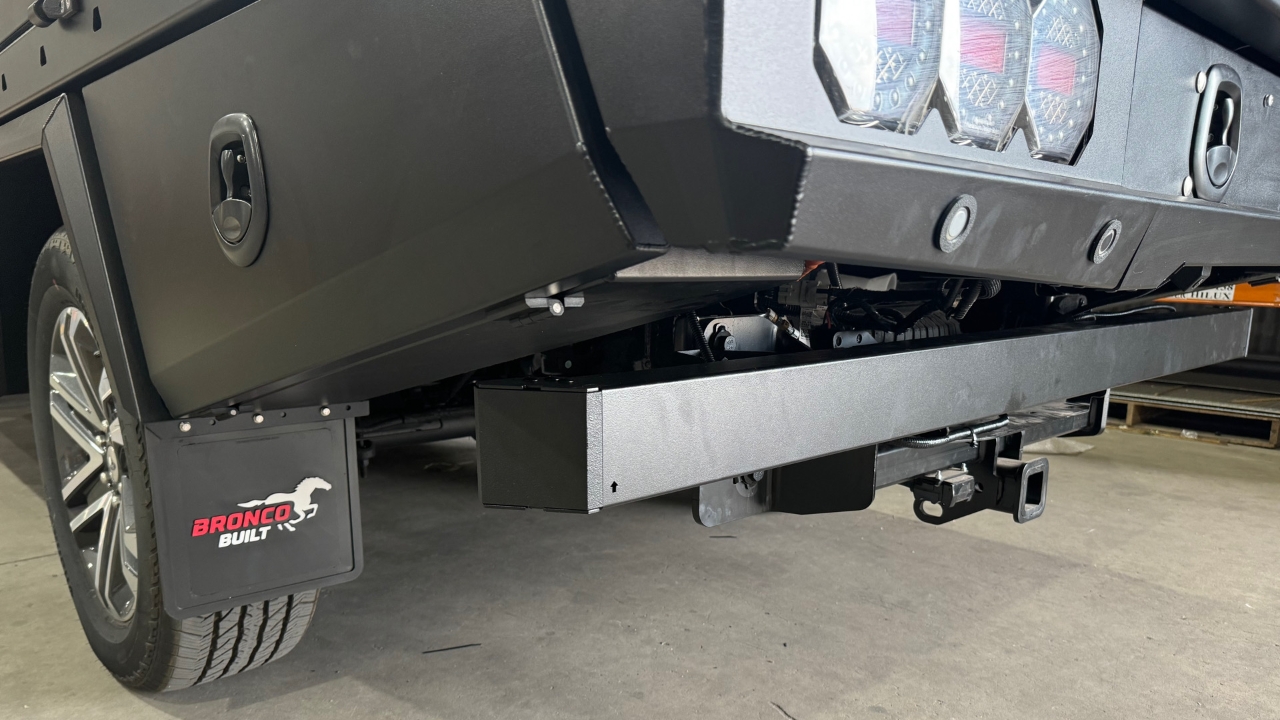

It should look like this when done

2
Step 2 of 16

Remove these brackets from vehicle, 13mm

3
Step 3 of 16

Identify the supplied radar bracket. it should have "F150"

4
Step 4 of 16

identify the supplied radar holders. Part number: BSB041P

5
Step 5 of 16

Fit to vehicle

6
Step 6 of 16

notice that the 3D printed parts say "PASSENGER" and "DRIVER". Start with "PASSENGER" to the top.

7
Step 7 of 16

Put the radar in. Plug needs to be to the bottom side as shown

8
Step 8 of 16

Fit the retaining clips?

9
Step 9 of 16

Fit to the radar bar. This is the passenger side.

10
Step 10 of 16

fit the supplied screws

11
Step 11 of 16

Plug in harness. push the red clip in.

12
Step 12 of 16

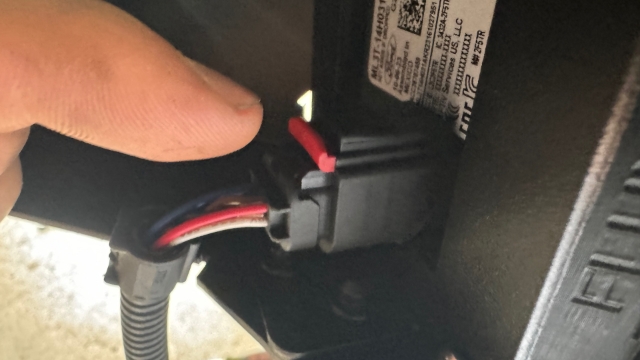

<p>The red clip shoudl be pushed in like this.</p>

The red clip shoudl be pushed in like this.

13
Step 13 of 16

Repeat for other side. Driver-side should look like this.

notice "DRIVER" is to the top, and the radar plug is on the bottom.

14
Step 14 of 16

Neatly secure all wiring with zip ties

15
Step 15 of 16

It is now complete, and will look like this

16
Step 16 of 16

It will work. When something is in its blindspot, it will flash yellow in the mirror.
