Using a Rising Plate Meter
1
Step 1 of 12

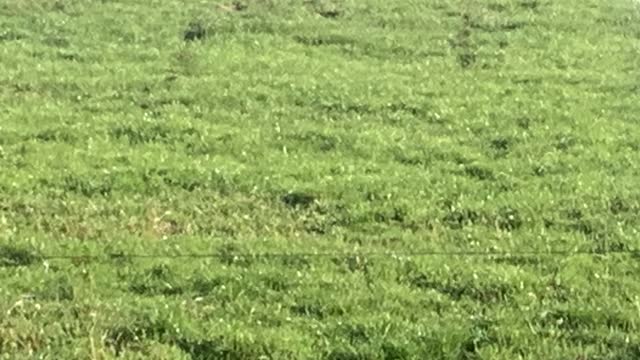

<p>It’s important we know how much grass we have in a paddock or on the farm. Only then can we guarantee cows get fed enough.</p>

It’s important we know how much grass we have in a paddock or on the farm. Only then can we guarantee cows get fed enough.

2
Step 2 of 12

We measure grass in kilograms of dry matter per hectare ( kgdm/ha ). This is the weight of the grass after all moisture has been dried out of it.

3
Step 3 of 12
<p>There are various ways to measure this but here we’re talking about using a pasture meter or riding plate meter.</p>

There are various ways to measure this but here we’re talking about using a pasture meter or riding plate meter.

4
Step 4 of 12

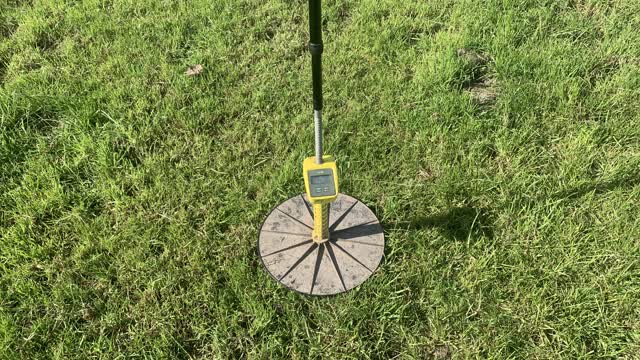

<p>They work by measuring the compressed height of pasture.
The plate stays on top of the grass and the shaft goes through the pasture to the ground.</p>

They work by measuring the compressed height of pasture. The plate stays on top of the grass and the shaft goes through the pasture to the ground.

5
Step 5 of 12

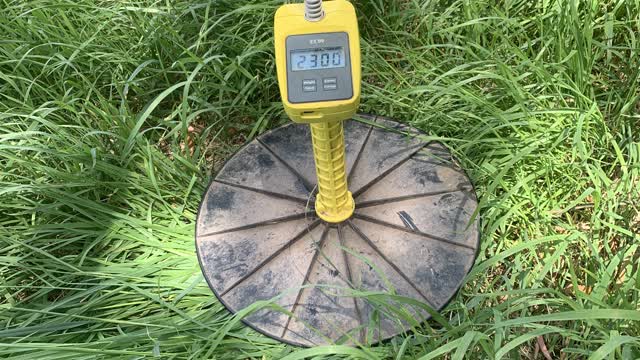

<p>The monitor uses a formula to calculate kgdm/ha based on where the plate sits ( height wise ) compared to the ground.</p>

The monitor uses a formula to calculate kgdm/ha based on where the plate sits ( height wise ) compared to the ground.

6
Step 6 of 12

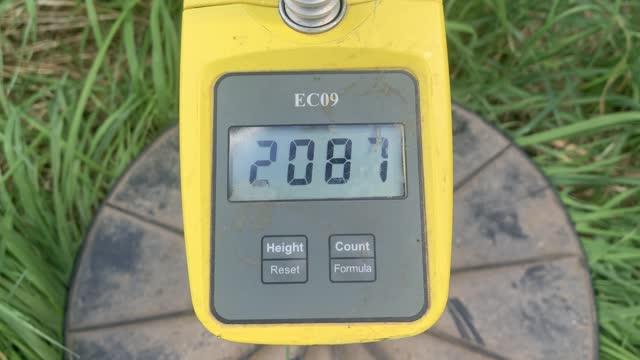

<p>You should walk the same course around the farm every time. Some people mark posts to identify the course.
Walk across the whole paddock.</p>

You should walk the same course around the farm every time. Some people mark posts to identify the course. Walk across the whole paddock.

7
Step 7 of 12
<p>Avoid wet areas, gateways and uneven surfaces. These areas tend to give you a false reading.</p>

Avoid wet areas, gateways and uneven surfaces. These areas tend to give you a false reading.

8
Step 8 of 12

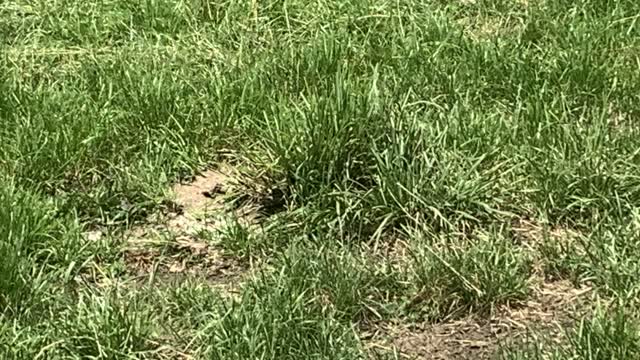

<p>Also avoid clumps. Again it will give a false reading as the cows won’t eat the clumps.</p>

Also avoid clumps. Again it will give a false reading as the cows won’t eat the clumps.

9
Step 9 of 12

When you put the plate down make sure you put it down square to the paddock.

10
Step 10 of 12

Don’t roll it like this or you will get a false reading.

11
Step 11 of 12
<p>Take at least 50 readings ( the more the better ).</p>

Take at least 50 readings ( the more the better ).

12
Step 12 of 12

When you finish you need to clean and dry the shaft. Otherwise it forms a layer of muck on it and eventually it interferes with reading.
