Cyclone 3 barrel catchment box

Cyclone

Step 1 of 13

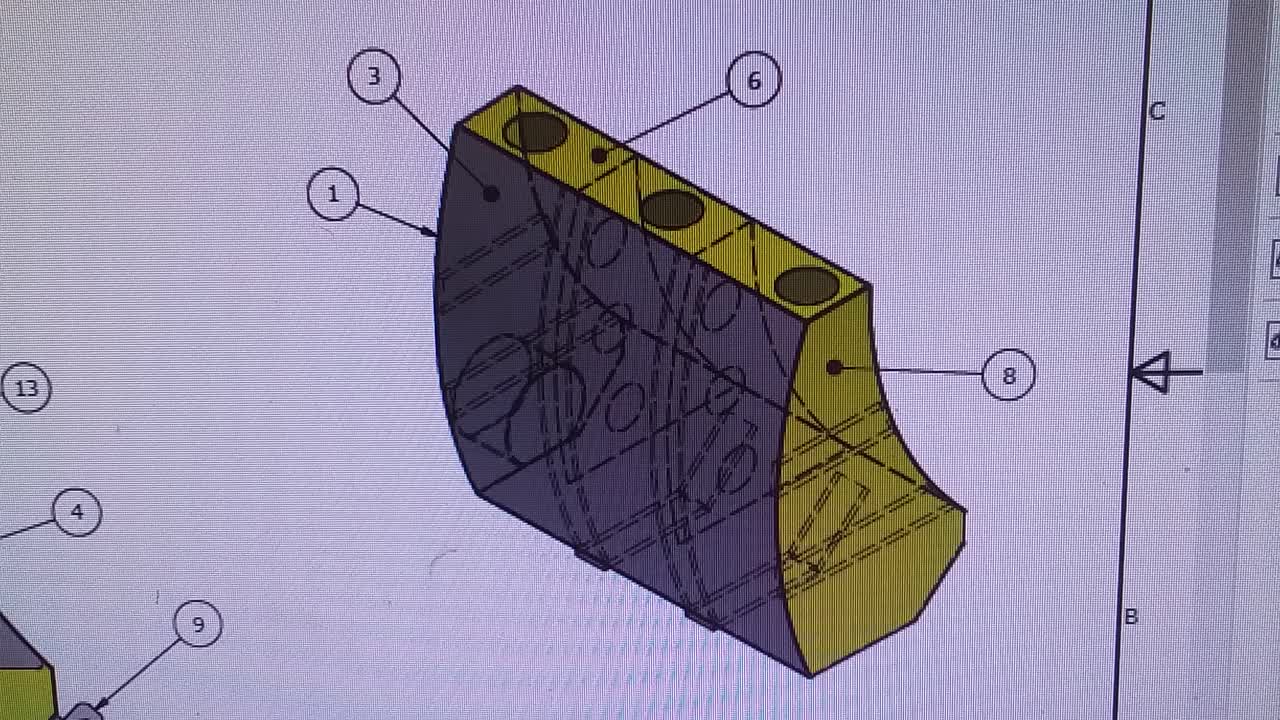

Gather current drawings and parts

Step 2 of 13

Readprocedure from start to finish before continuing

Step 3 of 13

Check that you have all the parts you need before starting the build, let leading hand know if you are unable to find a part

Step 4 of 13

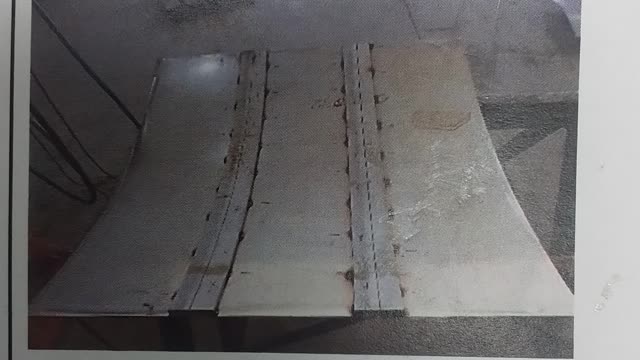

<p>Check that stainless steel rolled flatbar is the same radius as baffels before tacking them in place
Once happy tack stainless steel rolled flatbar in position on the inside of the cyclone front outside plate #2501032</p>

Check that stainless steel rolled flatbar is the same radius as baffels before tacking them in place Once happy tack stainless steel rolled flatbar in position on the inside of the cyclone front outside plate #2501032

Step 5 of 13

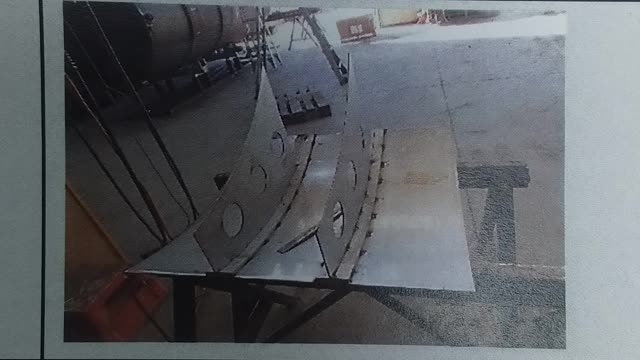

Tack baffels onto rolled flatbar making sure that the baffels are flush with the top edge of the cyclone panel

Step 6 of 13

Tack back outside plate #2501033 to baffels making sure top edge is flush with with baffel plate

Step 7 of 13

Tack in side flat bars making sure they are on the correct sides of the cyclone left and right side panels ( need to be on the inside of cyclone )

Step 8 of 13

Tack sides onto the box making sure the box is square as you go

Step 9 of 13

Once square tack your top plate on to keep the box square (Check drawing for correct orientation)

Step 10 of 13

Heavy tack beffels and all stiffners in place (No need for big welds)

Step 11 of 13

Tack on your bottom plate after all internal welds are done

Step 12 of 13

Prep outside corner to corners and weld up

Step 13 of 13

DO NOT PUT OUTSIDE STIFFNER PLATES ON UNTILL AFTER IT IS JOINED TO TOP BOX
