Prestart kubota

This should be done at the start of every day

This should be done at the start of every day

1

Step 1 of 8

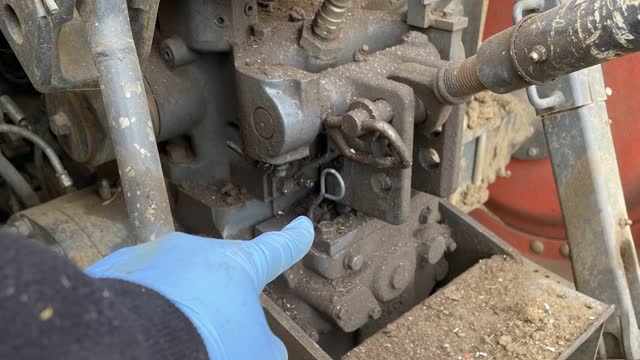

<p>Pull Hydraulic Oil dip stick out.
This is located at the back of the tactor, above the draw bar, to the left of the tip link attachment.</p>

Pull Hydraulic Oil dip stick out. This is located at the back of the tactor, above the draw bar, to the left of the tip link attachment.

2

Step 2 of 8

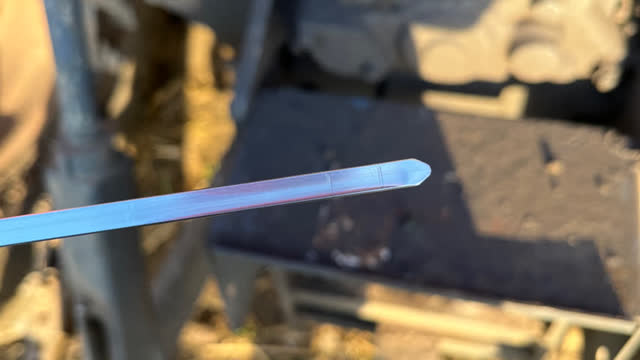

<p>It’s translucent! Look closely, make sure it is in the middle of the high and low mark .
Note: This is highly effected by how level the tractor is- the tratctor needs to be level for an accurate reading.</p>

It’s translucent! Look closely, make sure it is in the middle of the high and low mark . Note: This is highly effected by how level the tractor is- the tratctor needs to be level for an accurate reading.

3

Step 3 of 8

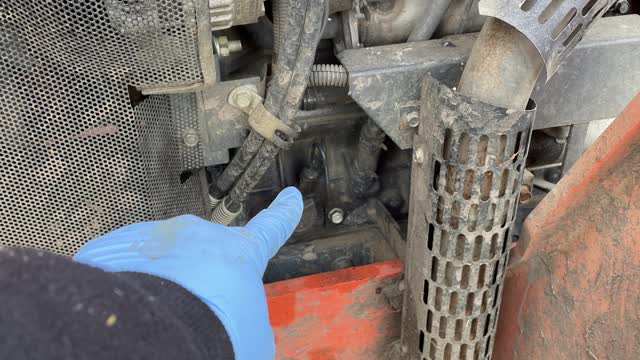

<p>Pull engine oil dip stick out.
This is located on the left hand side of the engine block.</p>

Pull engine oil dip stick out. This is located on the left hand side of the engine block.

4

Step 4 of 8

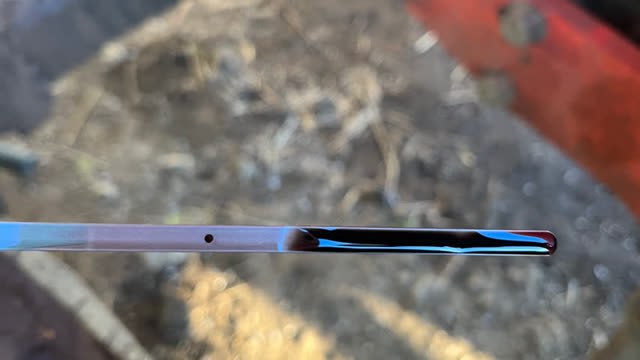

<p>Make sure it in between the high and low mark
Note: This is also effected by the angle of the tractor.</p>

Make sure it in between the high and low mark Note: This is also effected by the angle of the tractor.

5

Step 5 of 8

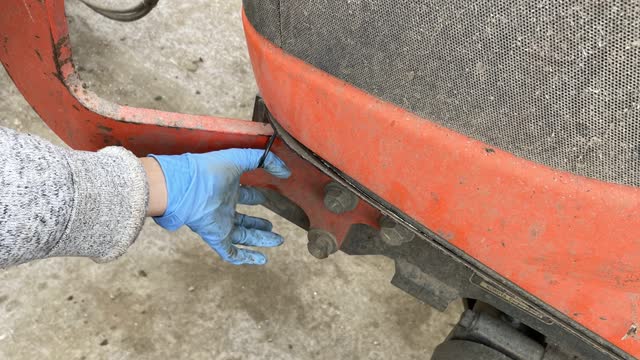

<p>Open bonnet by pulling the latch and lifting bonnet up.</p>

Open bonnet by pulling the latch and lifting bonnet up.

6

Step 6 of 8

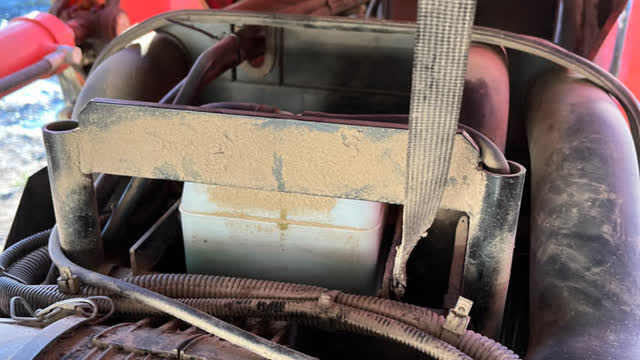

<p>Check coolant level is in between the high and low mark.</p>

Check coolant level is in between the high and low mark.

7

Step 7 of 8

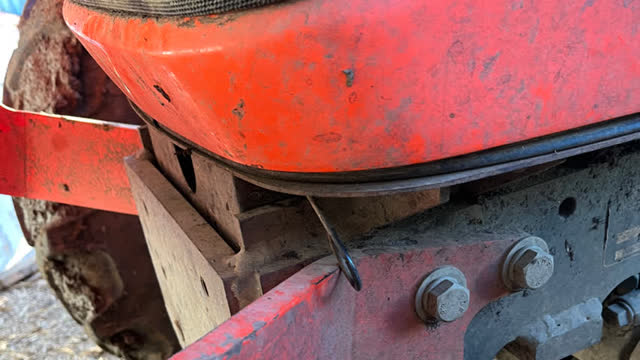

<p>Close bonnet and make sure it clips back into place</p>

Close bonnet and make sure it clips back into place

8

Step 8 of 8

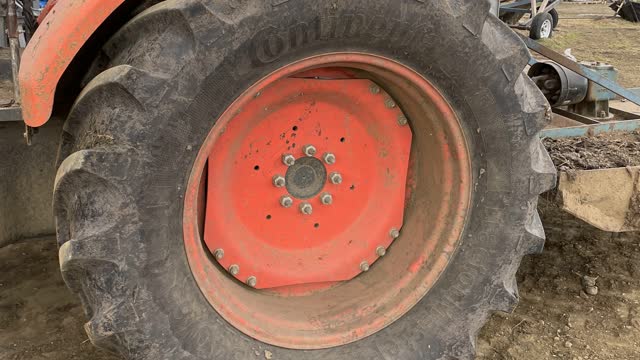

<p>Check all tyres are pumped up.
look underneath the tractor to make sure theres no fluid spills.</p>

Check all tyres are pumped up. look underneath the tractor to make sure theres no fluid spills.
