TAIT Stage (Frame Panel Removal) (Jib)
How to remove TAIT stage frame panels using the panel lifting jib.
How to remove TAIT stage frame panels using the panel lifting jib.
1
Step 1 of 11

Setup

Requirements

  • 1 person on Forklift

  • 2 people on Floor

Equipment

  • Stage Frames with Stage Panels (Double Stacked where Possible)

  • Forklift

  • Panel Lifting Jib

PPE

  • Steel Cap Boots

  • Hi-Vis Vest

2
Step 2 of 11
<h1>Setup Workspace</h1><p></p><ul><li><p>Set Down Stage Panel Stillage</p></li><li><p>Line Up Forklift Normal to Long Edge of Stage Panel Stillage</p></li><li><p>Roll Double Stacked Panel Frames to One Side</p></li></ul><p></p>

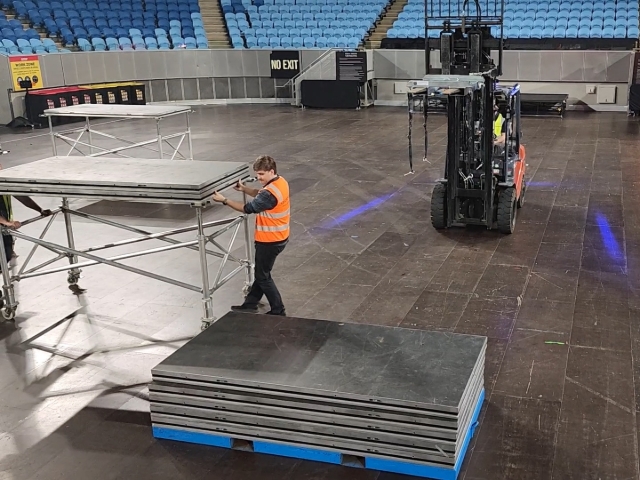

Setup Workspace

  • Set Down Stage Panel Stillage

  • Line Up Forklift Normal to Long Edge of Stage Panel Stillage

  • Roll Double Stacked Panel Frames to One Side

3
Step 3 of 11

Pick Up Jib

Pick up jib and connect chain.

4
Step 4 of 11

Roll In Frame

Roll frame with panels on top in between forklift and panel stillage

5
Step 5 of 11

Insert Pins

Insert pins into the bottom stage panel

6
Step 6 of 11
<h1>Pro Tip: Insert Pins All The Way</h1><p></p><p>Ensure pins are inserted all the way</p>

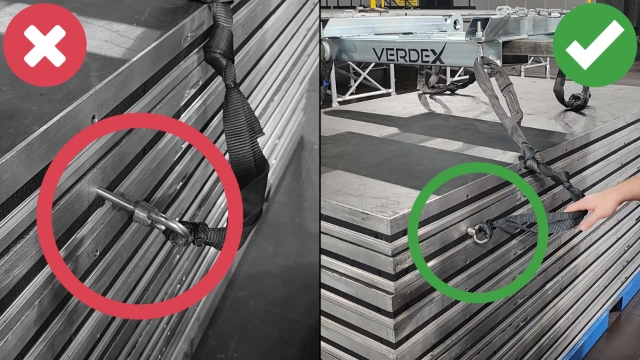

Pro Tip: Insert Pins All The Way

Ensure pins are inserted all the way

7
Step 7 of 11

Lift Panels

Lift the panels off the frame and roll the frame away.

8
Step 8 of 11

Lower Panels

Co-ordinate with the forklift driver to lower the panels onto the stack.

Important: Keep hands on side or above panels to avoid pinching

9
Step 9 of 11

Remove Pins

10
Step 10 of 11

Repeat

Repeat until all panels have been removed from frames.

11
Step 11 of 11

Drop Off Jib

Leave the jib on top of the stack of stage panels.
