Load Cell Swapout

Knowby

Load Cell Swapout

1

Step 1 of 34

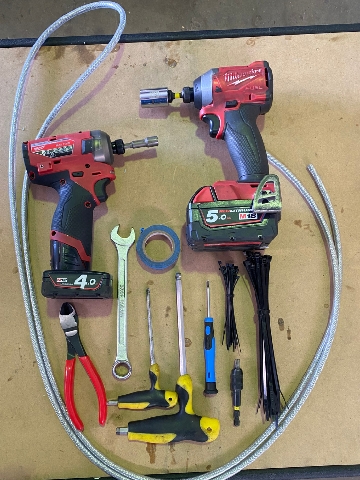

<p><span><strong><span style="text-decoration: underline;">Tools:</span></strong></span></p><div>Small flathead screwdriver</div><div>17mm spanner</div><div>6mm, 8mm Allen key</div><div>17mm, 19mm socket</div><div>Side cutters</div><div>Impact driver with nut setter bit</div><div>Rattle gun/ breaker bar/ ratchet</div><div>Tape</div><div>Cable/ rope (1.5m)</div><div>Phone with Optiweigh app</div><div>Cable ties</div><p><strong><span style="text-decoration: underline;">Load cell kit:</span></strong></p><div>2 sets of load cells potted in resin</div><div>Load bar plug</div>

Tools:

Small flathead screwdriver

17mm spanner

6mm, 8mm Allen key

17mm, 19mm socket

Side cutters

Impact driver with nut setter bit

Rattle gun/ breaker bar/ ratchet

Tape

Cable/ rope (1.5m)

Phone with Optiweigh app

Cable ties

Load cell kit:

2 sets of load cells potted in resin

Load bar plug

2

Step 2 of 34

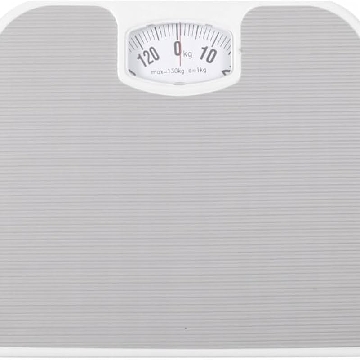

<p>Weigh yourself  wearing your work clothes to ensure accurate calibration</p>

Weigh yourself wearing your work clothes to ensure accurate calibration

3

Step 3 of 34

<p><span>Power off unit</span></p><p>Remove power and load bar plugs</p>

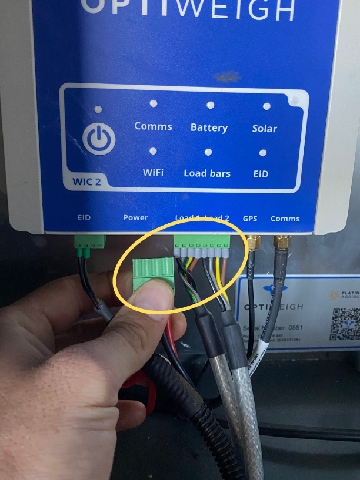

Power off unit

Remove power and load bar plugs

4

Step 4 of 34

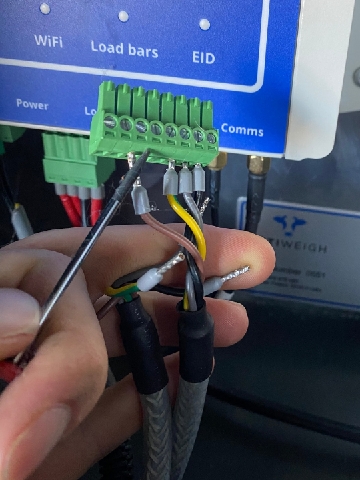

<p>Unscrew leads from load bar plug<br></p>

Unscrew leads from load bar plug

5

Step 5 of 34

<p>Take out the lick tub and frame</p>

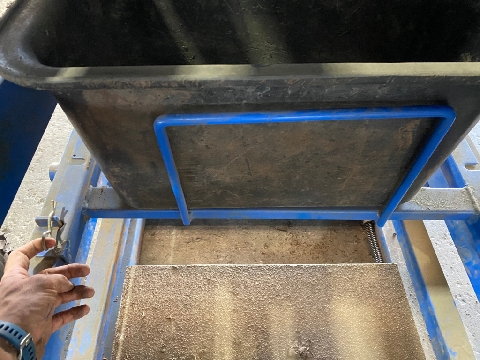

Take out the lick tub and frame

6

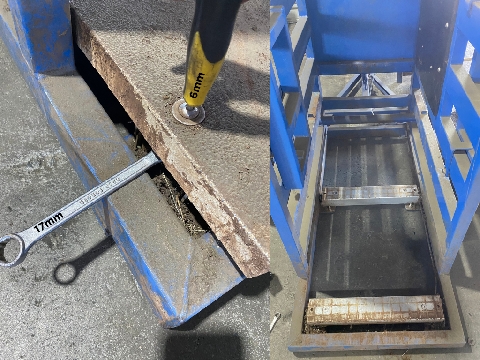

Step 6 of 34

<p><span>Take off platform using a 17mm spanner and a 6mm Allen key. </span></p><p>(Some units will have a 17mm bolthead on top instead of an Allen key)</p><p><br></p><p>Keep nuts and bolts to the side</p>

Take off platform using a 17mm spanner and a 6mm Allen key.

(Some units will have a 17mm bolthead on top instead of an Allen key)

Keep nuts and bolts to the side

7

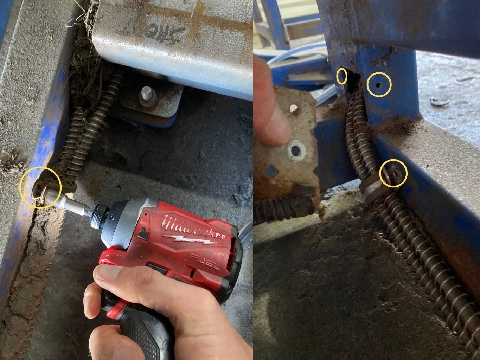

Step 7 of 34

<p>Unscrew cable clamps (5 screws) and mouse-proofing (2 screws)</p>

Unscrew cable clamps (5 screws) and mouse-proofing (2 screws)

8

Step 8 of 34

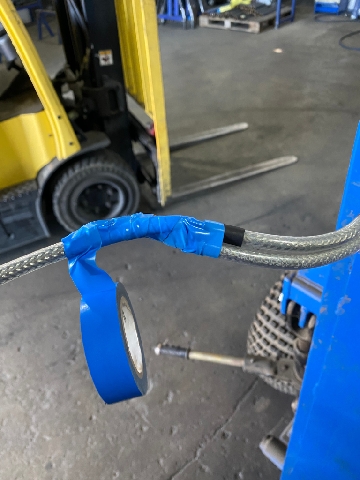

<p>Tape some rope/cable to the end of the load bar leads</p>

Tape some rope/cable to the end of the load bar leads

9

Step 9 of 34

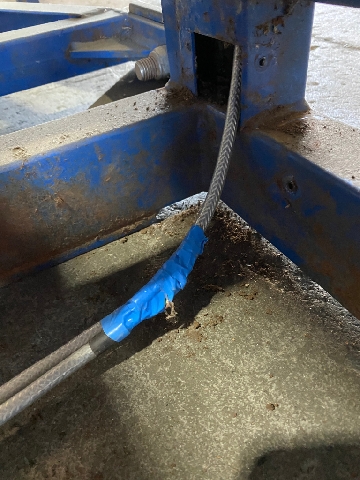

<p>Pull load bar leads through from the bottom </p><p><em><strong>Don't pull the rope/cable through</strong></em></p>

Pull load bar leads through from the bottom

Don't pull the rope/cable through

10

Step 10 of 34

Unscrew tops of load bars - 8mm Allen key

11

Step 11 of 34

Cut off black box

12

Step 12 of 34

Unscrew and remove load cells

13

Step 13 of 34

Take bolts, spacers, and washers off load cells - keep to the side

14

Step 14 of 34

Cut off zip ties - pull leads through the load bars and remove springs

Keep springs handy

15

Step 15 of 34

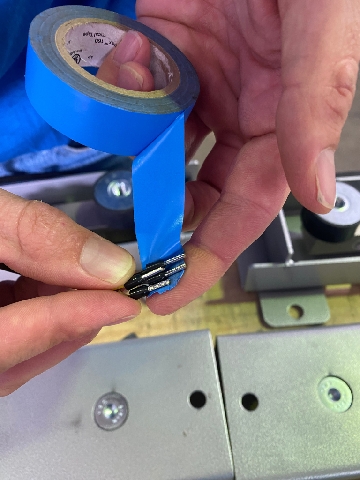

Tape the ferrules to stop them catching

Tip: Position 2 ferrules lower for a narrower profile

16

Step 16 of 34

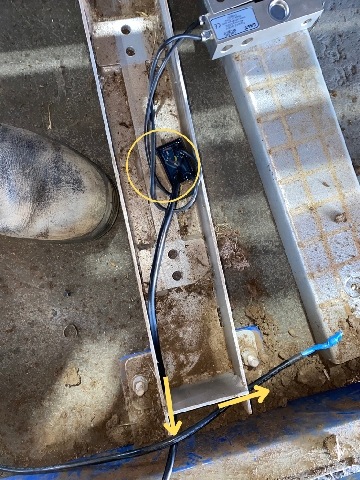

<p>Pull new leads through load bars until the black box is in the middle of the bar</p><p><br></p><p><br></p>

Pull new leads through load bars until the black box is in the middle of the bar

17

Step 17 of 34

Bolt down new load cells

Screw on spacers and washers

18

Step 18 of 34

Keep the cells loose enough that you can adjust them slightly

*this is essential for step 21

19

Step 19 of 34

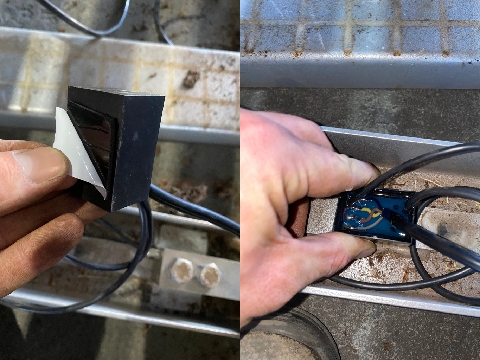

<p>Ensure the surface is clean and double sided tape the new black box to the middle of the bar</p><p><strong><em>Hold down for 10 seconds</em></strong></p>

Ensure the surface is clean and double sided tape the new black box to the middle of the bar

Hold down for 10 seconds

20

Step 20 of 34

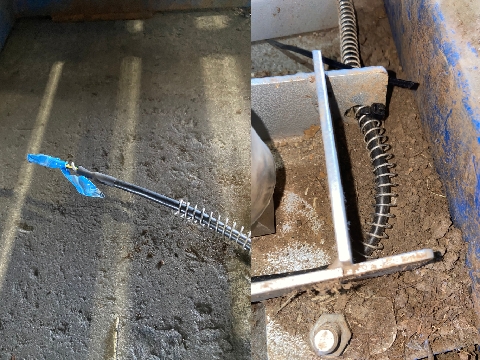

<p>Pull the spring over the cable</p><p>Cable tie to stop movement</p>

Pull the spring over the cable

Cable tie to stop movement

21

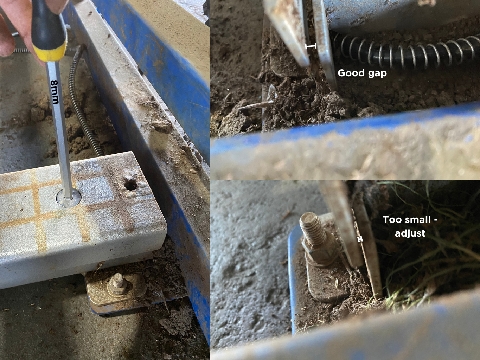

Step 21 of 34

<p>Screw lid back on </p><p>Adjust by pushing the lid* to make sure the sides of the shell <strong>aren't touching </strong>- check all four edges</p><p><strong><em>The unit will give bad readings if the sides touch</em></strong></p><p><em>*the cells should be loose enough so you can push the lid to get movement (step 18)</em></p>

Screw lid back on

Adjust by pushing the lid* to make sure the sides of the shell aren't touching - check all four edges

The unit will give bad readings if the sides touch

*the cells should be loose enough so you can push the lid to get movement (step 18)

22

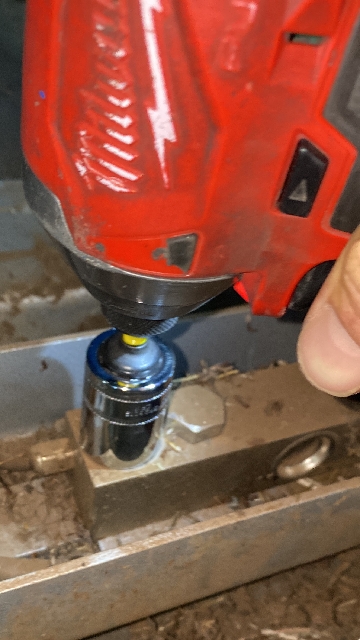

Step 22 of 34

<p>Now the cells are in the right position, unscrew lid and bolt down cells as tightly as possible</p><p><strong><em>Any movement in the cells could cause the sides to touch and give bad readings</em></strong></p>

Now the cells are in the right position, unscrew lid and bolt down cells as tightly as possible

Any movement in the cells could cause the sides to touch and give bad readings

23

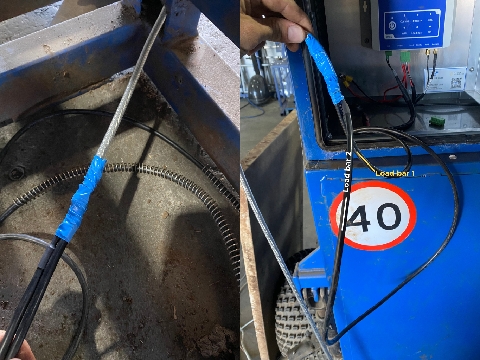

Step 23 of 34

<p>Tape ends of load bar leads to the rope/cable and pull back up through to top box</p><p><br></p><p>Load bar 1 has less cable</p><p>Load bar 2 has extra cable</p>

Tape ends of load bar leads to the rope/cable and pull back up through to top box

Load bar 1 has less cable

Load bar 2 has extra cable

24

Step 24 of 34

Screw back on cable clamps and mouse proofing

Ensure the spring covers all of the exposed lead

25

Step 25 of 34

<p>Line the platform up with the original holes and insert bolts</p>

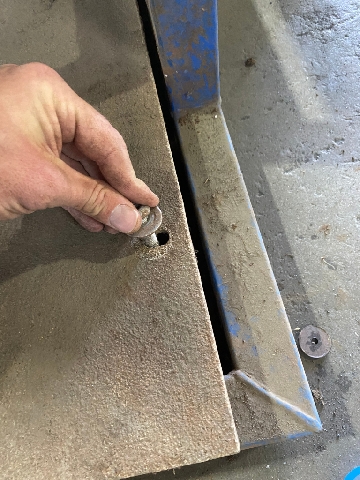

Line the platform up with the original holes and insert bolts

26

Step 26 of 34

Start threading the nuts on to the bolts

Be careful not to cross-thread

27

Step 27 of 34

<p>Bolt platform on</p>

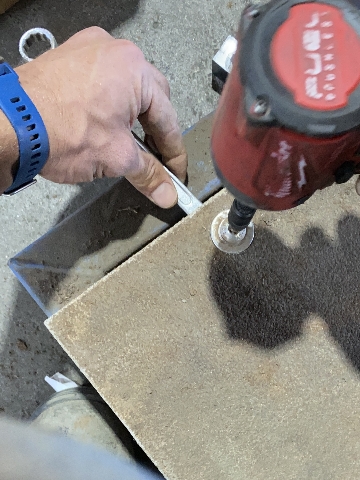

Bolt platform on

28

Step 28 of 34

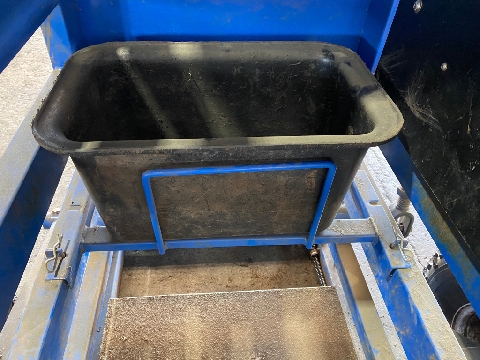

<p>Re-install lick tub</p>

Re-install lick tub

29

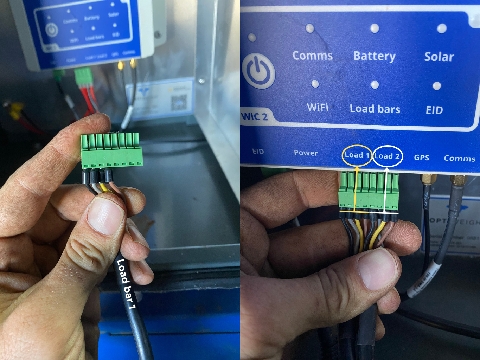

Step 29 of 34

<p>Screw on new plug</p><p><strong><em>LB1: Black-Grey-Yellow-Brown </em></strong></p><p><strong><em>LB2: Black-Grey-Yellow-Brown</em></strong></p>

Screw on new plug

LB1: Black-Grey-Yellow-Brown

LB2: Black-Grey-Yellow-Brown

30

Step 30 of 34

<p>Plug in to WIC2 control box and turn on</p>

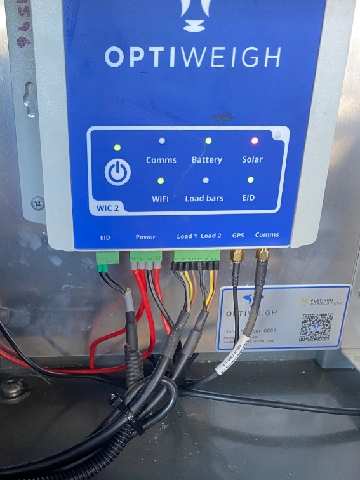

Plug in to WIC2 control box and turn on

31

Step 31 of 34

<p>Connect to unit wifi -> Open Optiweigh app -> Unit Maintenance -> Check unit</p>

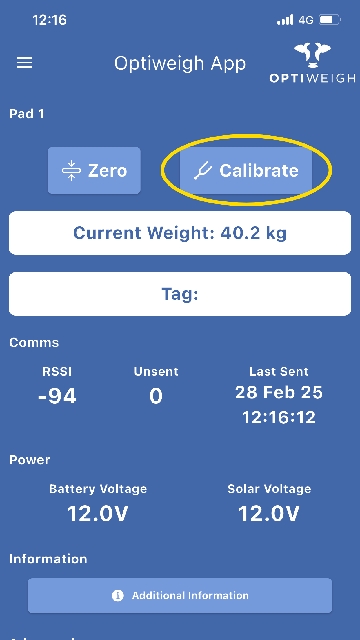

Connect to unit wifi -> Open Optiweigh app -> Unit Maintenance -> Check unit

32

Step 32 of 34

<p><span>Press Calibrate</span></p><p>Password is: abc123</p><p>Ensure <strong><span style="text-decoration: underline;">NO WEIGHT</span></strong> is on the platform and press "zero"</p><p><span style="text-decoration: underline;"><strong>STAND IN THE MIDDLE OF THE PLATFORM</strong></span>, type in your weight, press OK</p>

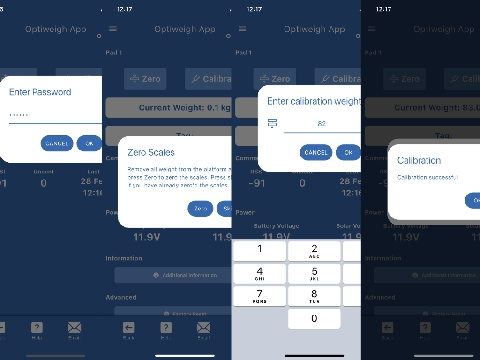

Press Calibrate

Password is: abc123

Ensure NO WEIGHT is on the platform and press "zero"

STAND IN THE MIDDLE OF THE PLATFORM, type in your weight, press OK

33

Step 33 of 34

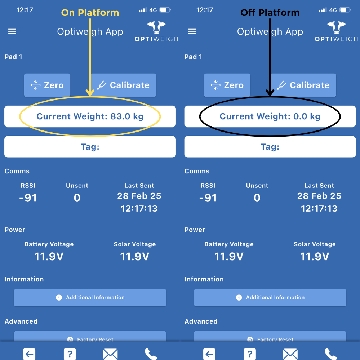

<p><span>Ensure it weighs you correctly after calibration</span></p><p>Ensure it reads '0' when you hop off</p>

Ensure it weighs you correctly after calibration

Ensure it reads '0' when you hop off

34

Step 34 of 34

<p>All done - move the unit back to the paddock and start getting weights again!</p>

All done - move the unit back to the paddock and start getting weights again!
