De Laval Robot low milk flow
1
Step 1 of 19

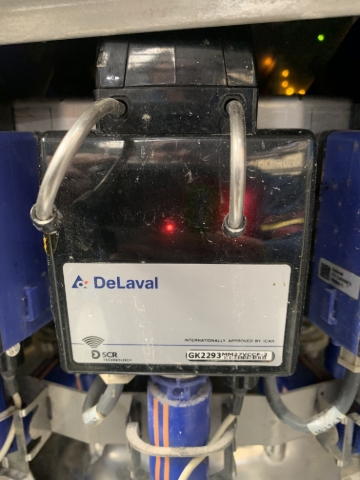

<p>When you get an alert or there is low milk flow in a line often there is some foreign material stuck in the flow meter</p>

When you get an alert or there is low milk flow in a line often there is some foreign material stuck in the flow meter

2
Step 2 of 19

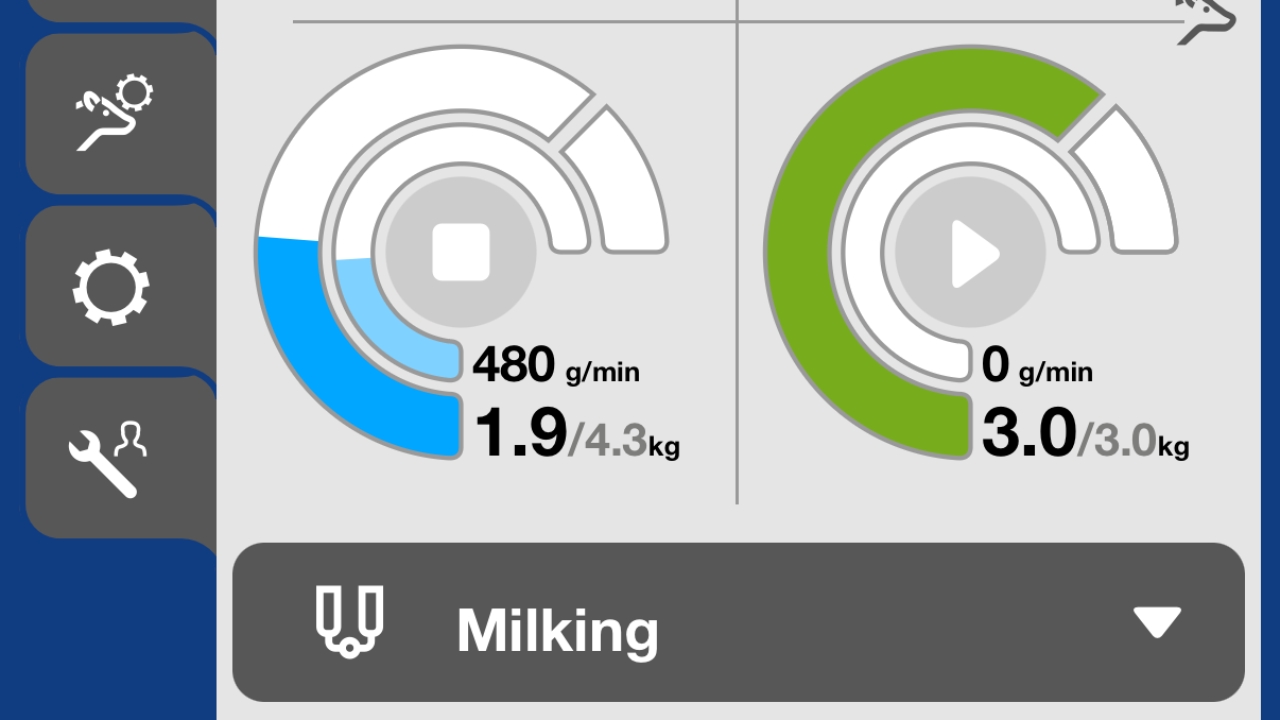

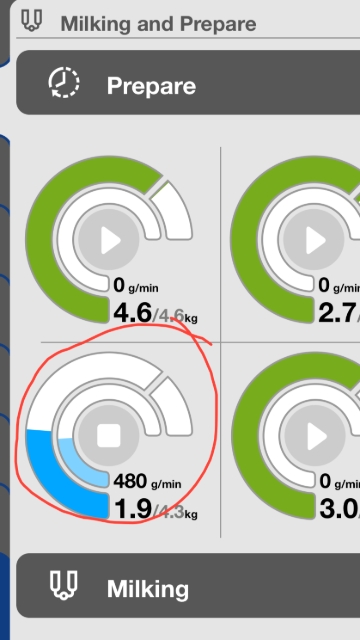

<p>It will look like this on the App.</p>

It will look like this on the App.

3
Step 3 of 19

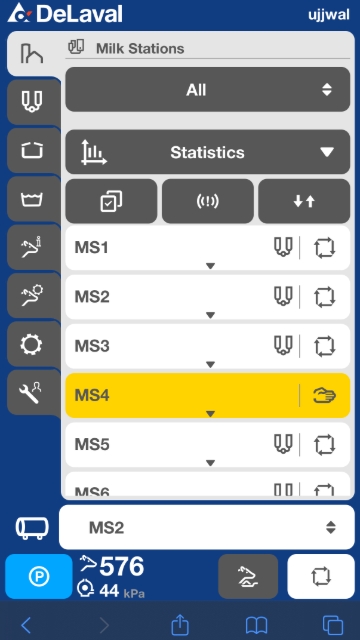

<p>First you need to open the App and put the unit into manual so it shuts down.</p>

First you need to open the App and put the unit into manual so it shuts down.

4
Step 4 of 19

Then open the cabinet like this.

5
Step 5 of 19

Pull the pins out holding the cap and flow meter in place.

6
Step 6 of 19

Remove the hose cover clip.

7
Step 7 of 19

Remove the hose.

8
Step 8 of 19

Pull the cap off the flow meter and check for foreign material causing a blockage.

9
Step 9 of 19

Use a cable tie to push the material through the flow meter.

10
Step 10 of 19

Then flush it with clean water.

11
Step 11 of 19

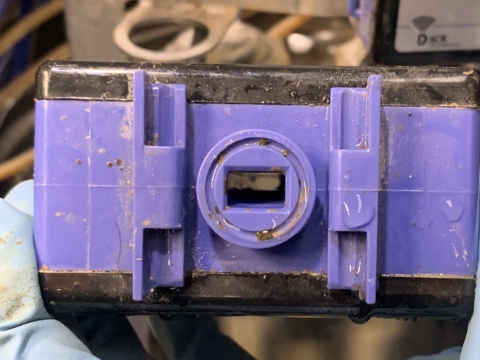

<p>Check it is clean and clear of all material.</p>

Check it is clean and clear of all material.

12
Step 12 of 19

Sit the flow meter back in position.

13
Step 13 of 19

Replace the hose.

14
Step 14 of 19

Put the cap back in place.

15
Step 15 of 19

Now replace the holding pins. They need to line up right through so they go all the way in.

16
Step 16 of 19

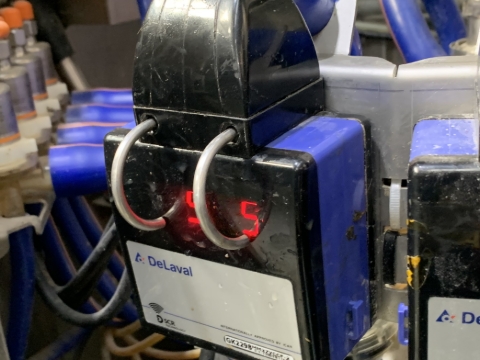

<p>They should look like this when in properly.</p>

They should look like this when in properly.

17
Step 17 of 19

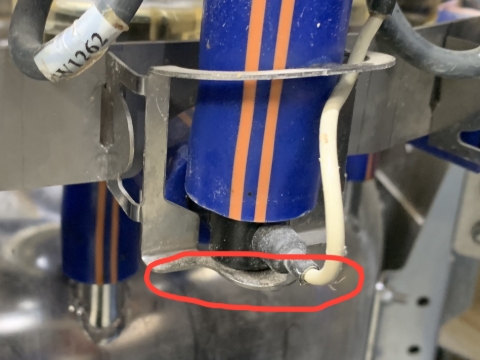

<p>Now put the hose clip back in place. They need to base should sit on the clip itself like this.</p>

Now put the hose clip back in place. They need to base should sit on the clip itself like this.

18
Step 18 of 19

Put it in place by squeezing the sides of the clip and slipping them into the body.

19
Step 19 of 19

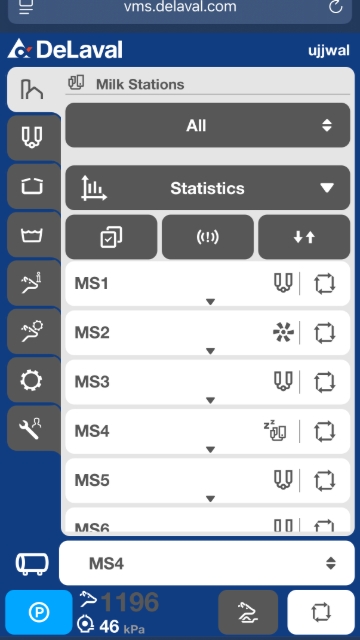

<p>Shut the cabinet and then turn the unit back onto auto on the App.</p>

Shut the cabinet and then turn the unit back onto auto on the App.
