Vehicle Prep: Ineos Cab Chassis
Do this before fitting the Tray to vehicle
Do this before fitting the Tray to vehicle
1
Step 1 of 8

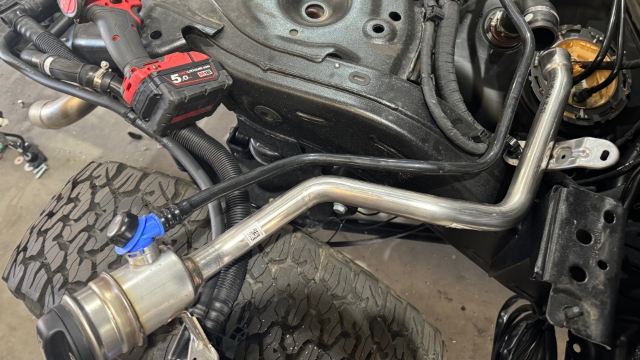

<p>Remove the original Fuel filler neck</p>

Remove the original Fuel filler neck

2
Step 2 of 8

Remove the rubber elbow from the top of the vehicles fuel tank, 8mm Socket

3
Step 3 of 8

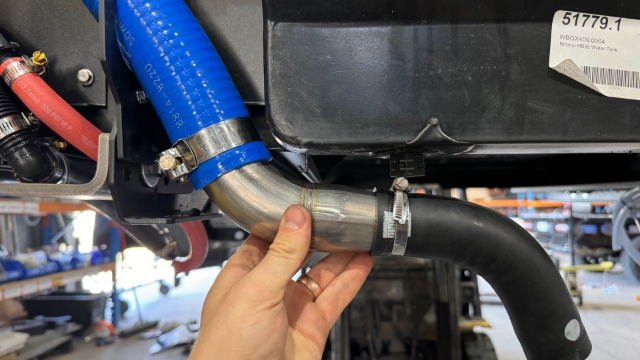

<p>Fit the rubber elbow to the Trays fuel hoses.</p> <p><em>It is possible to leave that rubber elbow attached to the vehicle, however this is easier.</em></p>

Fit the rubber elbow to the Trays fuel hoses.

It is possible to leave that rubber elbow attached to the vehicle, however this is easier.

4
Step 4 of 8

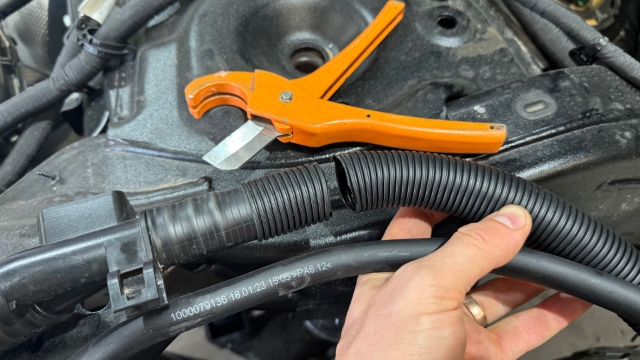

<p><strong>The AdBlue pipes need to be extended.</strong></p> <p>Cut the AdBlue filler pipe in the location shown here</p>

The AdBlue pipes need to be extended.

Cut the AdBlue filler pipe in the location shown here

5
Step 5 of 8

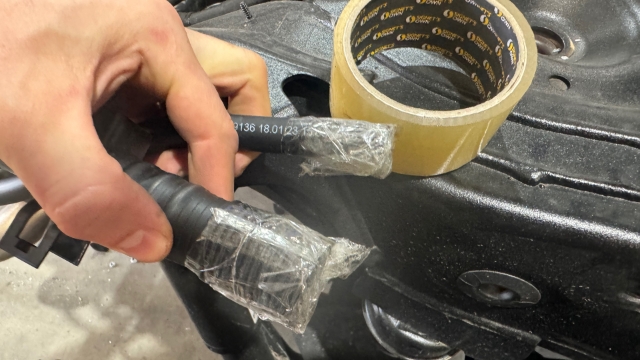

<p><strong>TIP:</strong></p> <p>If Leaving for more than 15 minutes, tape the end of the hoses up so they are sealed. <em>There can be issues if the AdBlue crystallises -</em> we want to prevent this by keeping the pipes sealed as much as possible.</p>

TIP:

If Leaving for more than 15 minutes, tape the end of the hoses up so they are sealed. There can be issues if the AdBlue crystallises - we want to prevent this by keeping the pipes sealed as much as possible.

6
Step 6 of 8

Identify the supplied AdBlue extension hoses. They are not need yet, but will be soon.

7
Step 7 of 8

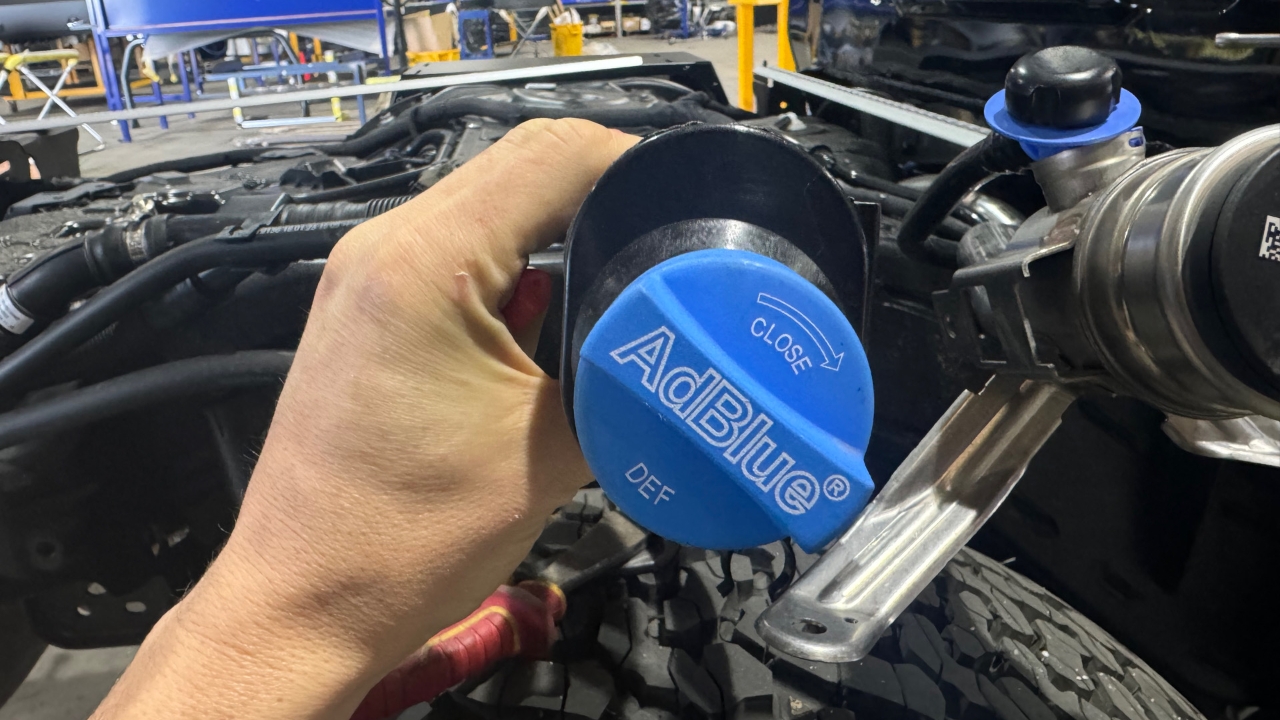

Trim the side of the AdBlue filler off like this

8
Step 8 of 8

Using the supplied hose clamp, Fit the AdBlue filler pipes to the lower part of the Trays headboard.
