Mounts Layout: DMax-Colorado, X-Cab, 2012-2020
1
Step 1 of 4

Marking jig #13

2
Step 2 of 4

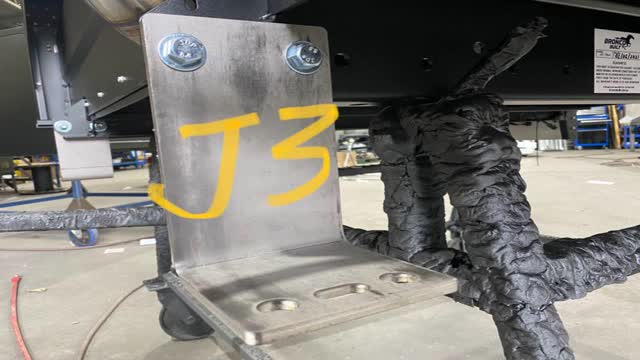

<p>“J3”</p> <p>Front both sides</p> <p>In front position</p>

“J3”

Front both sides

In front position

3
Step 3 of 4

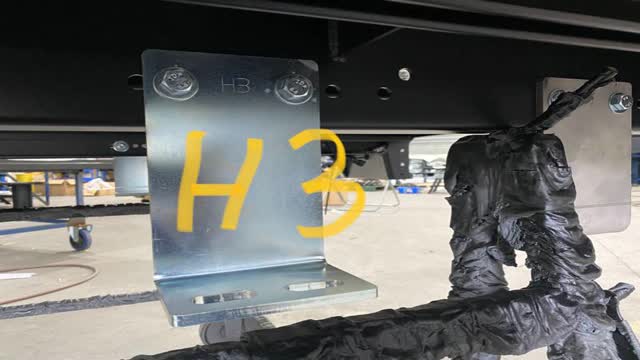

<p>“H3”</p> <p>Middle both sides</p> <p>1155mm (From front of front mount to front of this mount)</p>

“H3”

Middle both sides

1155mm (From front of front mount to front of this mount)

4
Step 4 of 4

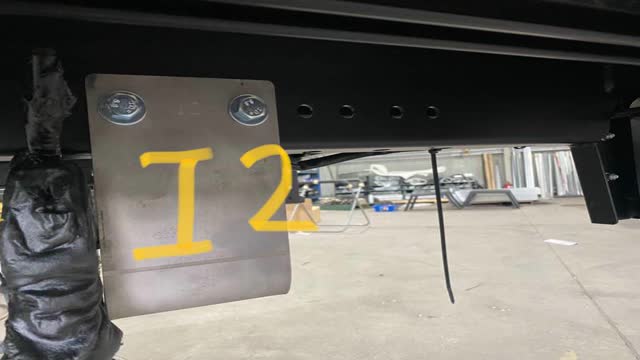

<p>“I2”</p> <p>Rear, both sides</p> <p>1495mm (From front of front mount to front of this mount)</p>

“I2”

Rear, both sides

1495mm (From front of front mount to front of this mount)
