CHASSIS MOUNTS, TRITON 2024+ / NAVARA 2026+ SC
1
Step 1 of 12
<p></p>

2
Step 2 of 12

​Contents (Click to view)

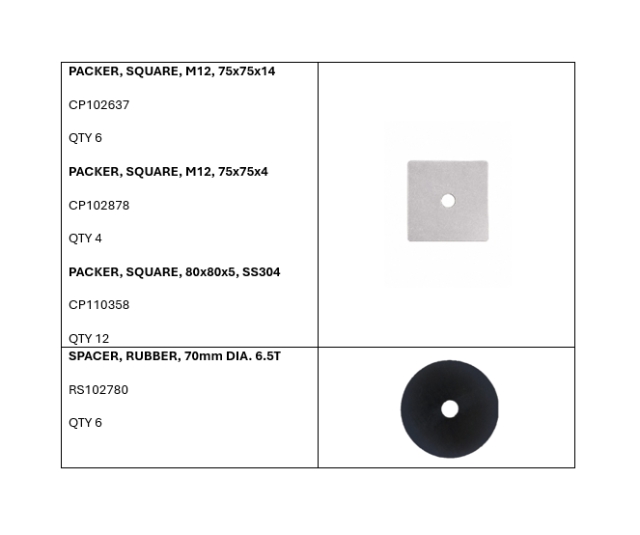

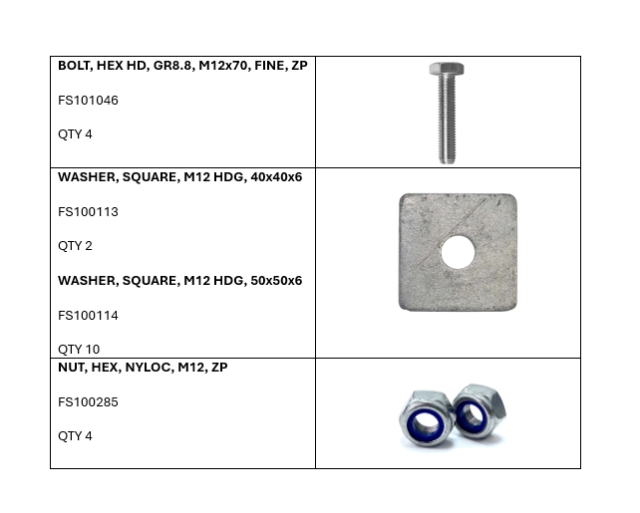

​STEP 3: Components List​

​STEP 5: Tools List​

​STEP 6: Torque Values​

​STEP 7: Hole Diagram​

​STEP 8: Chassis Mounts​

​STEP 12: QA Sheet​

3
Step 3 of 12
4
Step 4 of 12
5
Step 5 of 12
<p>Tools List</p>

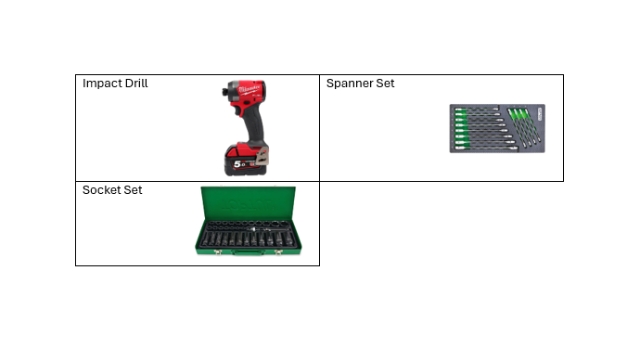

Tools List

6
Step 6 of 12
<p>Torque Values</p>

Torque Values

7
Step 7 of 12
<p>Hole Diagram</p>

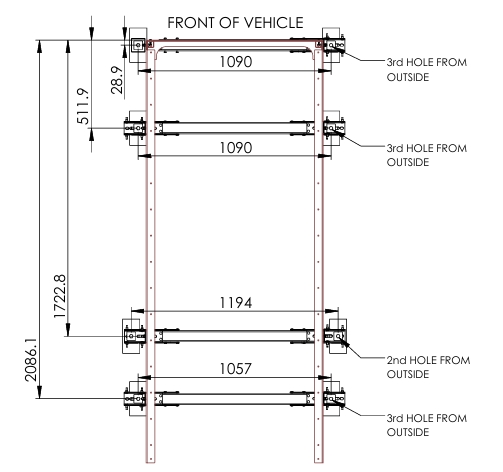

Hole Diagram

8
Step 8 of 12
<p>Triton/Navara SC Front</p><p>Distance to the front of the chassis: 28.9mm</p><p>Bolt Hole: Third hole from Outside</p>

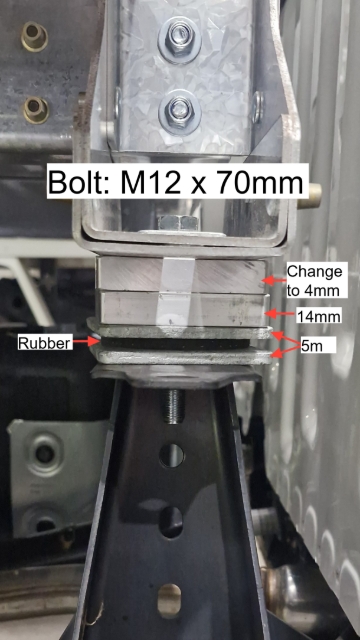

Triton/Navara SC Front

Distance to the front of the chassis: 28.9mm

Bolt Hole: Third hole from Outside

9
Step 9 of 12
<p>Triton/Navara SC Second from front</p><p>Distance to the front of the chassis: 511.9mm</p><p>Bolt Hole: 3rd hole from Outside</p>

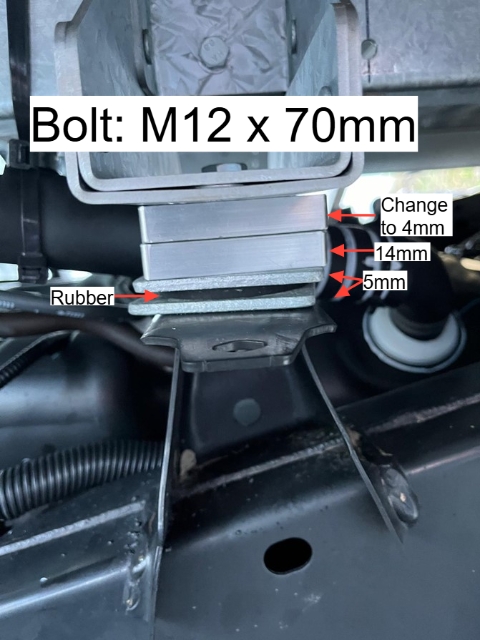

Triton/Navara SC Second from front

Distance to the front of the chassis: 511.9mm

Bolt Hole: 3rd hole from Outside

10
Step 10 of 12

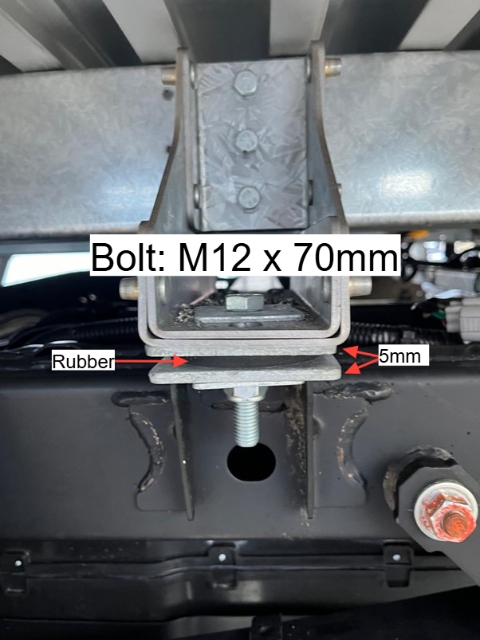

<p>Triton/Navara SC Third from front</p><p>Distance to the front of the chassis: 1722.8mm</p><p>Bolt Hole: Second hole from Outside</p>

Triton/Navara SC Third from front

Distance to the front of the chassis: 1722.8mm

Bolt Hole: Second hole from Outside

11
Step 11 of 12
<p>Triton/Navara SC Fourth from front</p><p>Distance to the front of the chassis: 2086.1mm</p><p>Bolt Hole: Third hole from Outside</p>

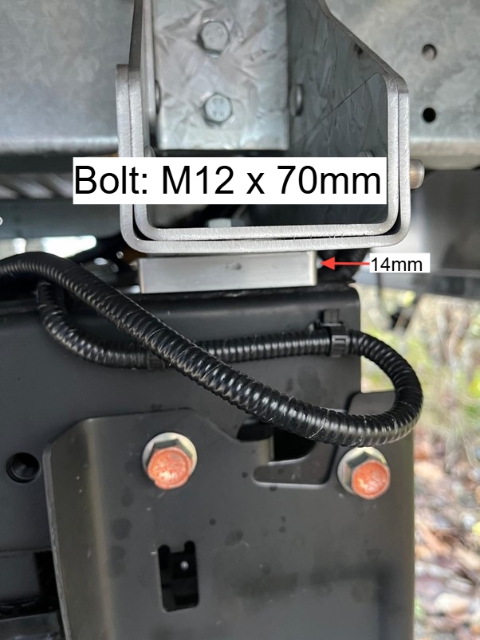

Triton/Navara SC Fourth from front

Distance to the front of the chassis: 2086.1mm

Bolt Hole: Third hole from Outside

12
Step 12 of 12
<p>QA Sheet</p>

QA Sheet
