Fuel Filler, "V3 Headboard" Ranger-BT50, Dual Cab

Knowby

Fuel Filler, "V3 Headboard" Ranger-BT50, Dual Cab

1

Step 1 of 17

Suits: Ford Ranger, 2012-Present Mazda BT50, 2012-2020

2

Step 2 of 17

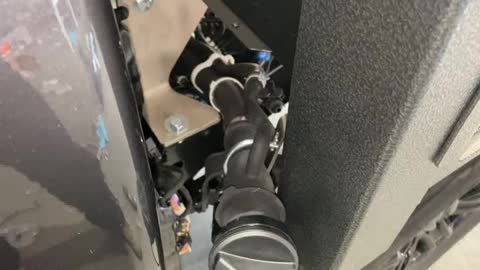

Looks like this when done

3

Step 3 of 17

Identify supplied bracket. Marked with “101-279”

4

Step 4 of 17

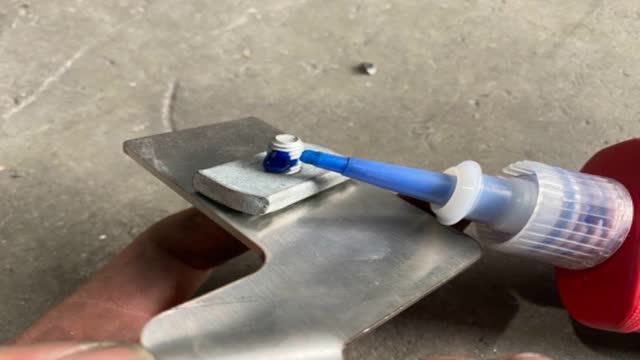

<p>Loctite</p>

Loctite

5

Step 5 of 17

Original will look like this

6

Step 6 of 17

Zip tie cabin wires

7

Step 7 of 17

Fuel door release

8

Step 8 of 17

Pull drain pipe

9

Step 9 of 17

Remove shroud

10

Step 10 of 17

Bracket to outer rail, loosely

11

Step 11 of 17

Fit and tighten

12

Step 12 of 17

Should look like this

13

Step 13 of 17

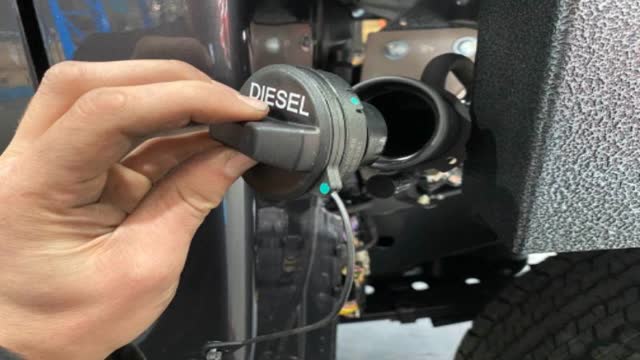

<p>Fit cap</p>

Fit cap

14

Step 14 of 17

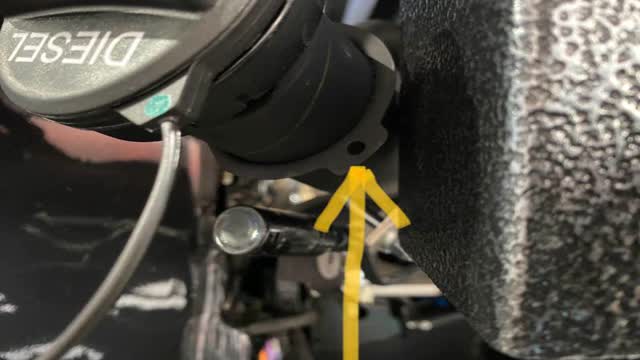

<p>Enlarge hole, 8.5mm</p>

Enlarge hole, 8.5mm

15

Step 15 of 17

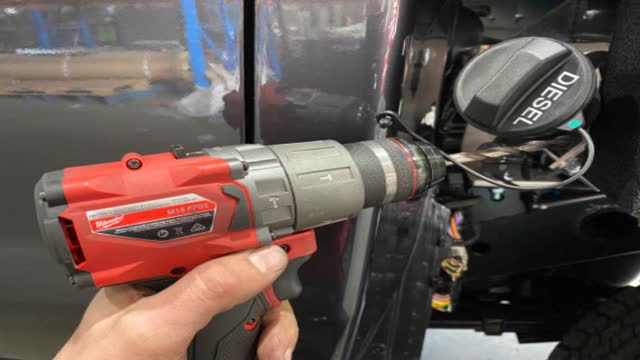

<p>Take care</p>

Take care

16

Step 16 of 17

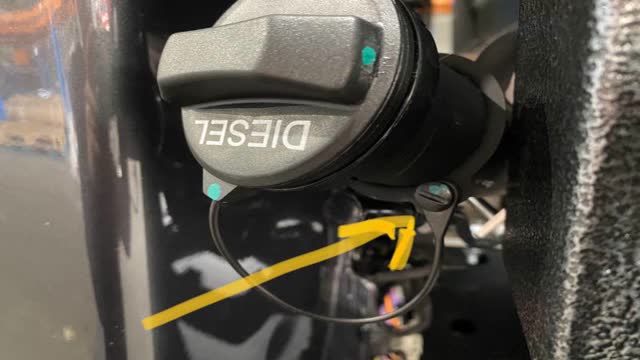

<p>Plug in</p>

Plug in

17

Step 17 of 17

Looks like this when done
