Open all boxes and remove all packing,
Lay out all Hardware:

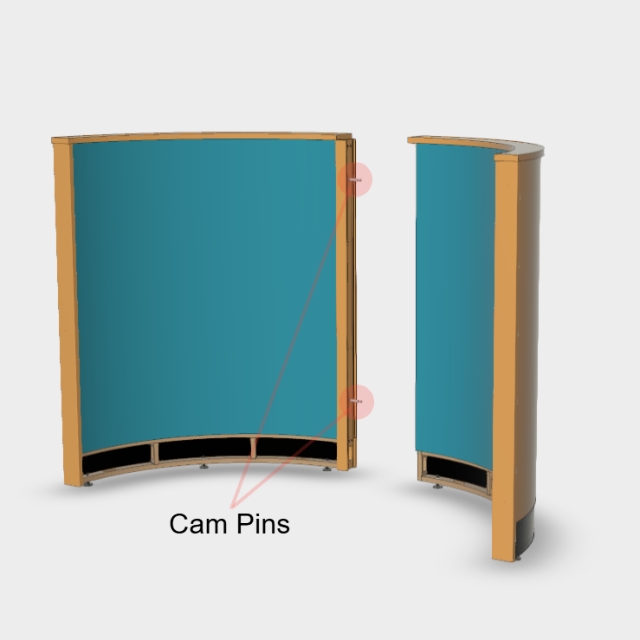

Cam Pins
Toe Kicks
Top joining brackets
Power cables (If Required)
Table Mounting Brackets (If Required)
Insert Cam pins into threaded inserts in timber pillar
Pull together wall units, ensure pins fit into the adjoining cams.
Using 6mm Allen head - find small punched hole in Floc wool panel to tighten cam
Re fluff Floc panel once cam has been tightened - CAREFULLY flick out using a screw head or similar

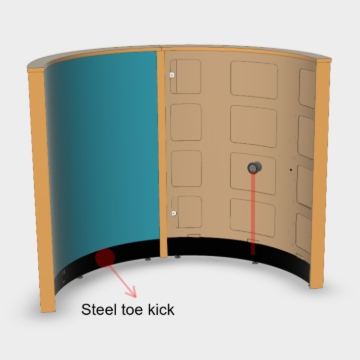

Ensure power has been installed to configuration with the starter cable feeding into the units from below - running inside toe kick void
Once power if confirmed fit steel toe kicks
Flex center of steel Toe Kick as shown in image - while flexed insert two ends behind Timber Ash Pillars
DO NOT crease, slowly release Toe kick and snap into place - THIS IT A TIGHT TENSION FIT

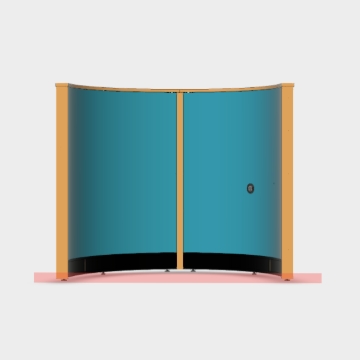

Ensure all feet have been adjusted - level all units

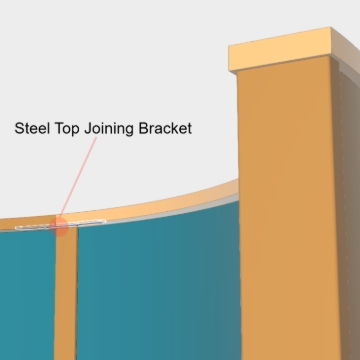

Attach Steel plate joining bracket on underside of top caps using hardware supplied

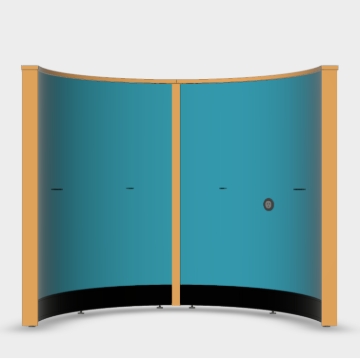

Mark out for Table / Desk position
Select from the configurations shown in link below
Refer to
Orbit - Table bracket mounting

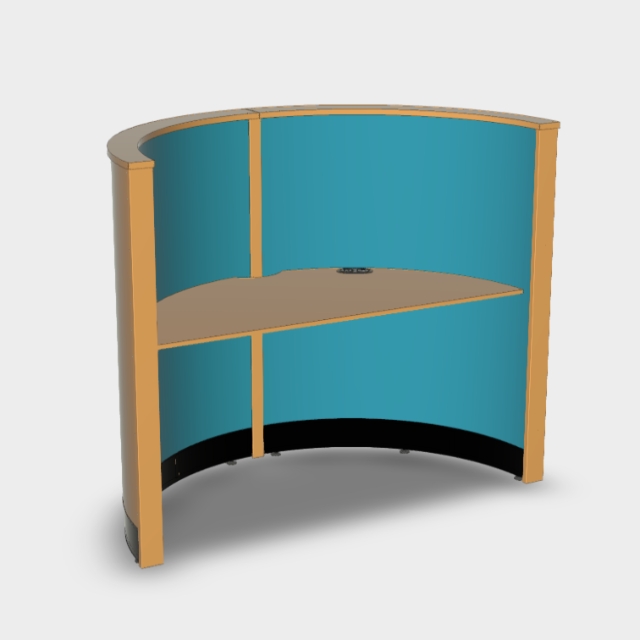

Attach Table / Desk to brackets fitted
