Wrapper Cell Access

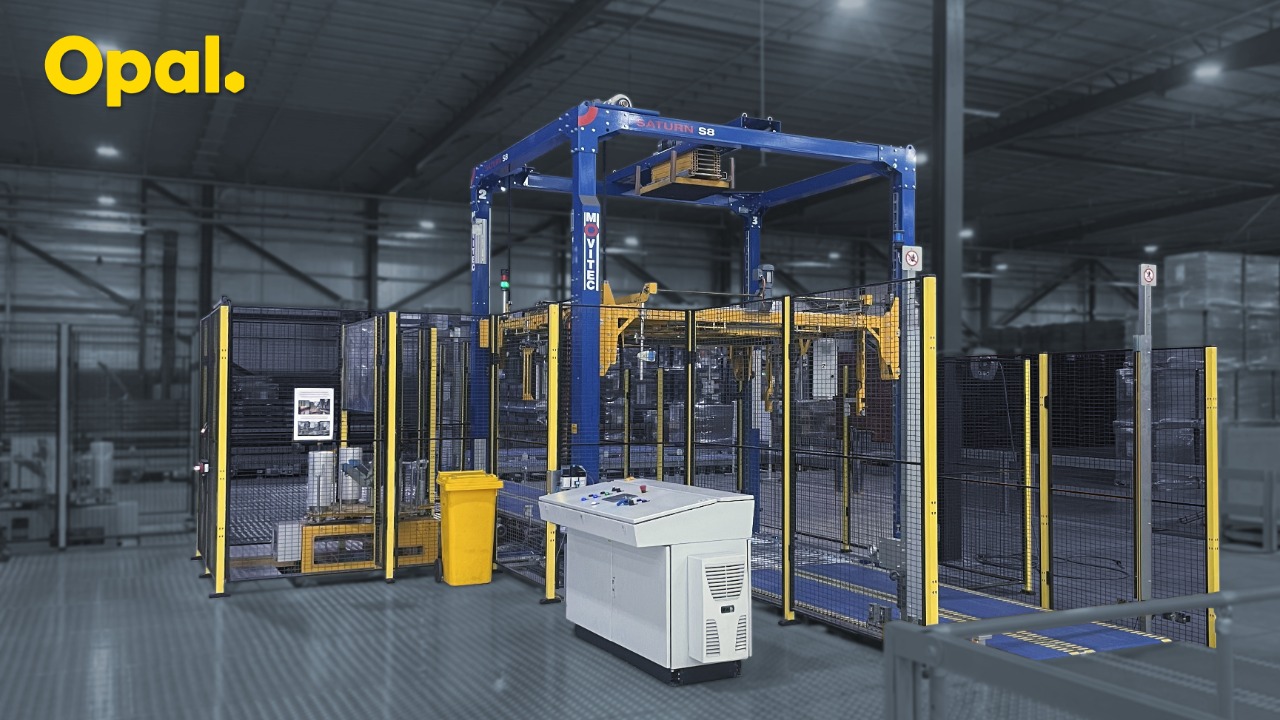

How to safely access finished goods wrapper
How to safely access finished goods wrapper
1
Step 1 of 5

Switch to Manual:

At the main control panel, turn switch to 'Manual'.

2
Step 2 of 5

Open the gate:

Press and hold white 'Door Access Request' button until it illuminates. Use handle to open gate.

3
Step 3 of 5

Lock out to enter:

Extract the silver latch and fit red padlock to prevent gate from closing. Place key on wrist before entering wrapper cell.

Note: You must retain the key at all times while in the wrapper cell.

4
Step 4 of 5

Closing the gate:

Remove padlock and push silver latch back into place. Close gatethen press blue 'Door Lock' button until it illuminates.

5
Step 5 of 5

Restart the wrapper:

Return to main control panel, press the buttons in the following sequence;

  1. 'Restart Emergency Control' (blue).

  2. 'Cycle Start/Stop' (black).

  3. Switch to 'Auto'.

  4. 'Cycle Start/Stop' button until green light illuminates.
