Tub Removal, Ford Ranger/Mazda BT50 (2012-2022)

1

Step 1 of 30

<p>Suits:
Ford Ranger. 2011-Present
BT50 2011-2020</p>
<p>Tools Required:</p>
<ul>
<li>15mm Deep Socket</li>
<li>18mm Deep Socket</li>
<li>1/2" Drive Extension</li>
<li>1/2" Drive Universal Joint</li>
<li>1/2" Driver Impact Gun</li>
<li>T27 Star Tool</li>
<li>Wire Cutters</li>
</ul>

Suits: Ford Ranger. 2011-Present BT50 2011-2020

Tools Required:

15mm Deep Socket
18mm Deep Socket
1/2" Drive Extension
1/2" Drive Universal Joint
1/2" Driver Impact Gun
T27 Star Tool
Wire Cutters

2

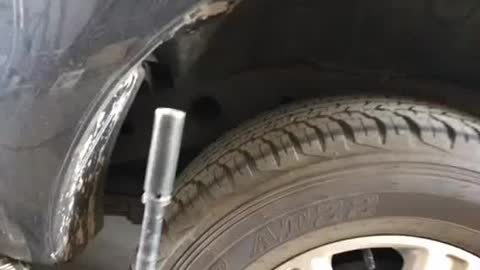

Step 2 of 30

15mm socket with extension for all 6 x chassis bolts. •••••••••IF Towbar is fitted, see next step

3

Step 3 of 30

If Towbar is fitted, add universal joint to extension (15mm socket) to access rear chassis bolts

4

Step 4 of 30

18mm with extension to remove bumper step

15mm on some models

5

Step 5 of 30

Unplug reversing sensor harness, on pass side

6

Step 6 of 30

Unplug lic plate harness. Remove harness from bottom of tub

7

Step 7 of 30

Phillips head to remove lic plate

8

Step 8 of 30

Phillips head remove pass inner front guard

9

Step 9 of 30

Unplug 2x plugs

10

Step 10 of 30

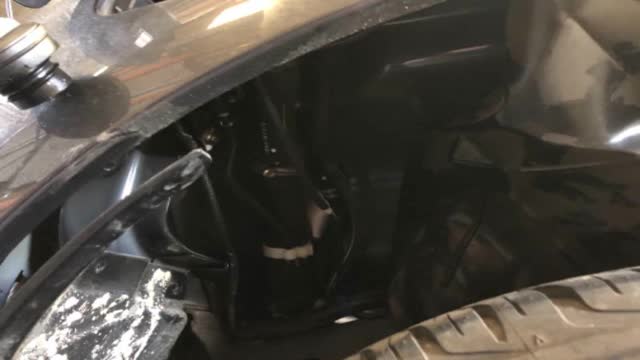

<p>Push back guard to access fuel filler hoses</p>

Push back guard to access fuel filler hoses

11

Step 11 of 30

8mm socket undo fuel bracket bolt

12

Step 12 of 30

Pull filler down out of tub

13

Step 13 of 30

Unplug fuel filler release cables

14

Step 14 of 30

T27 for tailgating

15

Step 15 of 30

Remove plastic tailgate liner

(If it has one)

16

Step 16 of 30

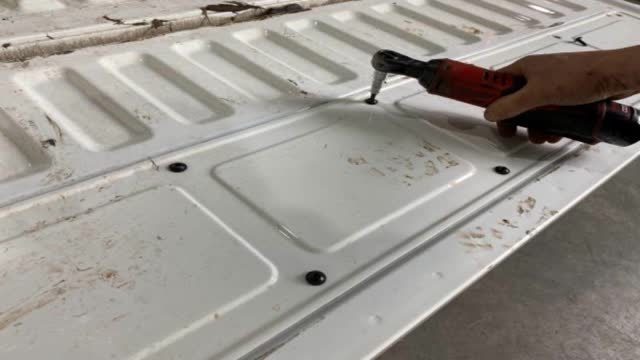

<p>T27 aagin to remove tailgate panel</p>

T27 aagin to remove tailgate panel

17

Step 17 of 30

Remove tailgate cover panel

18

Step 18 of 30

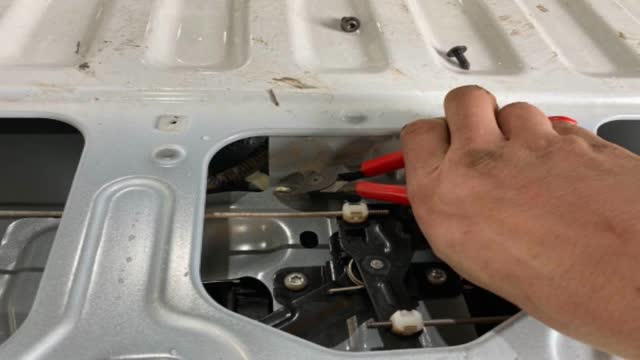

<p>Trim the harness clip</p>

Trim the harness clip

19

Step 19 of 30

On the Wildtrak model, undo other plug - for central locking of tailgate latch

20

Step 20 of 30

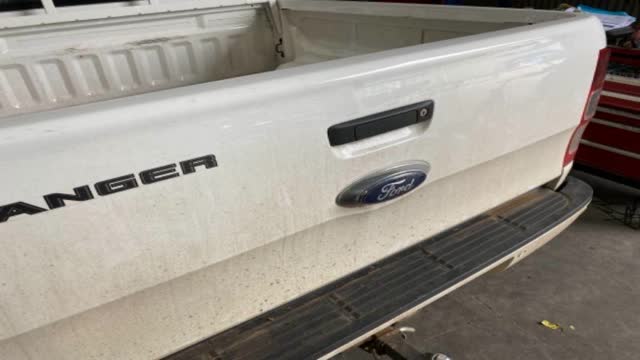

<p>Close the Tailgate</p>

Close the Tailgate

21

Step 21 of 30

For FORD Ranger.......

Pop the Badge off, using a small flat head screwdriver

22

Step 22 of 30

7mm to remove camera assembly

23

Step 23 of 30

Unplug harness from camera

24

Step 24 of 30

Set camera aside

25

Step 25 of 30

Open Tailgate

26

Step 26 of 30

Open tailgate, use large flat head screwdriver to pop harness out of Tub

27

Step 27 of 30

Feed harness out of tailgate, and back through the Tub

28

Step 28 of 30

Lift off using a suitable lifting method.

29

Step 29 of 30

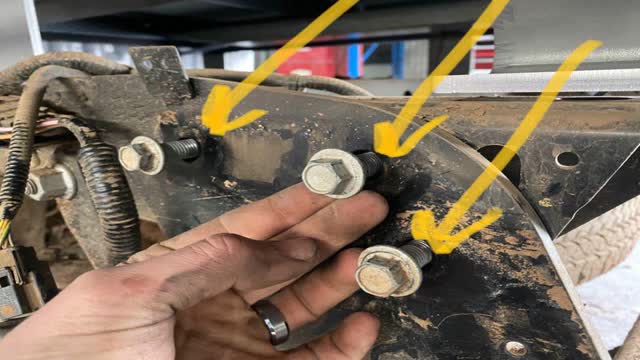

<p>IMPORTANT
On some models, the The Towbar bolts would have been removed as they are common with the rear "Bumper"</p>
<p>Refit these bolts.</p>

IMPORTANT On some models, the The Towbar bolts would have been removed as they are common with the rear "Bumper"

Refit these bolts.

30

Step 30 of 30

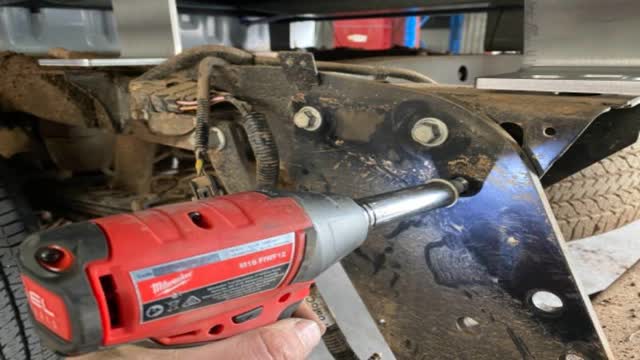

<p>Tighten, 15mm</p>

Tighten, 15mm
