Canopy Import QC Form Final sheet only

Knowby

Canopy Import QC Form Final sheet only

Knowby created from browser extension capture session at 7/14/2026, 9:04:35 AM

Knowby created from browser extension capture session at 7/14/2026, 9:04:35 AM

1

Step 1 of 35

Powder coating checks - Even, full coverage, No scratches, PC defects, dents in door corners.

2

Step 2 of 35

Door Assembly - Adhesion Promotor and glue applied to brackets, lock covers, extrusion tubes

3

Step 3 of 35

4

Step 4 of 35

5

Step 5 of 35

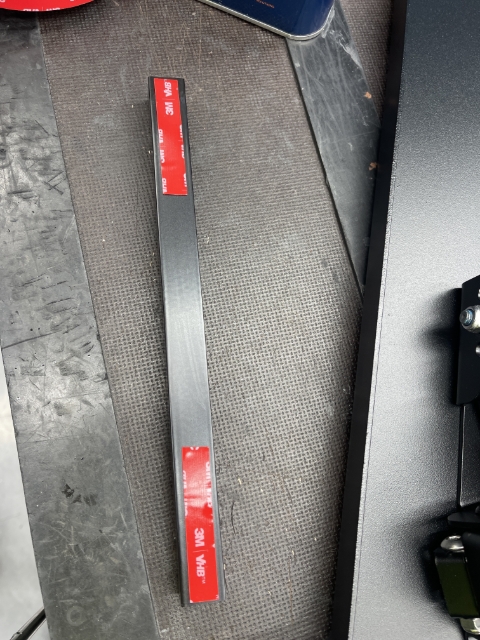

<p>Put LSE 3M tape both ends on the extrusion</p>

Put LSE 3M tape both ends on the extrusion

6

Step 6 of 35

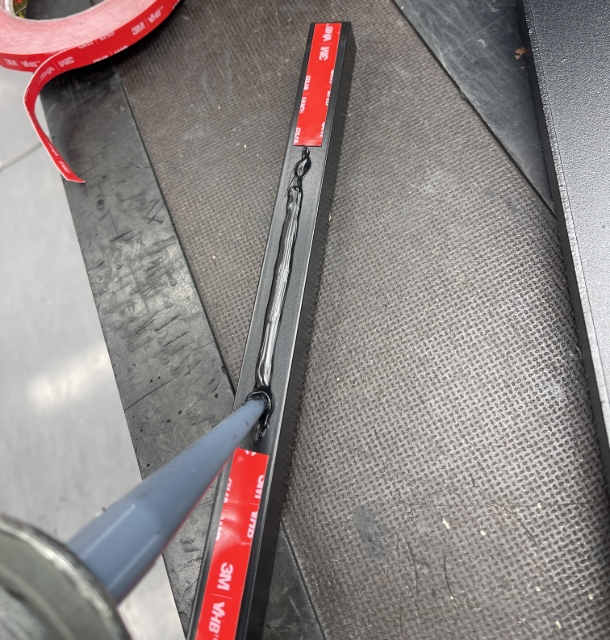

<p>Apply glue</p>

Apply glue

7

Step 7 of 35

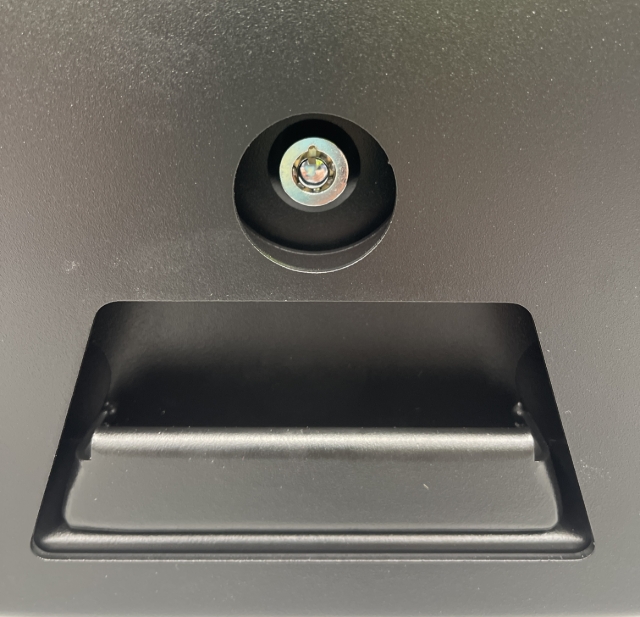

Lock aligns to door, key cutout in top orientation

Lock aligns to door, key cutout in top orientation

8

Step 8 of 35

Key blank twists freely, locking and unlocking the door

9

Step 9 of 35

Pulling handle pulls latches in and releases returns the latches to closed position

10

Step 10 of 35

Rear Door pinch weld steel inner removed at ends, sealed at ends, prevent rust

11

Step 11 of 35

UTEMASTER cut-out is free from activator and lettering sits flush with door face

12

Step 12 of 35

Canopy Assembly - All PC trolley marks touched up with touch-up paint to cover

13

Step 13 of 35

Surface activator on faceplate before putting the bulb seal.

14

Step 14 of 35

Surface activator, Bulb (under canopy) seal applied correctly, no glue spillage or marks

15

Step 15 of 35

No spill glue

16

Step 16 of 35

Rear bulb seal pieces applied L+R

17

Step 17 of 35

CLK Looms routed, fastened in place, connector on and tested

18

Step 18 of 35

LED and CLK test

19

Step 19 of 35

Door switches mounted, LED installed on rear door & working

20

Step 20 of 35

Doors close, seal and function correctly, Rear door alignment is even L/R (±2mm)

21

Step 21 of 35

Serial # plate attached

22

Step 22 of 35

Warranty plate mounted to rear door

Warranty plate mounted to rear door

23

Step 23 of 35

Final QC - All doors open smoothly and evenly. Close with little effort.

24

Step 24 of 35

Little effort closing doors.

25

Step 25 of 35

All doors lock/unlock manually using key blank

26

Step 26 of 35

Key lock/unlock

27

Step 27 of 35

No PC defects, door dents, grinding marks, excess weld, glue spillage visible

28

Step 28 of 35

Doors close, stay latched and seal fully.

29

Step 29 of 35

No rattling from locking rods in door (foam on rods to prevent)

30

Step 30 of 35

Roof seal and Rear Door is fully sealed, watertight and tidy

31

Step 31 of 35

CLK switching, LED’s working on/off, latches correct, switch covers on

32

Step 32 of 35

Interior LED light check. Rear door light power is turned on when any door is open. Light must be turned on manually once (by hand). Test each door turns on/off light.

33

Step 33 of 35

Fitting Kit on Poke-Yoke board, despatch list ticked off, warranty tag on key

Fitting Kit on Poke-Yoke board, despatch list ticked off, warranty tag on key

34

Step 34 of 35

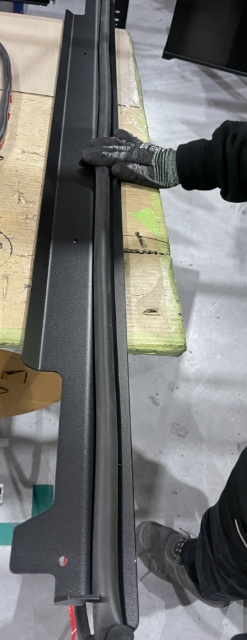

Rear water seal bulb seal applied to tailgate bracket and packaged

Rear water seal bulb seal applied to tailgate bracket and packaged

35

Step 35 of 35

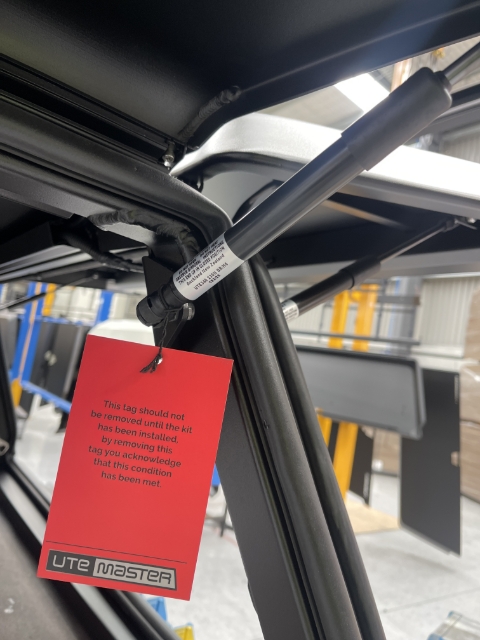

IMPORTANT WARRANTY TAG hung on rear gas strut mount

IMPORTANT WARRANTY TAG hung on rear gas strut mount
