CANOPY, NISSAN NAVARA, D27 2026+

1

Step 1 of 62

2

Step 2 of 62

Contents List (Click to view)

STEP 4: Components List

STEP 12: Tools List

STEP 14: Torque Values

STEP 15: Battery

STEP 16: Fitting Kit Installation

STEP 42: Canopy Fitting

3

Step 3 of 62

STEP 45: Cab to Canopy Wiring

STEP 54: Relay

STEP 55: Central Locking/Door Ajar Alarm

STEP 59: Fuse/Earth

STEP 61: Checkover

STEP 62: QA Sheet

4

Step 4 of 62

5

Step 5 of 62

6

Step 6 of 62

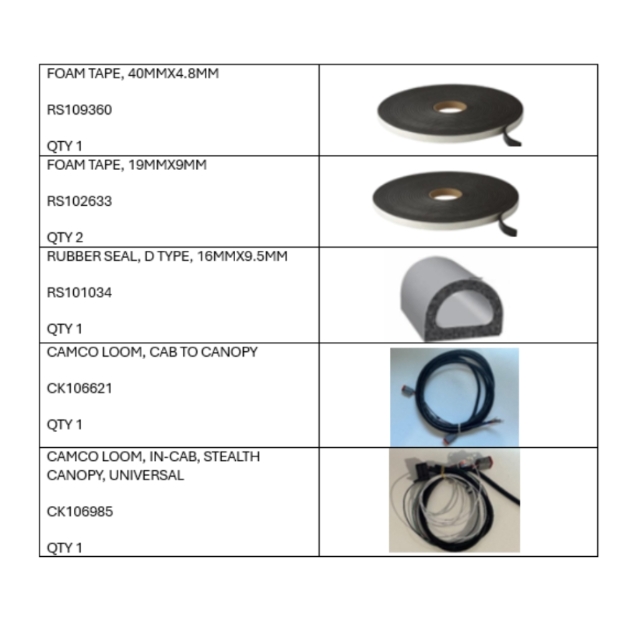

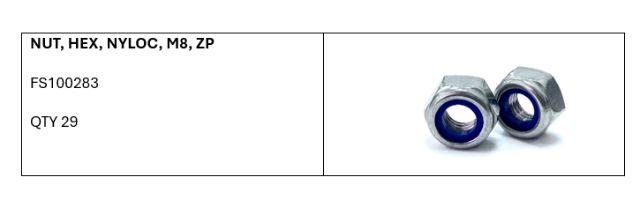

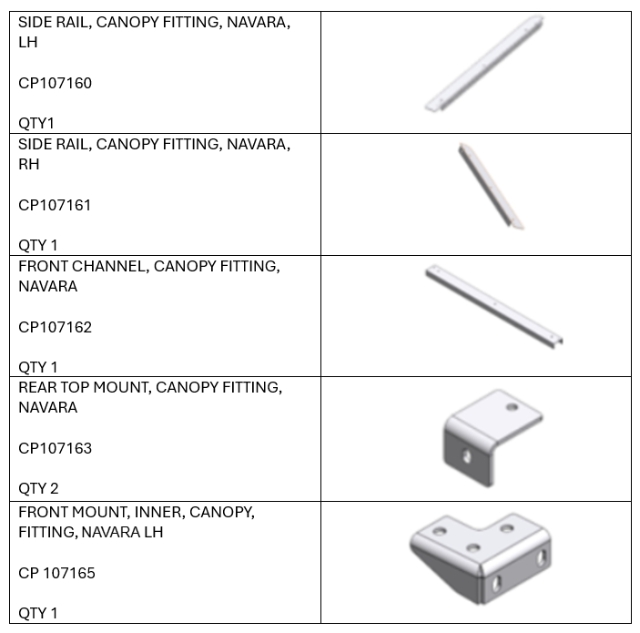

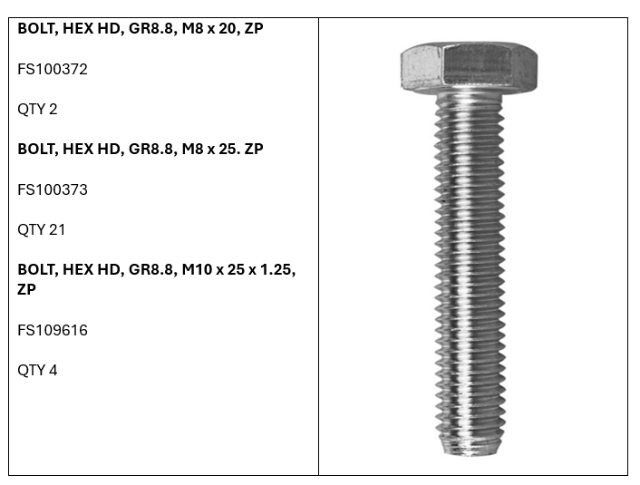

Components List

7

Step 7 of 62

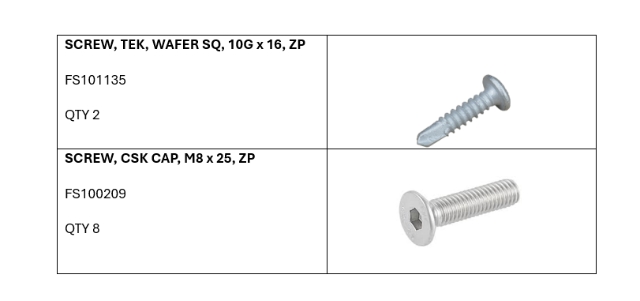

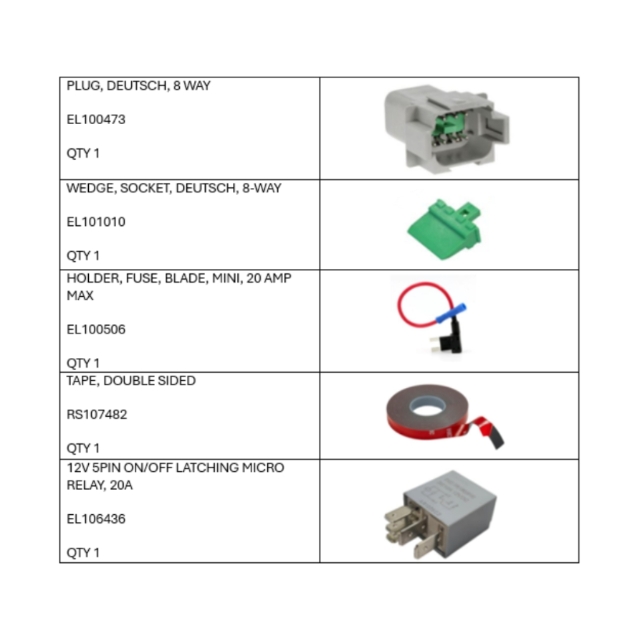

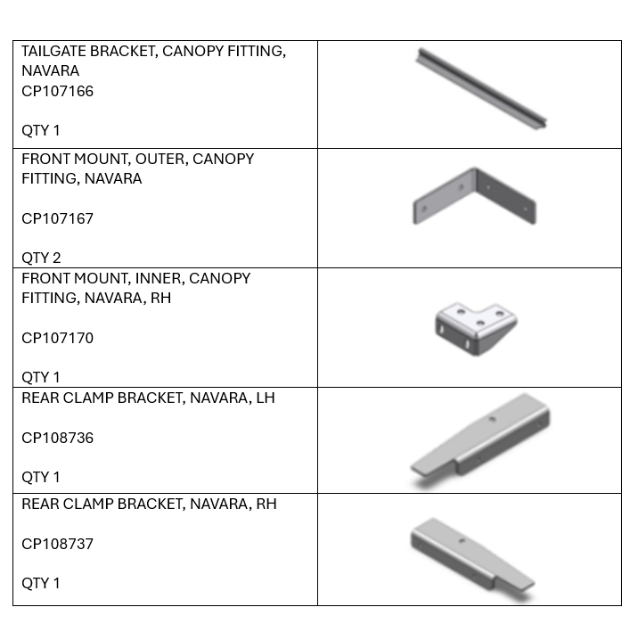

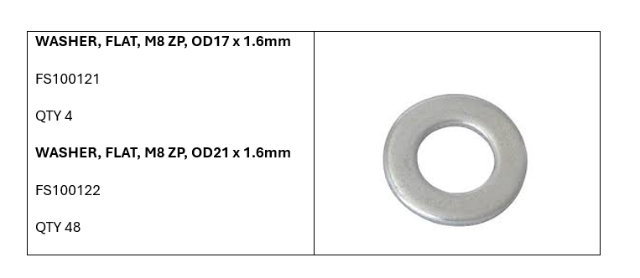

Components List

8

Step 8 of 62

9

Step 9 of 62

10

Step 10 of 62

11

Step 11 of 62

12

Step 12 of 62

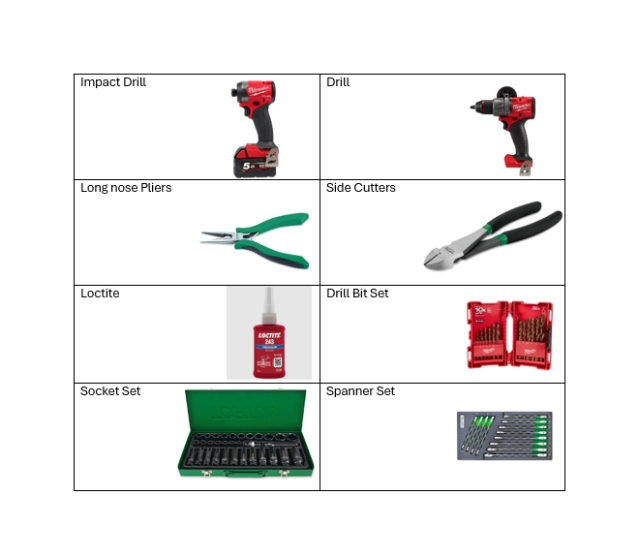

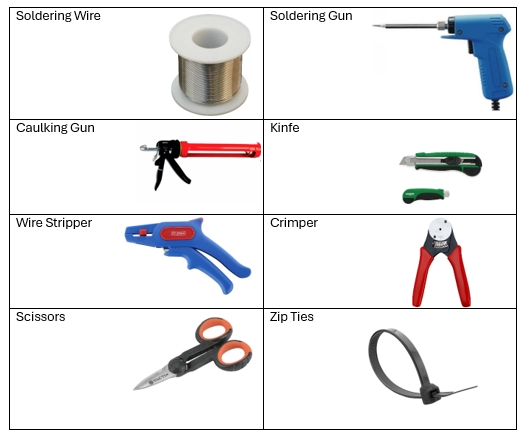

Tools List

13

Step 13 of 62

Tools List

14

Step 14 of 62

Torque Values

15

Step 15 of 62

Remove Negative Battery Terminal

16

Step 16 of 62

Fit 19x9mm foam tape to the front of the wellside.

17

Step 17 of 62

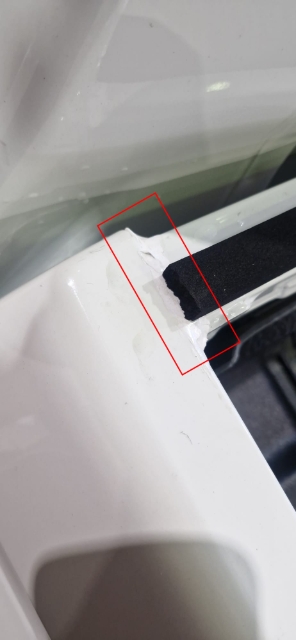

Urethane the front corners of the wellside.

18

Step 18 of 62

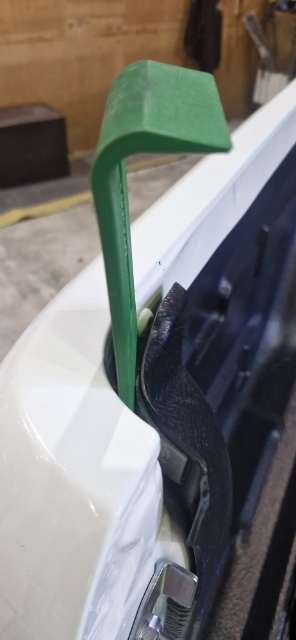

If the wellside has a liner, use a plastic prying tool to make a gap between the liner and the wellside at the rear.

19

Step 19 of 62

Using a hole saw, make a hole in the liner where the factory bolt is located.

20

Step 20 of 62

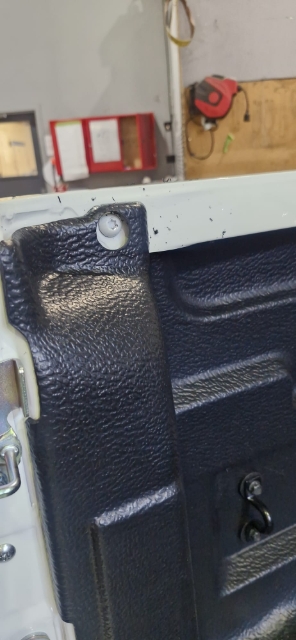

Remove the factory bolt.

21

Step 21 of 62

Remove the factory bolts on the side of the wellside at the front using a tourque wrench.

22

Step 22 of 62

Fit the front mounts (CP107165/70) to the front of the wellside using:

WASHER, FLAT, M10 ZP, x4

HEX HD M10x25, x4

23

Step 23 of 62

Ensure to use Loctite.

24

Step 24 of 62

Fit the rear top mount (CP107163) to the rear of the wellside using:

Hex HD Bolt M8x20, x2

WASHER, FLAT, M8 x2

25

Step 25 of 62

Fit the front crossmember (CP107162) to the front of the wellside

26

Step 26 of 62

27

Step 27 of 62

Tape prep the side rails (CP107160/61) for D-type foam.

28

Step 28 of 62

Fit D-type (RS106939) foam to the side rails as shown.

29

Step 29 of 62

Fit the side rails (CP107160/61) to the side of the wellside.

30

Step 30 of 62

Countersink the holes on the fitting kit as shown on both sides.

31

Step 31 of 62

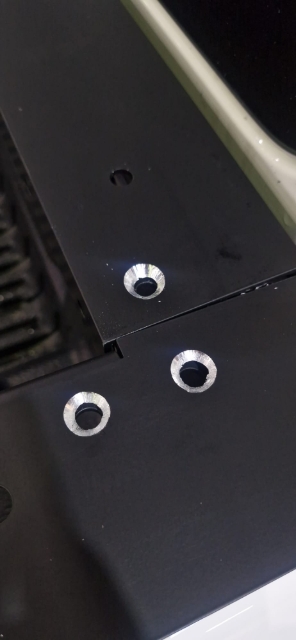

Countersink the holes at the front of the side rails and on the sides of the front crossmember.

32

Step 32 of 62

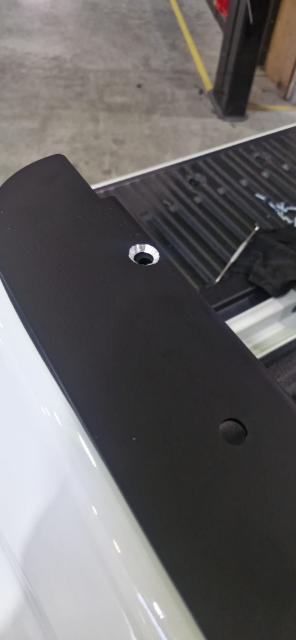

Countersink the rear of the side rails.

33

Step 33 of 62

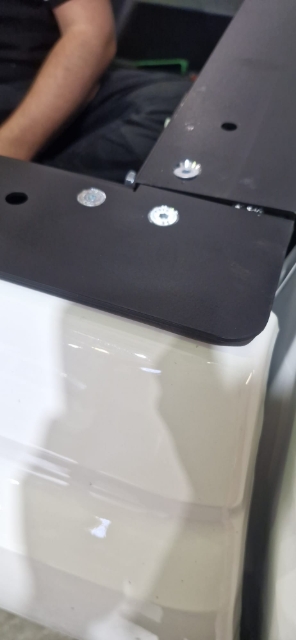

Fit the side rails and front crossmember to the front mounts using:

Screw CSK CAP, M8x25, x6

WASHER, FLAT, M8, x6
NUT, HEX, NYLOC, M8, x6

34

Step 34 of 62

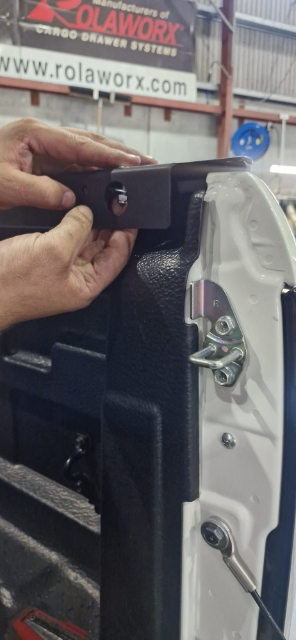

Fit the rear of the side rails to the rear mounts using:

Screw CSK CAP, M8x25, x2

WASHER, FLAT, M8, x2
NUT, HEX, NYLOC, M8, x2

35

Step 35 of 62

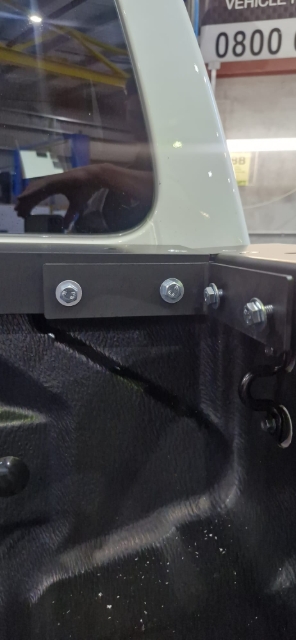

Fit the corner brackets (CP107167) to the front of the wellside using:

WASHER, FLAT, M8, x8
NUT, HEX, NYLOC, M8, x8

Bolt Hex HD, M8x25, x8

36

Step 36 of 62

Tighten all bolts.

37

Step 37 of 62

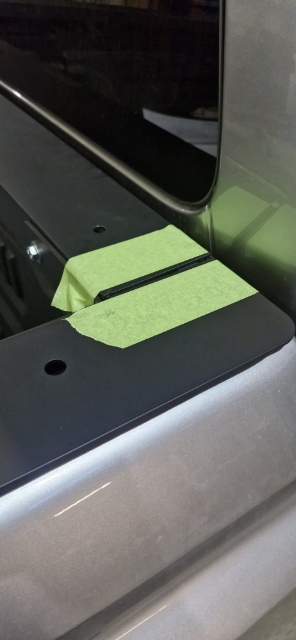

Urethane the corners of the fitting kit.

38

Step 38 of 62

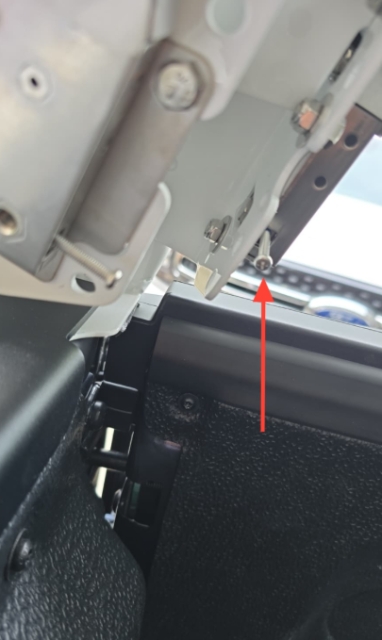

Remove the factory screws from the tailgate. Keep them for reinstalling.

39

Step 39 of 62

Tape the tailgate bracket before fitting.

40

Step 40 of 62

screw the tailgate liner to the tailgate bracket.

41

Step 41 of 62

Touch up the screw.

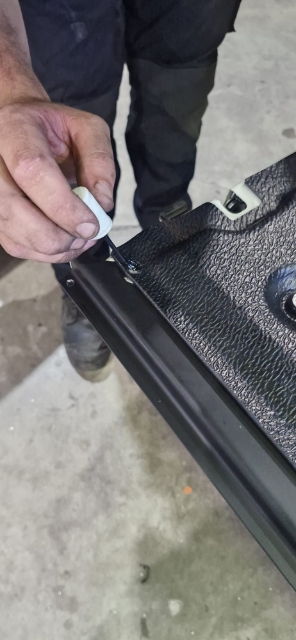

42

Step 42 of 62

Apply foam tape to the bottom of the canopy, 40 x 4.8mm.

43

Step 43 of 62

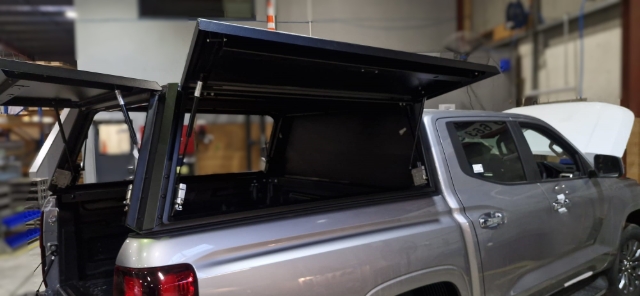

Lift the canopy onto the ute's wellside with at least 4 people.

44

Step 44 of 62

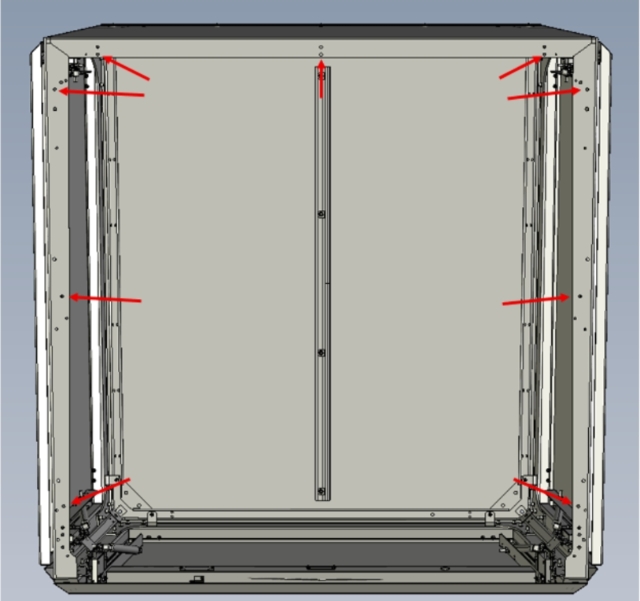

Bolt Location for mounting the canopy to the fitting kit.

45

Step 45 of 62

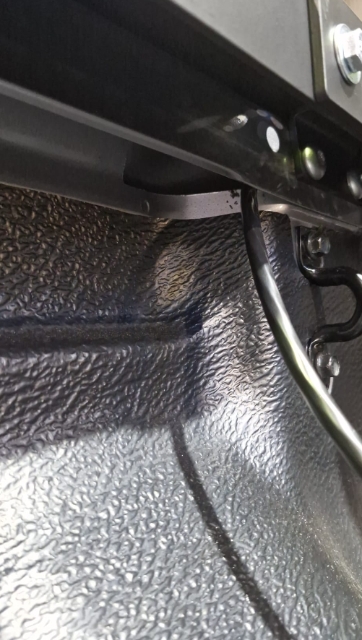

Thread the Camco loom through the access point [refer to image] and pull it down the wellside to the chassis level.

46

Step 46 of 62

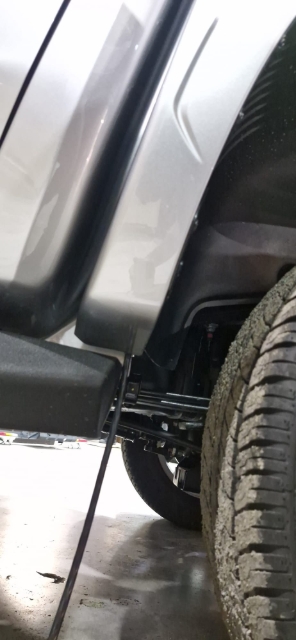

Run the wire along the chassis ensure it sits along the top so it can't drag on the ground

47

Step 47 of 62

Pass the loom through the factory grommet located underneath the cab floor.

48

Step 48 of 62

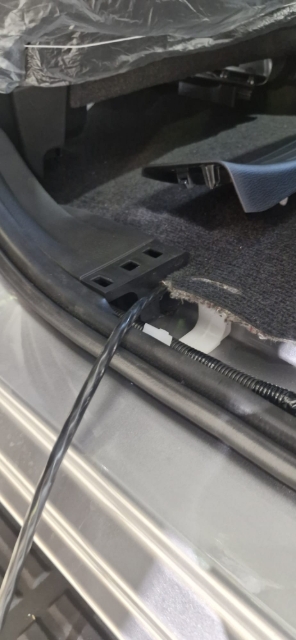

Pull the loom up through the passenger side in the rear of the cab.

49

Step 49 of 62

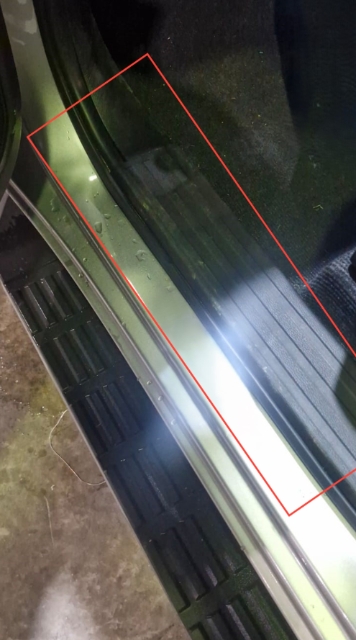

Unclip the passenger side door sill and kick panel trims to allow for loom routing.

50

Step 50 of 62

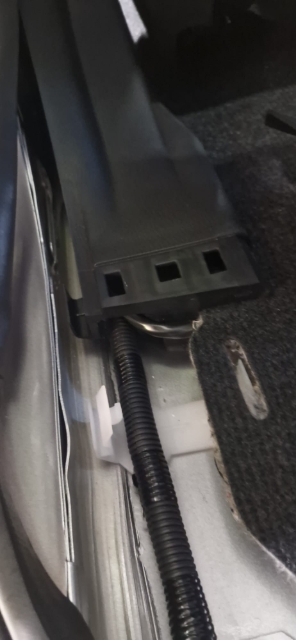

Route the loom to the middle pillar through to the front of the cab.

51

Step 51 of 62

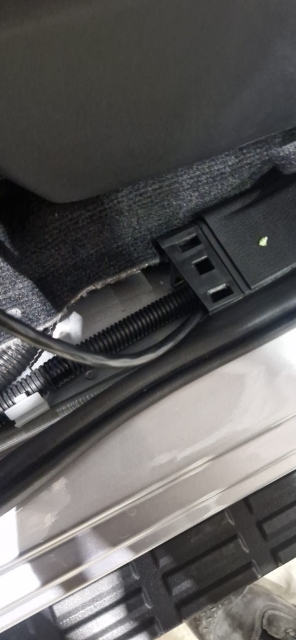

Pull the loom all the way through to the front.

52

Step 52 of 62

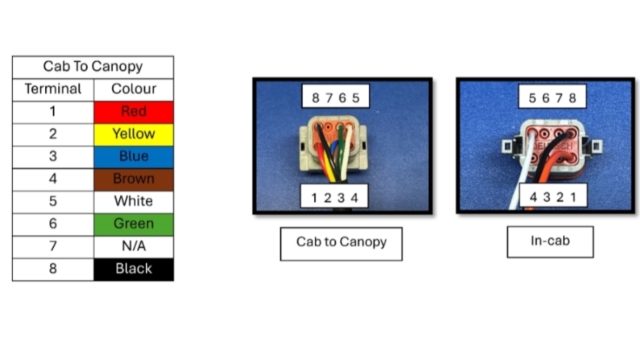

Connect the loom to the Deutsch plug and connect the corresponding colours to the right number.

53

Step 53 of 62

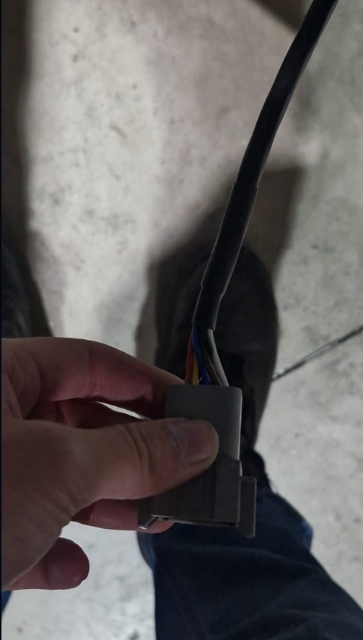

Loom connected to the deutch plug.

54

Step 54 of 62

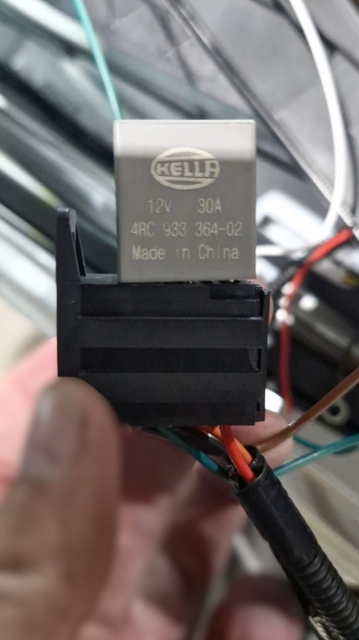

Connect the relay (EL106438) to the relay box as shown.

55

Step 55 of 62

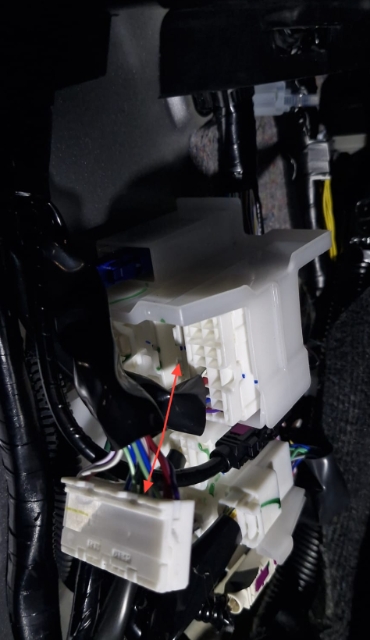

After opening up the trim, locate this junction of wiring and unclip the plug shown.

56

Step 56 of 62

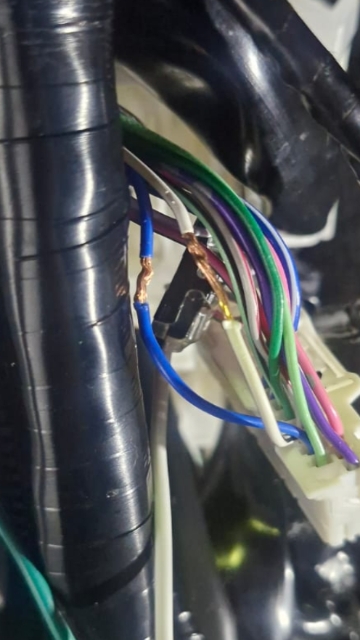

<p>Using a pair of wire strippers, strip back approximately 10mm of insulation from both the Blue wire and the White/Black (White with Black stripe) wire.</p>

Using a pair of wire strippers, strip back approximately 10mm of insulation from both the Blue wire and the White/Black (White with Black stripe) wire.

57

Step 57 of 62

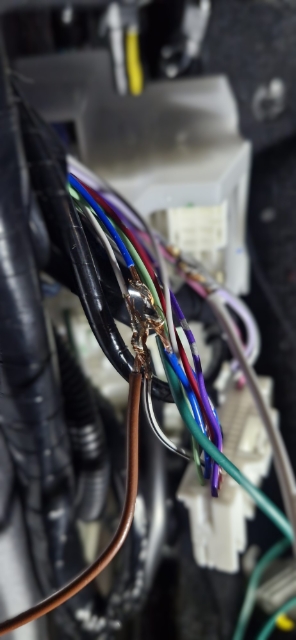

• Connect & Solder: Brown → White/Black | Green → Blue. (Ensure 100% solder coverage).• T-Joint: Cut/strip the solid White wire and place it into the T-Joint.

58

Step 58 of 62

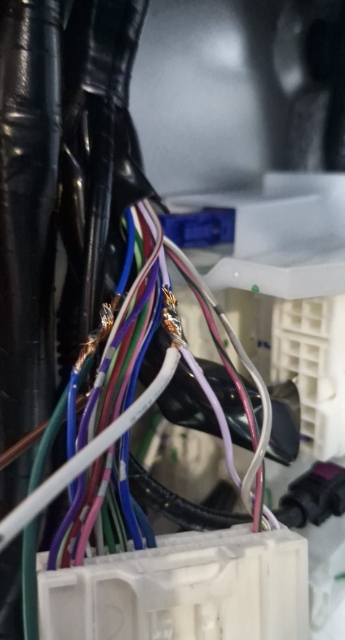

Find the light purple wire and connect the white wire from the in-cab wiring to it. Ensure to solder and wrap with electrical tape.

59

Step 59 of 62

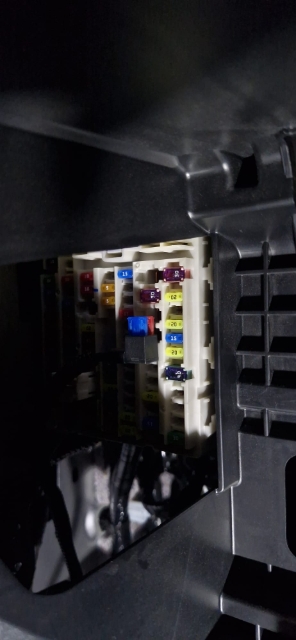

Place the fuse holder in the place shown.

60

Step 60 of 62

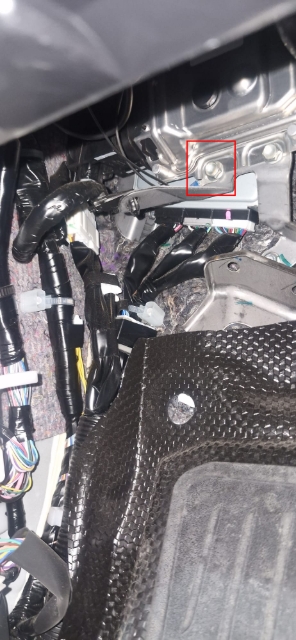

Fit the earth to the factory earth as shown.

61

Step 61 of 62

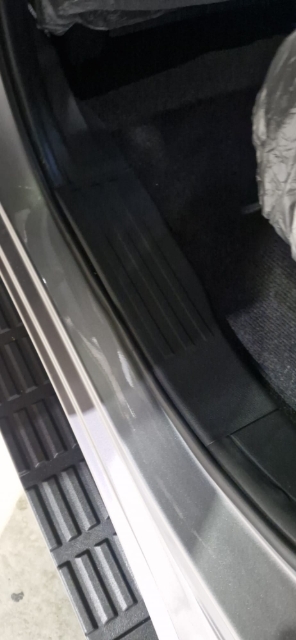

<p>Reinstall the passenger side trim panels, ensuring all clips engage correctly and the panels sit flush. Bundle any excess wiring with zip ties and stow it neatly behind the trim to prevent rattles or interference.</p>

Reinstall the passenger side trim panels, ensuring all clips engage correctly and the panels sit flush. Bundle any excess wiring with zip ties and stow it neatly behind the trim to prevent rattles or interference.

62

Step 62 of 62

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If you have issues with instructions and need assistance, please contact.

roman@camcoindustries.co.nz

+64 21 349 001

If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
