Mounts Layout: DMax-BT50, S-Cab, 2020+ “New”

1

Step 1 of 6

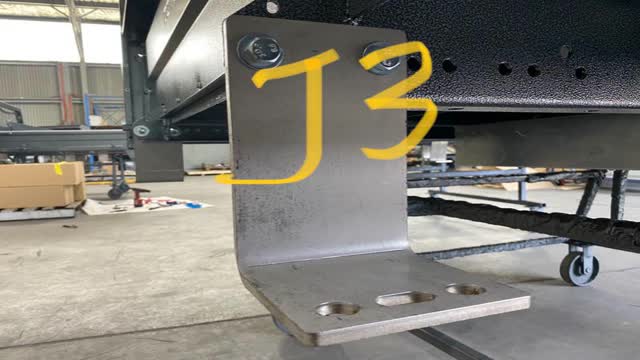

<p><strong>Front Mounts</strong></p>
<ul>
<li>Laser Etched with "J3"</li>
<li>In Front Holes</li>
</ul>

Front Mounts

Laser Etched with "J3"
In Front Holes

2

Step 2 of 6

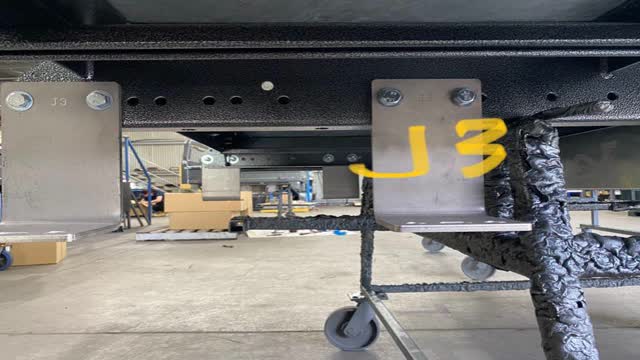

<p><strong>2nd Mounts</strong></p>
<ul>
<li>Laser Etched with "J3"</li>
<li>From front of 1st mount to front of 2nd mount is 386mm</li>
</ul>

2nd Mounts

Laser Etched with "J3"
From front of 1st mount to front of 2nd mount is 386mm

3

Step 3 of 6

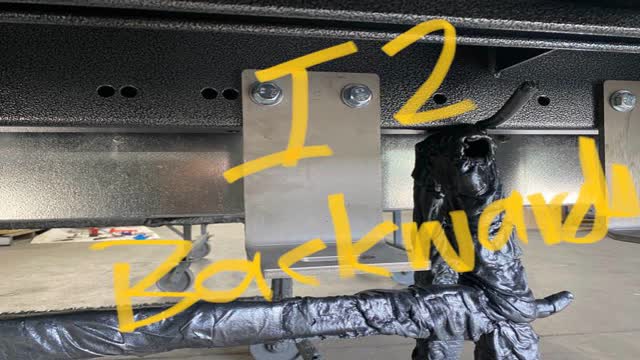

<p><strong>3rd mount</strong></p>
<ul>
<li>Laser Etched with "I2" <strong>However, it is BACKWARDS</strong></li>
<li>From front of 1st mount to front of 3rd mount is 1580mm</li>
</ul>

3rd mount

Laser Etched with "I2" However, it is BACKWARDS
From front of 1st mount to front of 3rd mount is 1580mm

4

Step 4 of 6

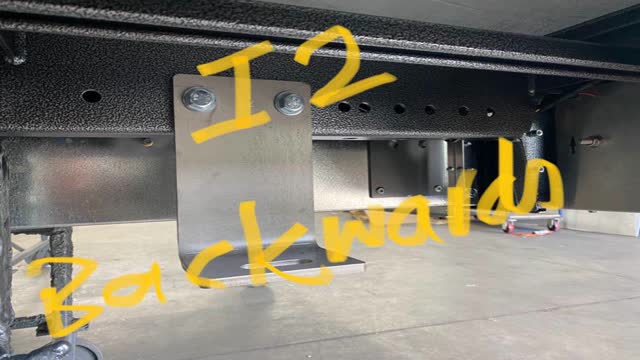

<p><strong>4th Mount</strong></p>
<ul>
<li>Laser Etched with "I2" <strong>However, it is BACKWARDS</strong></li>
<li>From front of 1st mount to front of 4th mount is 1930mm</li>
</ul>

4th Mount

Laser Etched with "I2" However, it is BACKWARDS
From front of 1st mount to front of 4th mount is 1930mm

5

Step 5 of 6

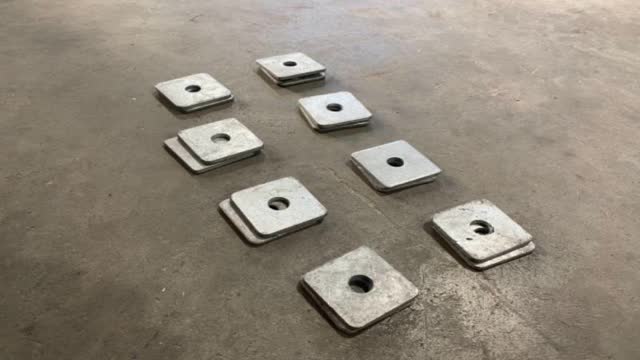

<p>Include 5mm packers</p>

Include 5mm packers

6

Step 6 of 6

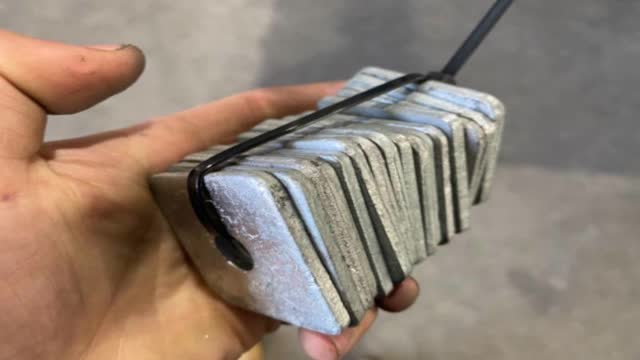

<p>5mm Spacers x 16</p>

5mm Spacers x 16
