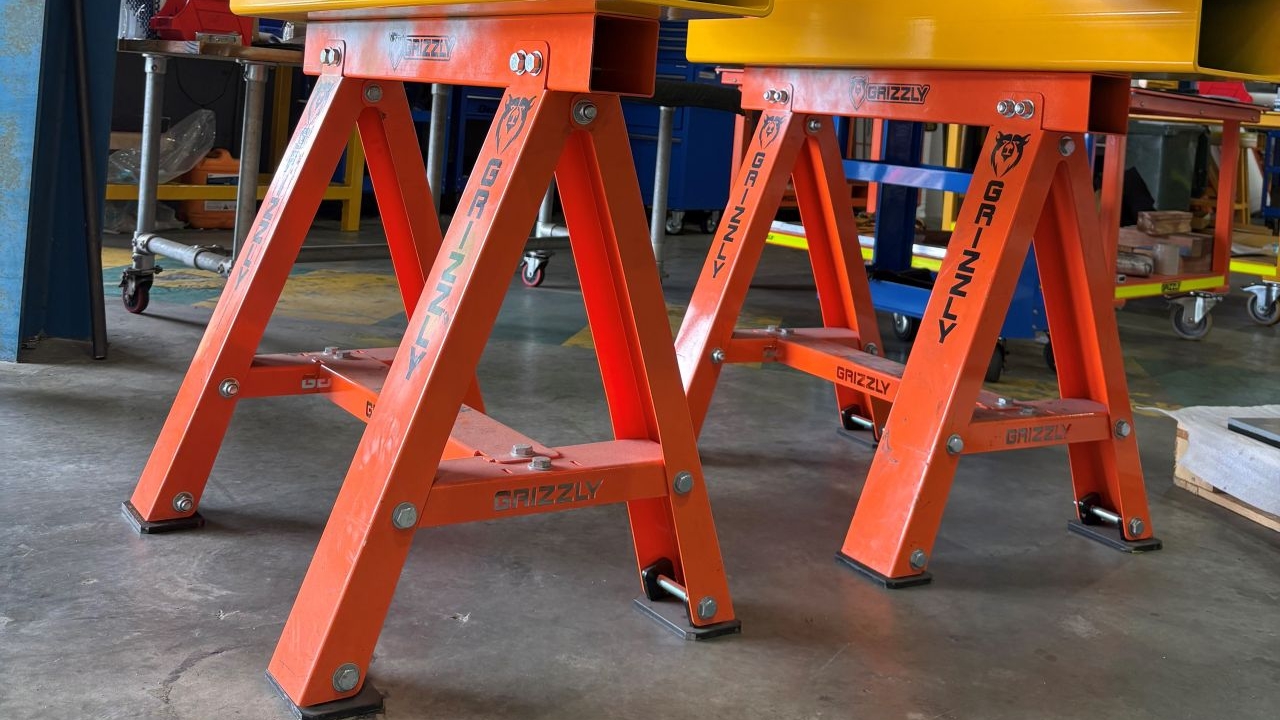

Trestle Assembly
Easily assembly your 2T and 5T trestle with ease by following our step-by-step guide.
Easily assembly your 2T and 5T trestle with ease by following our step-by-step guide.
1
Step 1 of 5

Tools Required

  • Pair of 24mm combination wrench spanners.

OR

  • 24mm combination wrench spanner and ratchet with 24mm socket

Unfold the trestle legs and lock into place.

  1. Lay the trestle leg flat on the ground.

  2. Slowly unfold the leg

  3. Unfasten the M16 bolt before the slots on the bracing engage with the round bar on the leg.

*Scroll across for next step

2
Step 2 of 5

  1. Align the hole on the bracing with the holes on the leg, and then refasten the M16 bolt.

  2. Position the assembled leg in a standing position and repeat the steps for the other leg.

*Scroll across for next step

3
Step 3 of 5

  1. Unfasten both of the inside M16 bolts on each leg.

*Scroll across for next step

4
Step 4 of 5

  1. Place the two trestles legs side by side.

  2. Align the holes on the bracing with the holes on each leg and re-fasten the M16 bolt

*Scroll across for next step

5
Step 5 of 5

  1. Unfasten the 4 sets of M16 bolts

  2. Place the top onto the trestle legs and align with the holes on the trestle base.

  3. Refasten the 4 sets of M16 bolts, washers and nuts.

  4. Ensure all fastenings are tight and the trestle is ready for use.
