WideTrac - Adjust Belt Tension
This Knowby will run you through step by step on how to Adjust Belt Tension on a WideTrac
This Knowby will run you through step by step on how to Adjust Belt Tension on a WideTrac
1
Step 1 of 5

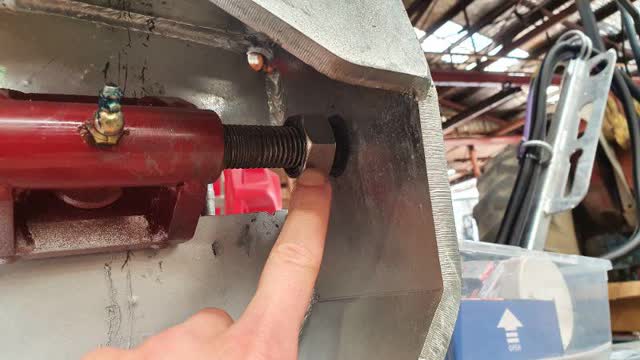

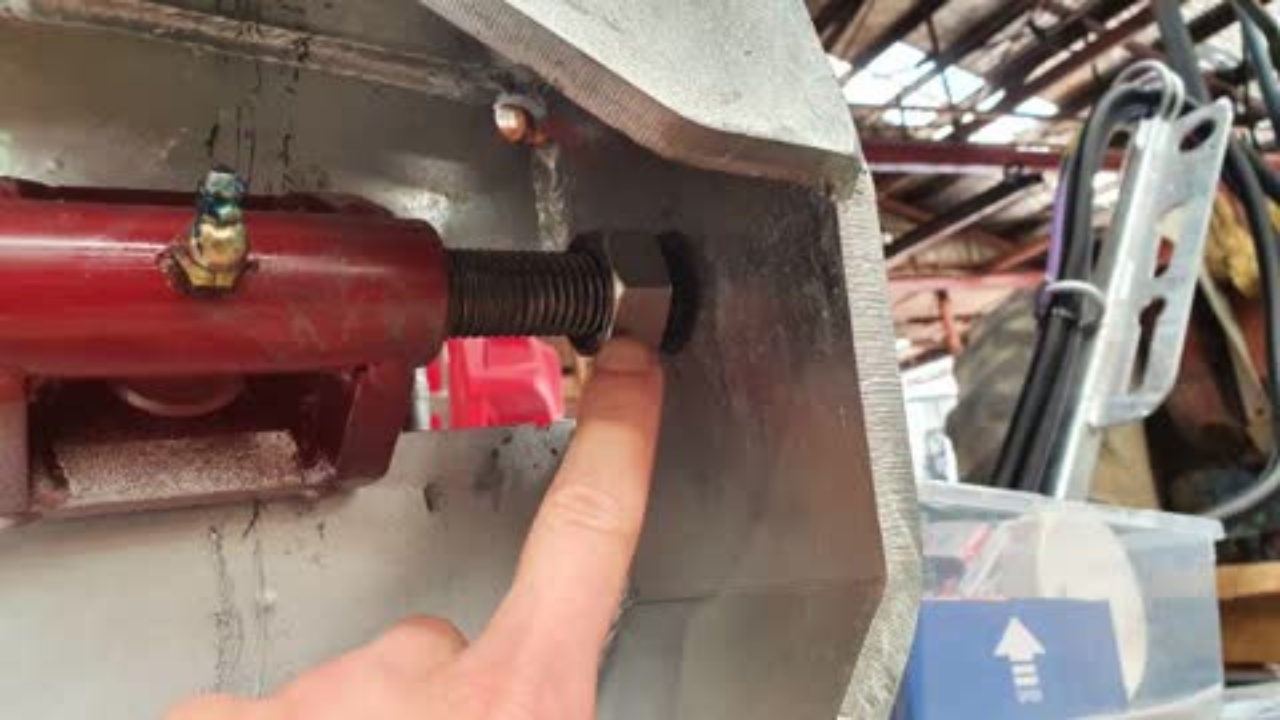

<p>Loosen the locking nut</p>

Loosen the locking nut

2
Step 2 of 5

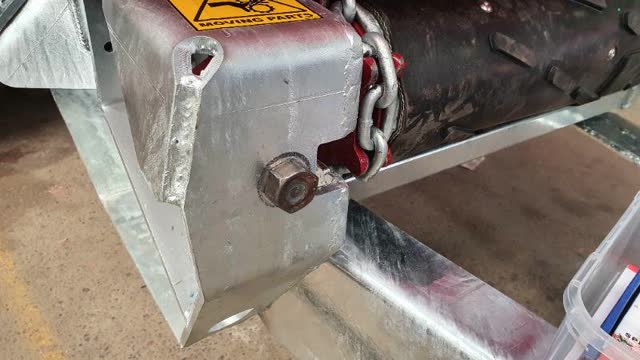

<p>Turn adjuster bolt counterclockwise to loosen or clockwise to tighten</p>

Turn adjuster bolt counterclockwise to loosen or clockwise to tighten

3
Step 3 of 5

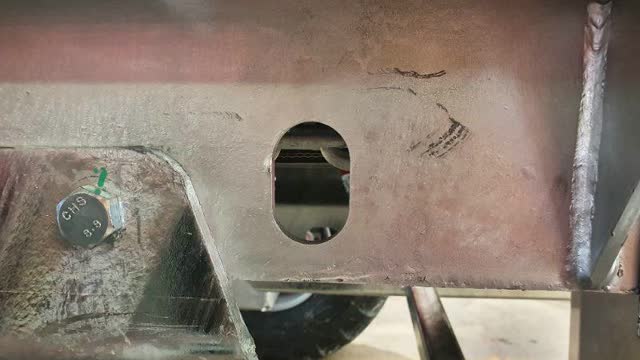

<p>Check tension by looking through chain tension indicators on rear of machine. A correctly tensioned chain/belt will have the chain link sitting near the middle of the slot.</p>

Check tension by looking through chain tension indicators on rear of machine. A correctly tensioned chain/belt will have the chain link sitting near the middle of the slot.

4
Step 4 of 5

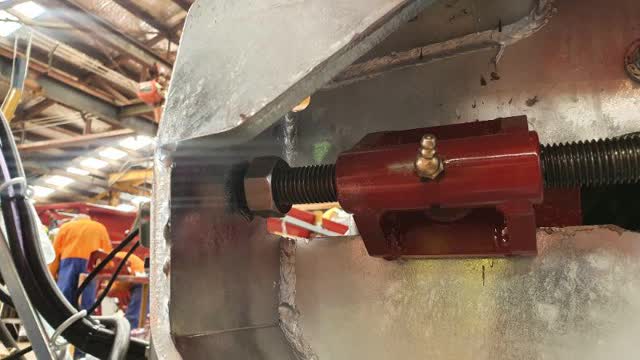

<p>Tighten the lock nut once correctly tensioned</p>

Tighten the lock nut once correctly tensioned

5
Step 5 of 5

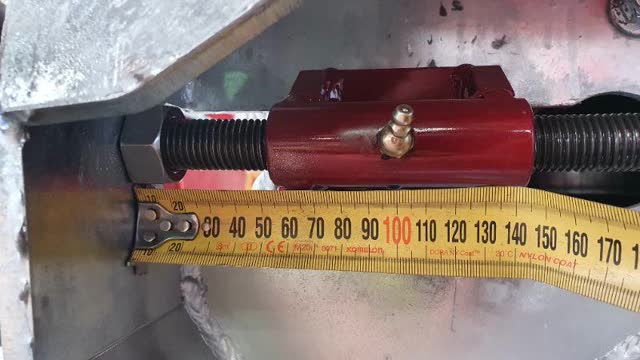

<p>Measure the distance between the adjuster and front chassis profile and repeat on the opposite side to match the measured dimension.</p>

Measure the distance between the adjuster and front chassis profile and repeat on the opposite side to match the measured dimension.
