UHF Mount Instructions - UMHX
N80 Hilux Tools needed: 10mm spanner or socket.
N80 Hilux Tools needed: 10mm spanner or socket.
1
Step 1 of 4

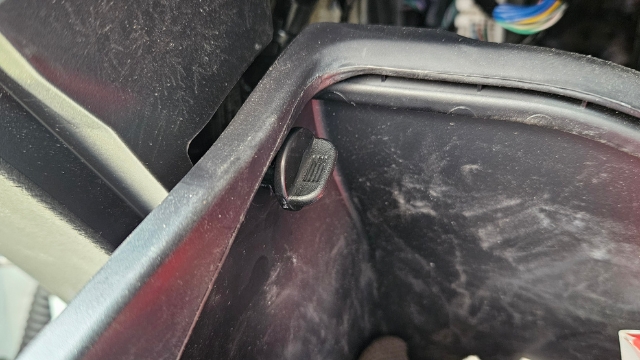

<p><strong>Step 1</strong>: Remove glove box untwisting the pins on each side and unclipping it from the hinges.</p>

Step 1: Remove glove box untwisting the pins on each side and unclipping it from the hinges.

2
Step 2 of 4

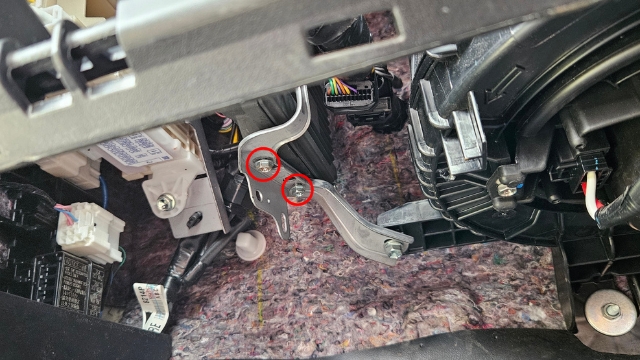

<p><strong>Step 2</strong>: Partially loosen the two bolts indicated</p>

Step 2: Partially loosen the two bolts indicated

3
Step 3 of 4

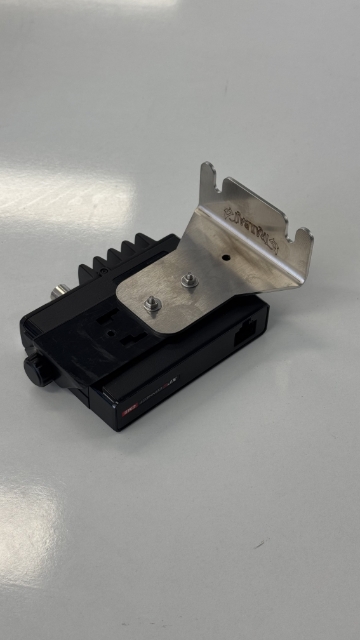

<p><strong>Step 3:</strong> Attach UHF to the mount as pictured.</p>

Step 3: Attach UHF to the mount as pictured.

4
Step 4 of 4

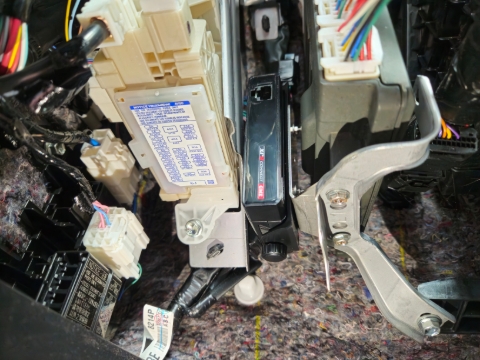

<p><strong>Step 4:</strong> Slide the bracket into position as pictured, and tighten bolts from step 2.</p><p>Replace glovebox after wiring is complete.</p>

Step 4: Slide the bracket into position as pictured, and tighten bolts from step 2.

Replace glovebox after wiring is complete.
