CHASSIS MOUNTS, TRITON 2024+/NAVARA 2026+ DC
1
Step 1 of 14
2
Step 2 of 14

Contents (Click to view)

​STEP 3: Components List​

​STEP 8: Tools List​

​STEP 9: Torque Values​

​STEP 10: Hole Diagram​

​STEP 11: Chassis Mounts​

​STEP 14: QA Sheet​

3
Step 3 of 14

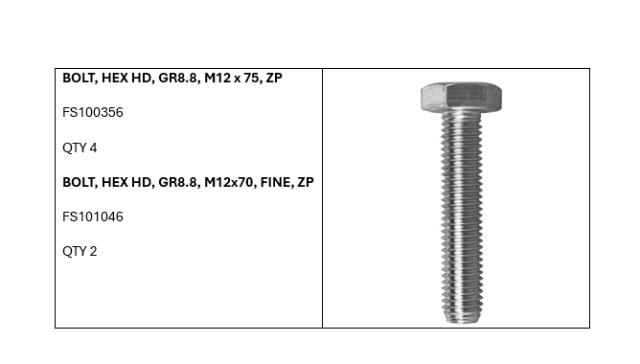

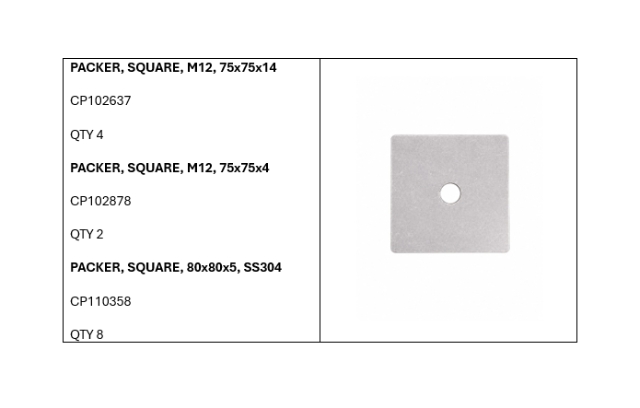

<p>Components List</p>

Components List

4
Step 4 of 14

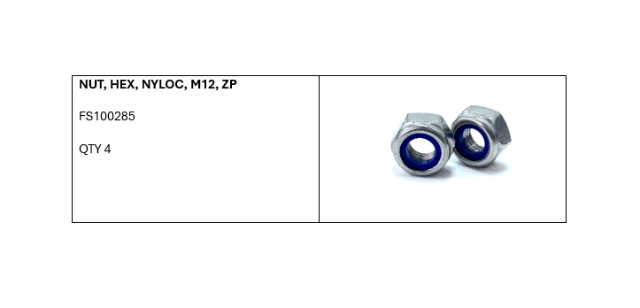

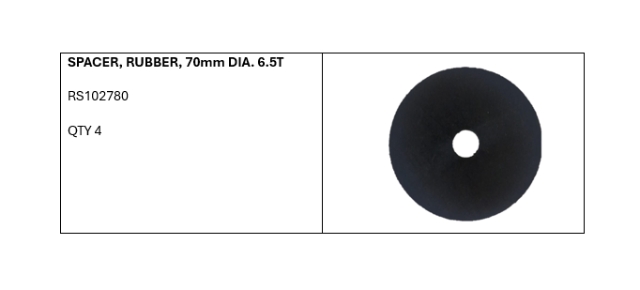

<p>Components List</p>

Components List

5
Step 5 of 14

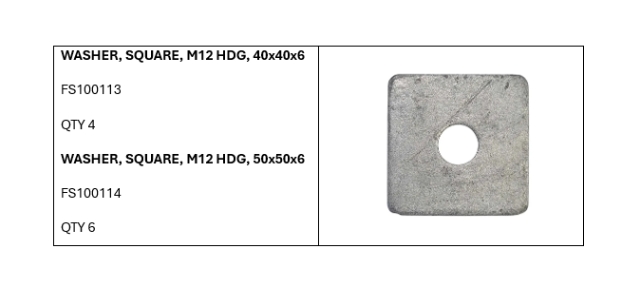

<p>Components List</p>

Components List

6
Step 6 of 14
<p>Components List</p>

Components List

7
Step 7 of 14
<p>Components List</p>

Components List

8
Step 8 of 14

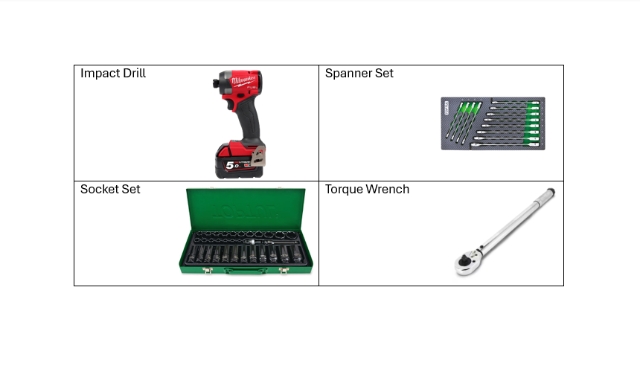

<p>Tools List</p>

Tools List

9
Step 9 of 14
<p>Torque Values</p>

Torque Values

10
Step 10 of 14

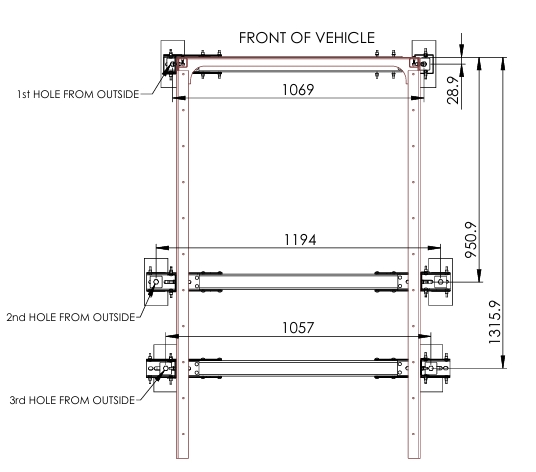

<p>Diagram for hole location</p>

Diagram for hole location

11
Step 11 of 14

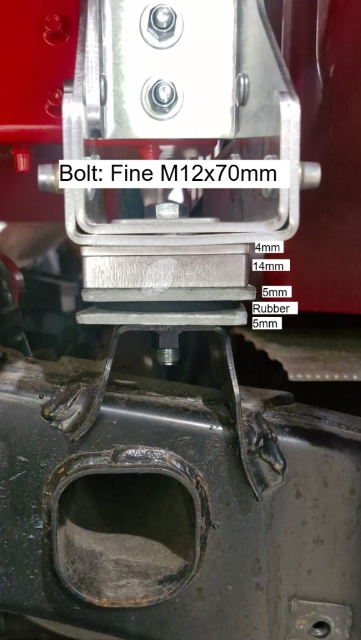

<p>Triton DC Front</p><p>Distance to the front of chassis: 28.9mm</p><p>Bolt hole: First hole from outside</p>

Triton DC Front

Distance to the front of chassis: 28.9mm

Bolt hole: First hole from outside

12
Step 12 of 14

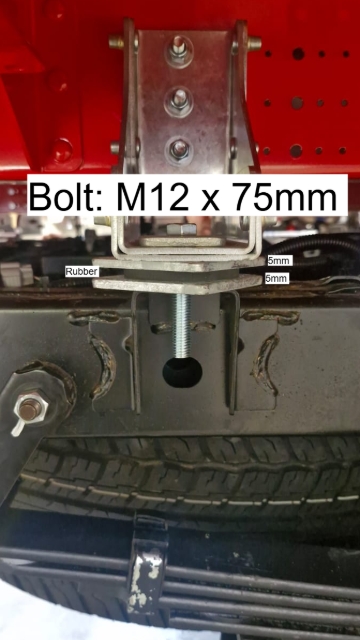

<p>Triton DC Middle</p><p>Distance to the front of chassis: 950.9mm</p><p>Bolt hole: 2nd hole from outside.</p>

Triton DC Middle

Distance to the front of chassis: 950.9mm

Bolt hole: 2nd hole from outside.

13
Step 13 of 14

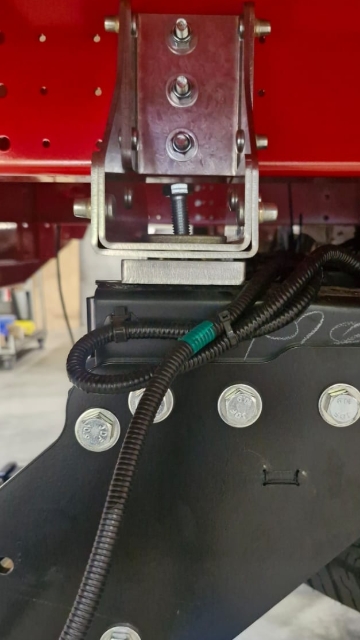

<p>Triton DC Back</p><p>Distance to the front of chassis: 1315.9mm</p><p>Bolt hole: 3rd hole from outside.</p>

Triton DC Back

Distance to the front of chassis: 1315.9mm

Bolt hole: 3rd hole from outside.

14
Step 14 of 14
