Centre Axle Fabrication
Part #: 485-3013. Multi tool, standard centre axle.
Part #: 485-3013. Multi tool, standard centre axle.
1
Step 1 of 14

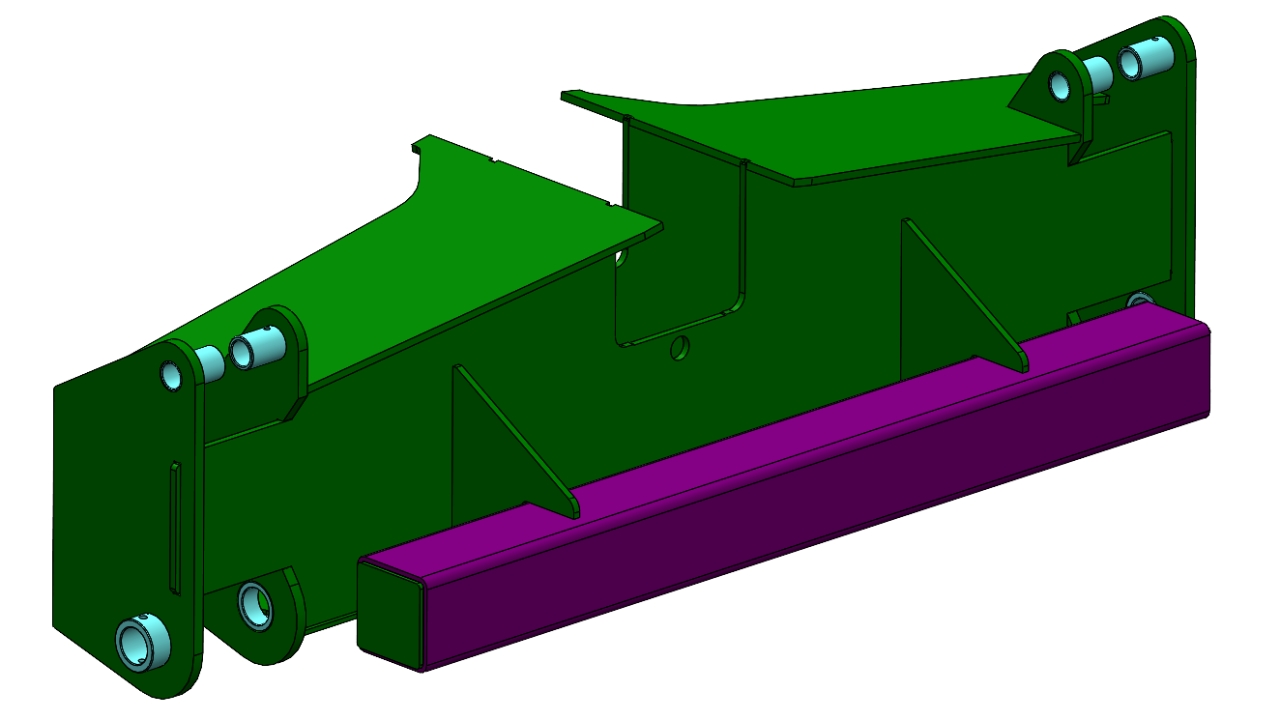

Looks like this when complete

2
Step 2 of 14

The sub assembly can/should be a robot part.

The following process is for tacking up this assembly. Final welding is robot.

3
Step 3 of 14

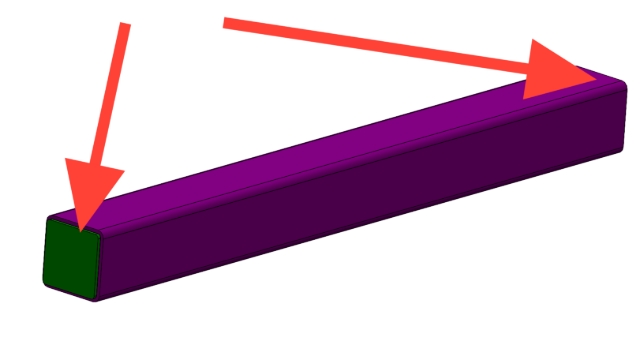

<p>Weld on the end caps onto toolbar</p>

Weld on the end caps onto toolbar

4
Step 4 of 14

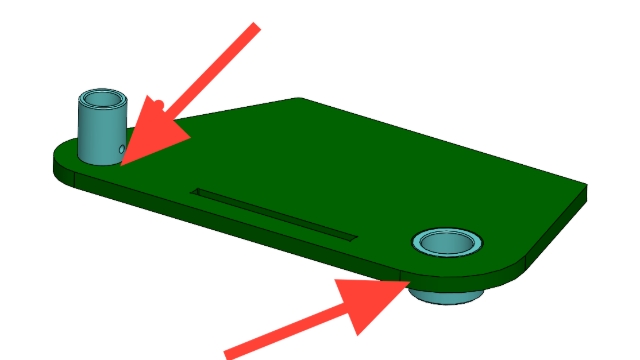

<p>Robot weld the bushes. There are 2 x left hand, 2 x right hand</p>

Robot weld the bushes. There are 2 x left hand, 2 x right hand

5
Step 5 of 14

Start with the base plate, then add the 2 x baffle plates

6
Step 6 of 14

Add the rear wall.

Notice it has a crane hook

7
Step 7 of 14

Add the front wall.

Notice it has a crane hook

8
Step 8 of 14

Add the tool bar. Make sure it is centred.

9
Step 9 of 14

Add the inside wheel arm mount plates

Repeat for other side

10
Step 10 of 14

Add outer plates

Repeat for both sides

11
Step 11 of 14

Slide in the rod

12
Step 12 of 14

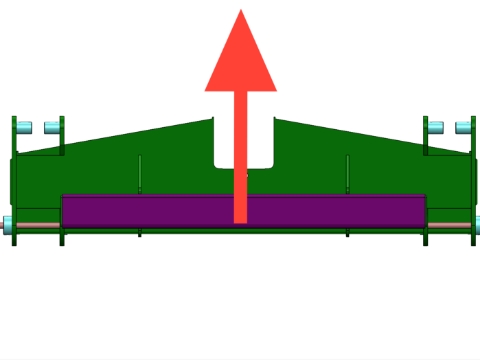

<p>With Crane, lift to pre-set the wheel arm pivots</p><p></p><p>Use a level to pre-set. </p>

With Crane, lift to pre-set the wheel arm pivots

Use a level to pre-set.

13
Step 13 of 14

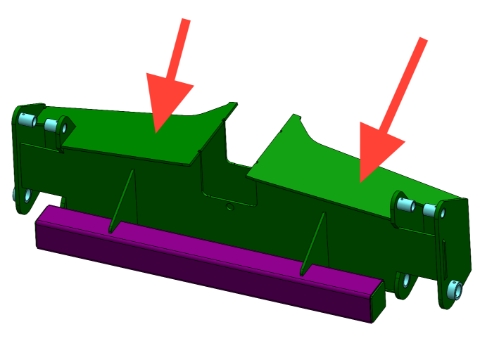

<p>Add the top plates</p>

Add the top plates

14
Step 14 of 14

Transfer to the Robot welder.

Robot jig not yet designed - Derek
