Re-Fit Camera: RAM, DS Model, 1500
1
Step 1 of 9
<p>Looks like this when done</p>

Looks like this when done

2
Step 2 of 9

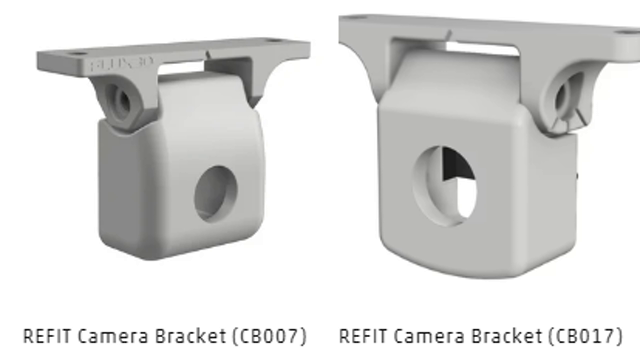

<p>You will be supplied with 2 camera Brackets. There was a change mid build, so both are supplied.</p> <ul> <li>CB007</li> <li>CB017</li> </ul>

You will be supplied with 2 camera Brackets. There was a change mid build, so both are supplied.

  • CB007
  • CB017
3
Step 3 of 9

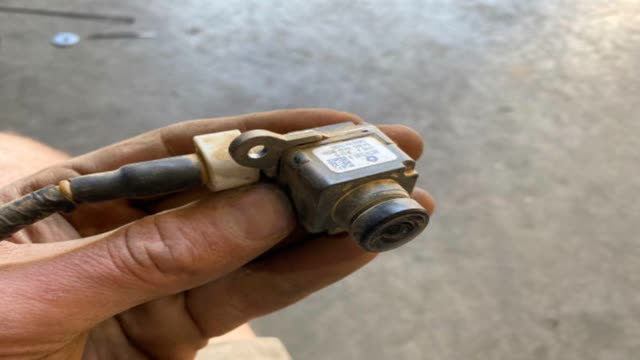

<p>Get the camera. White sticker time TOP</p>

Get the camera. White sticker time TOP

4
Step 4 of 9

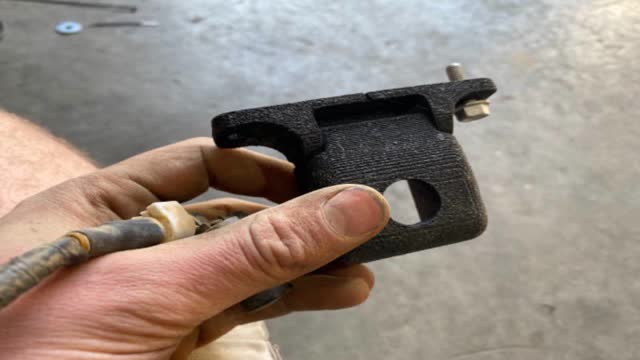

<p>Identify the supplied camera bracket (you may need to try both)</p>

Identify the supplied camera bracket (you may need to try both)

5
Step 5 of 9

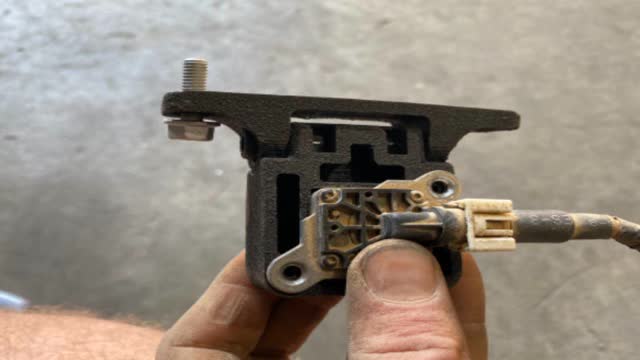

<p>Fit camera to bracket</p>

Fit camera to bracket

6
Step 6 of 9

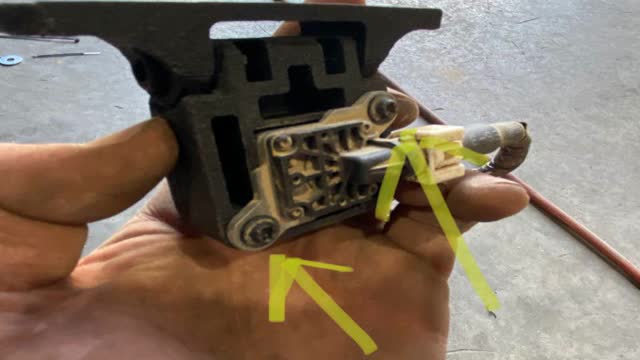

<p>Fit original screws</p>

Fit original screws

7
Step 7 of 9

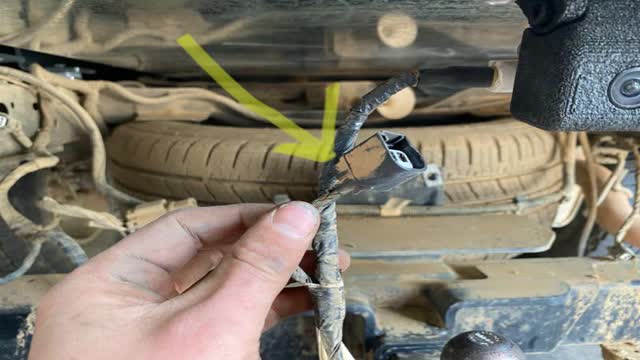

<p>This plus was for the locking mechanism on tub - it is not reused.</p>

This plus was for the locking mechanism on tub - it is not reused.

8
Step 8 of 9

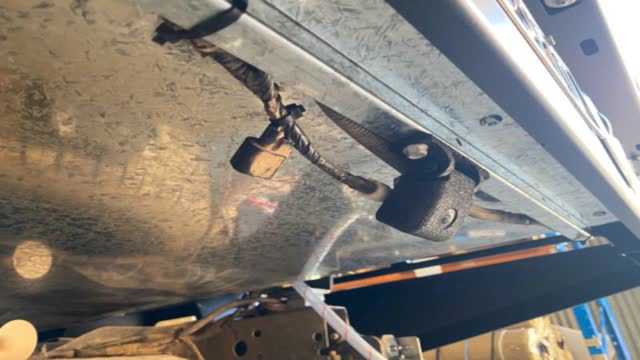

<p>Fit camera to tray, secure wiring with zip ties</p>

Fit camera to tray, secure wiring with zip ties

9
Step 9 of 9

During final wiring check, adjust angle of camera bracket. Put vehicle into reverse to check angle
