Install rear drawer stiffener
Install rear drawer stiffener
Install rear drawer stiffener
1
Step 1 of 7Install drawer siffener.
2
Step 2 of 7Slide to the end of the drawer body.
3
Step 3 of 7

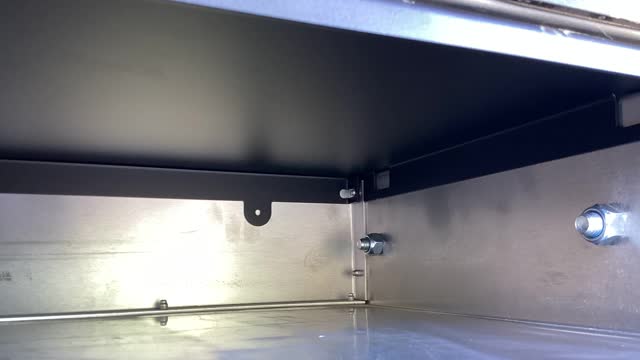

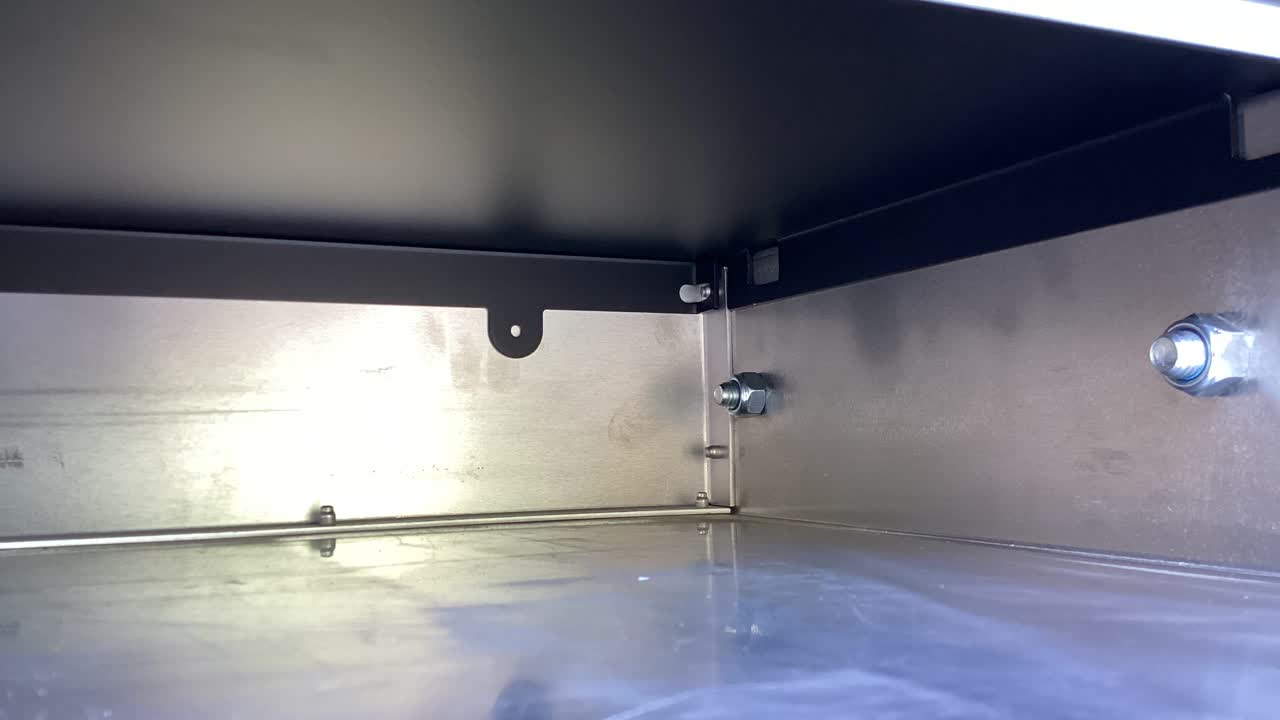

Ensure the locating slots are over the rivets in the corners.
4
Step 4 of 7Ensure stiffeners is sitting downwards as far as possible. Match drill the 2x holes in the front tabs with a 5mm drill bit.
5
Step 5 of 7Install the 2x m5x12 bolts. Use anti-seize to prevent threads binding
6
Step 6 of 7Install 2x m5 nylock nuts on the out side.
7
Step 7 of 7Tighten both bolts and nuts.
