Fuel Filler: "V3 Headboard" Ranger/BT50, Extra Cab
1
Step 1 of 5

Suits: Ranger 2012-Present BT50 2012-2020 (different instruction for the "New" RG BT50)

2
Step 2 of 5

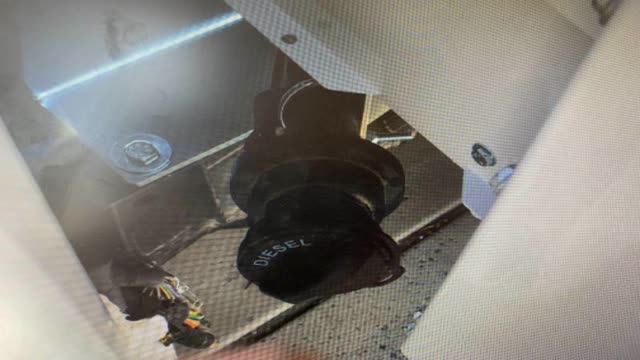

<p>Like this when done</p> <p>It is filled from the front side of the Tray Headboard</p>

Like this when done

It is filled from the front side of the Tray Headboard

3
Step 3 of 5

Identify supplied bracket

Marked with "101-276"

4
Step 4 of 5

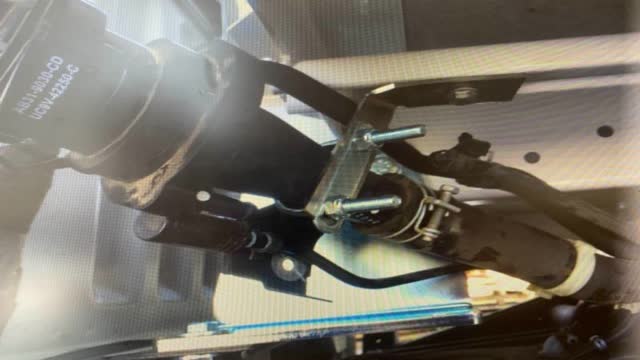

<p>Fit bracket to the to inner rail, and to the Fuel neck as shown</p>

Fit bracket to the to inner rail, and to the Fuel neck as shown

5
Step 5 of 5

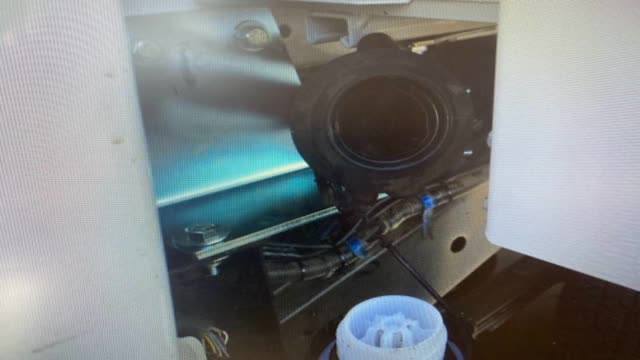

<p>Shown here with fuel cap off Make sure it is at a nice angle which can be filled easily</p>

Shown here with fuel cap off Make sure it is at a nice angle which can be filled easily
