CHASSIS MOUNTS, D-MAX/BT-50 EC
1
Step 1 of 11
2
Step 2 of 11

Contents (Click to view)

​STEP 3: Components List​

​STEP 5: Tools List​

​STEP 6: Torque Values​

​STEP 7: Hole Diagram​

​STEP 8: Chassis Mounts​

​STEP 11: QA Sheet​

3
Step 3 of 11

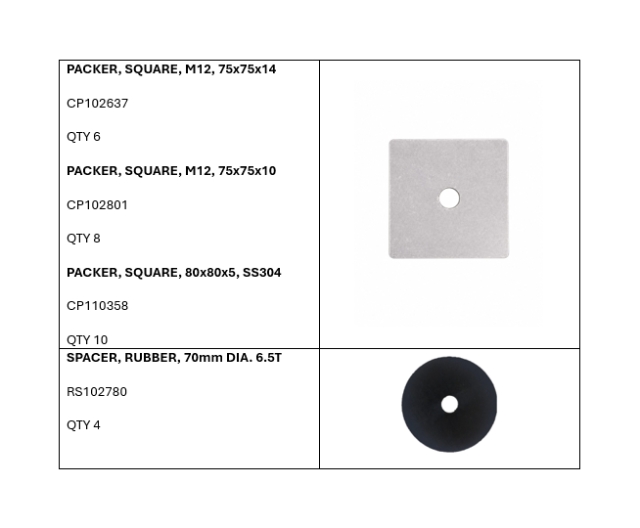

<p>Components</p>

Components

4
Step 4 of 11

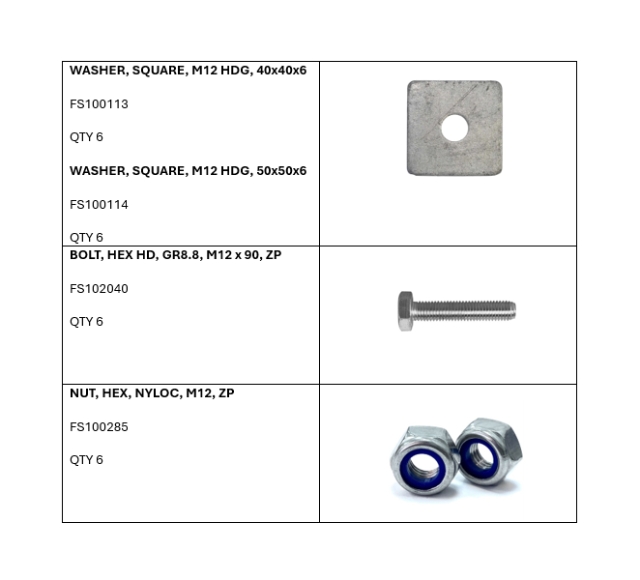

<p>Components List</p>

Components List

5
Step 5 of 11

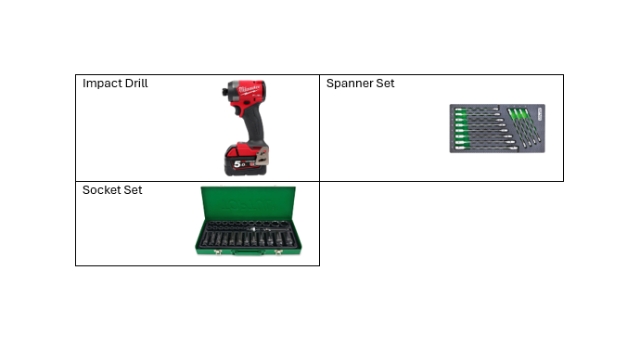

<p>Tools List</p>

Tools List

6
Step 6 of 11
<p>Torque Values</p>

Torque Values

7
Step 7 of 11

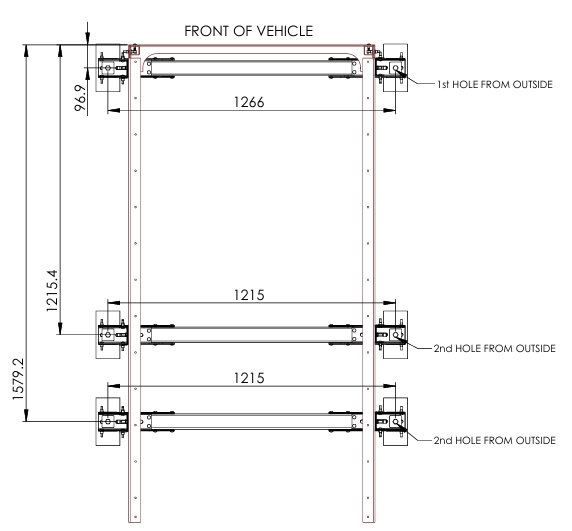

<p>Hole Diagram</p>

Hole Diagram

8
Step 8 of 11

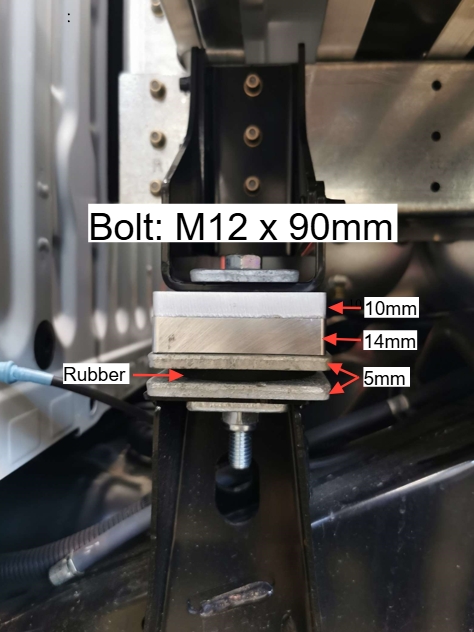

<p>D-Max/BT50 EC Front</p><p>Distance to the front of the chassis: 96.9mm</p><p>Bolt Hole: 1st hole from outside</p>

D-Max/BT50 EC Front

Distance to the front of the chassis: 96.9mm

Bolt Hole: 1st hole from outside

9
Step 9 of 11
<p>D-MAX/BT50 EC Middle</p><p>Distance to the front of the chassis: 1215.4mm</p><p>Bolt Hole: Second From The Outside</p>

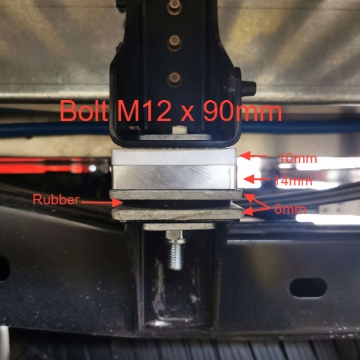

D-MAX/BT50 EC Middle

Distance to the front of the chassis: 1215.4mm

Bolt Hole: Second From The Outside

10
Step 10 of 11

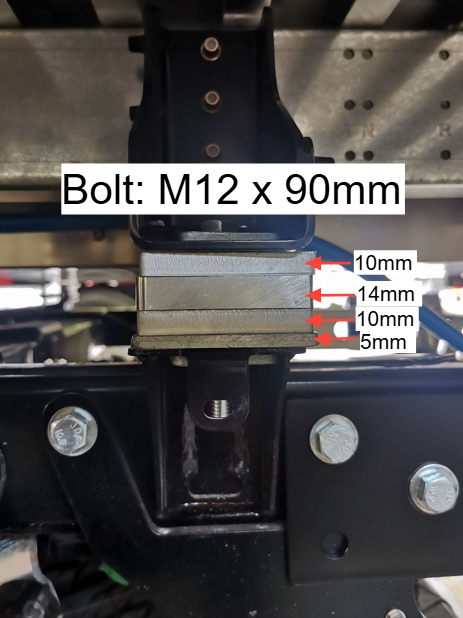

<p>D-MAX/BT50 EC Back</p><p>Distance to the front of the chassis: 1579.2mm</p><p>Bolt Hole: Second From The Outside</p>

D-MAX/BT50 EC Back

Distance to the front of the chassis: 1579.2mm

Bolt Hole: Second From The Outside

11
Step 11 of 11
<p>QA Sheet</p>

QA Sheet
