Retrofit Brakes to a Modular Axle
This Knowby will run you through step by step on how to Retrofit Brakes to a Modular Axle
This Knowby will run you through step by step on how to Retrofit Brakes to a Modular Axle
1
Step 1 of 11

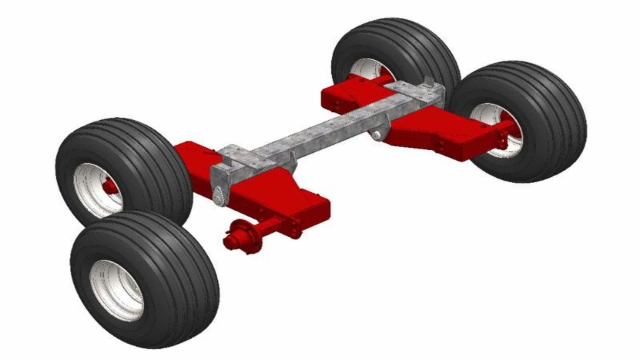

<p>Jack up walking beam and remove front wheel</p>

Jack up walking beam and remove front wheel

2
Step 2 of 11

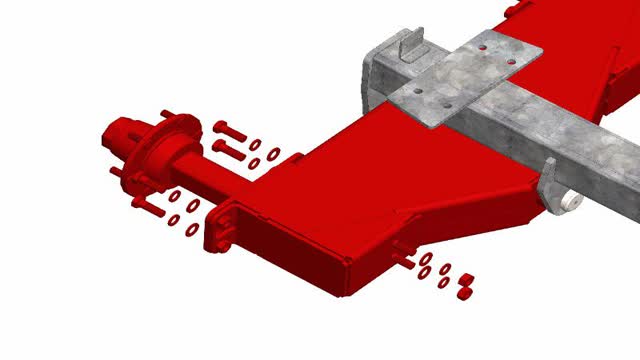

<p>Remove hub sleeve fasteners</p>

Remove hub sleeve fasteners

3
Step 3 of 11

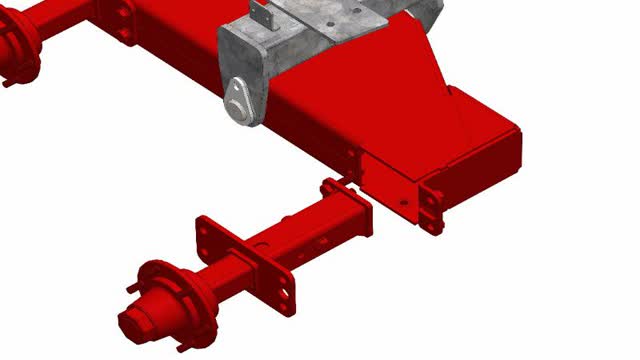

<p>Remove sleeve from walking beam assembly</p>

Remove sleeve from walking beam assembly

4
Step 4 of 11

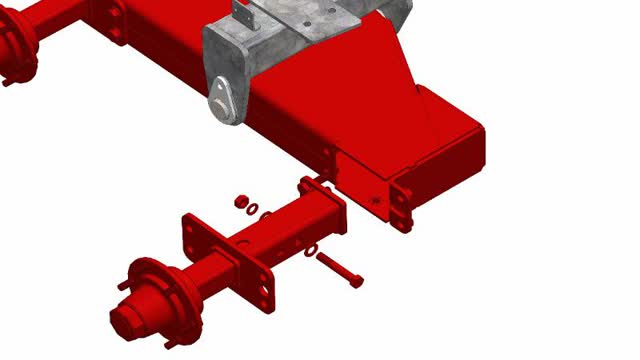

<p>Remove hub retainer bolt</p>

Remove hub retainer bolt

5
Step 5 of 11

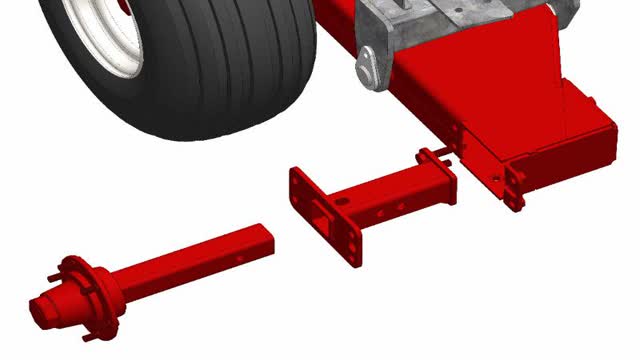

<p>Remove hub from sleeve</p>

Remove hub from sleeve

6
Step 6 of 11

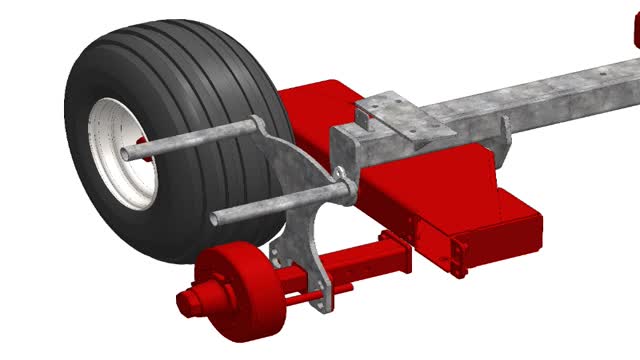

<p>If mudguards are required, fit bracket between hub and sleeve mounting face. Brake rod fits through cut outs in profiles</p>

If mudguards are required, fit bracket between hub and sleeve mounting face. Brake rod fits through cut outs in profiles

7
Step 7 of 11

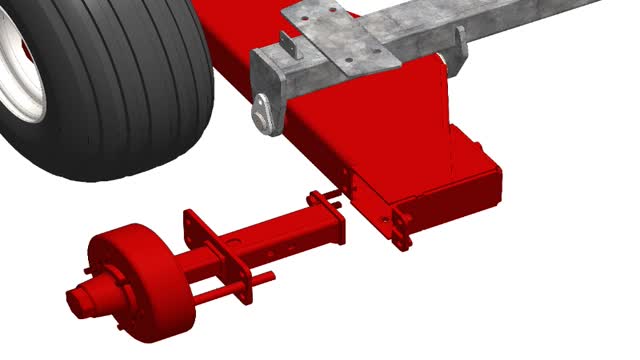

<p>Fit braked hub in sleeve. If no change to tyre size, fit braked hub using same hole as unbraked hub</p>

Fit braked hub in sleeve. If no change to tyre size, fit braked hub using same hole as unbraked hub

8
Step 8 of 11

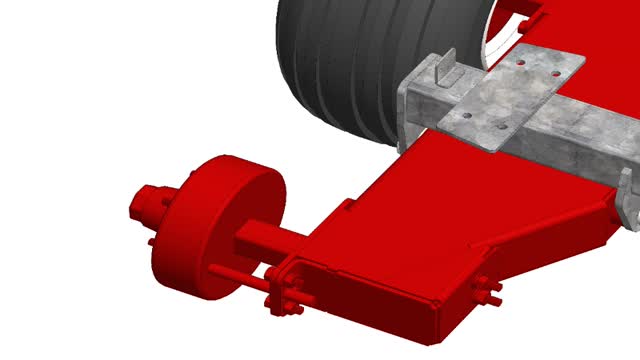

<p>Refit sleeve to walking beam and refit fasteners to rear and front where brake shaft passes between</p>

Refit sleeve to walking beam and refit fasteners to rear and front where brake shaft passes between

9
Step 9 of 11

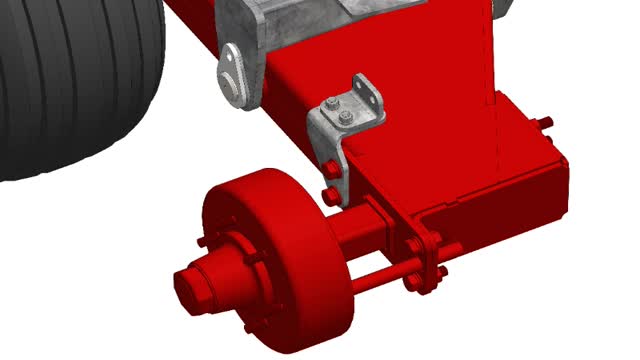

<p>Fit brake ram mount and tighten all hub sleeve mounting fasteners</p>

Fit brake ram mount and tighten all hub sleeve mounting fasteners

10
Step 10 of 11

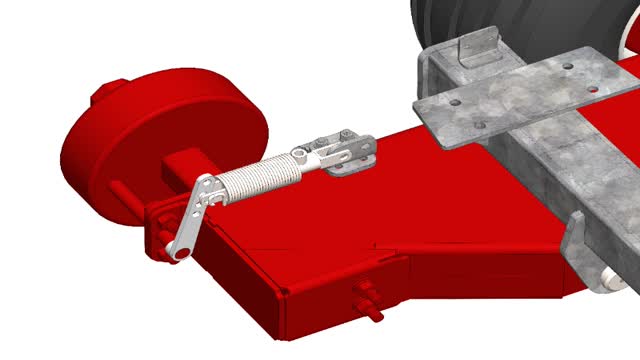

<p>Fit brake arm, circlip, and brake ram</p>

Fit brake arm, circlip, and brake ram

11
Step 11 of 11

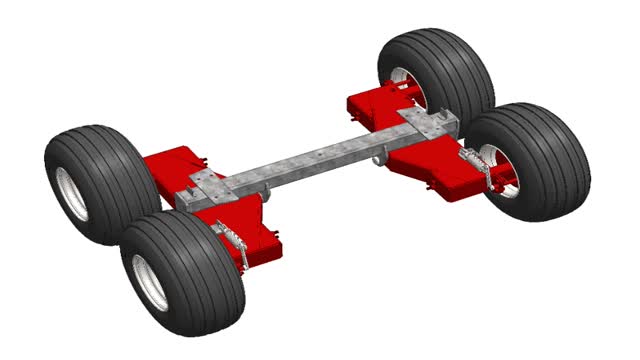

<p>Refit tyre and repeat steps for opposite side</p>

Refit tyre and repeat steps for opposite side
