xMounts Layout: "MQ-MR" Triton, D-Cab
1
Step 1 of 4

Use marking Jig #6

2
Step 2 of 4

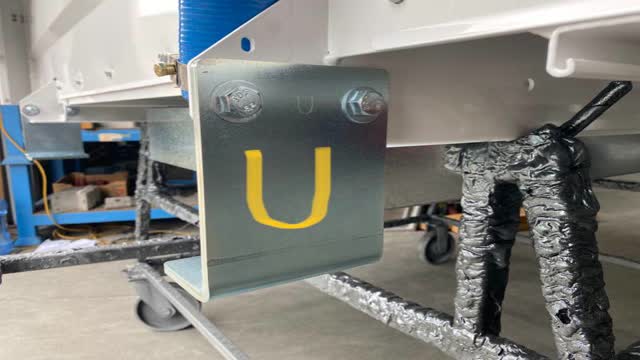

<p>“U”</p> <p>Front both sides</p>

“U”

Front both sides

3
Step 3 of 4

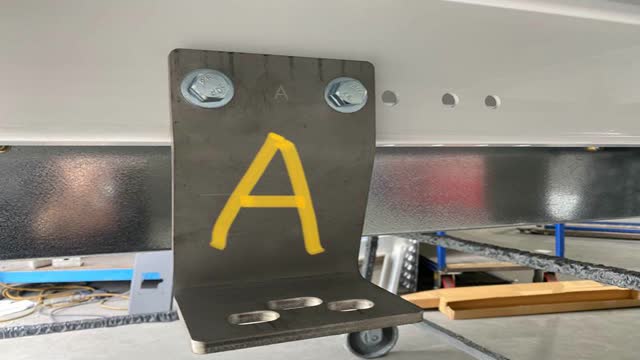

<p>“A”</p> <p>Middle, both sides</p> <p>778mm (From front of front mount to front of this mount)</p>

“A”

Middle, both sides

778mm (From front of front mount to front of this mount)

4
Step 4 of 4

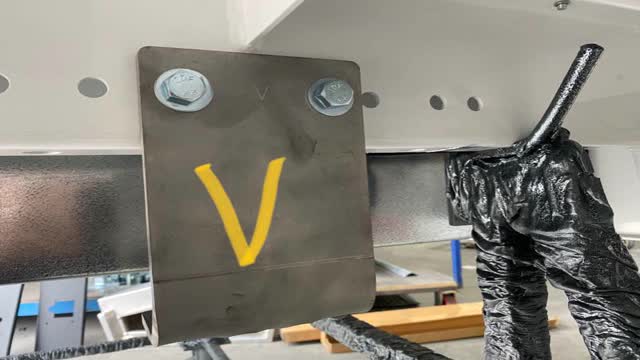

<p>“V”</p> <p>Rear, both sides  1238mm (From front of front mount to front of this mount)</p>

“V”

Rear, both sides  1238mm (From front of front mount to front of this mount)
