How to fill 1000Lt calf feeder.

Knowby

How to fill 1000Lt calf feeder.

1

Step 1 of 13

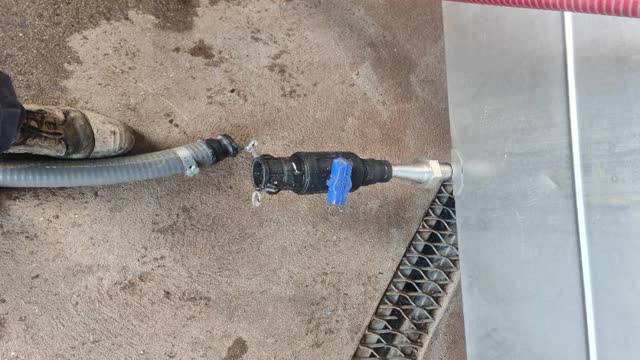

<p>Connect 1 end of the LONG grey hose to the calf vat make sure valve is shut.</p>

Connect 1 end of the LONG grey hose to the calf vat make sure valve is shut.

2

Step 2 of 13

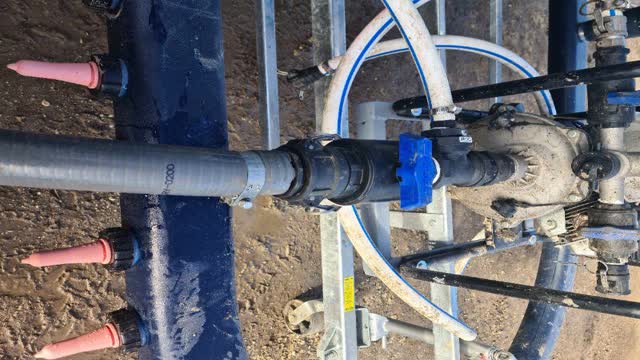

<p>Connect other end of the LONG grey hose to the pump.</p>

Connect other end of the LONG grey hose to the pump.

3

Step 3 of 13

Open intake valve on pump

4

Step 4 of 13

Close the Drain valve and make sure the cam lock on the white hose is connected.

5

Step 5 of 13

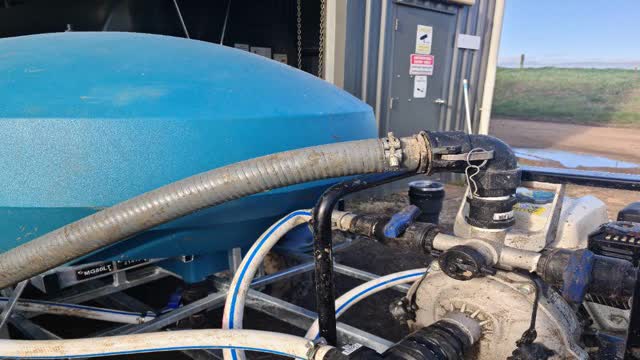

<p>Connect SHORT grey hose to the top 2inch outlet</p>

Connect SHORT grey hose to the top 2inch outlet

6

Step 6 of 13

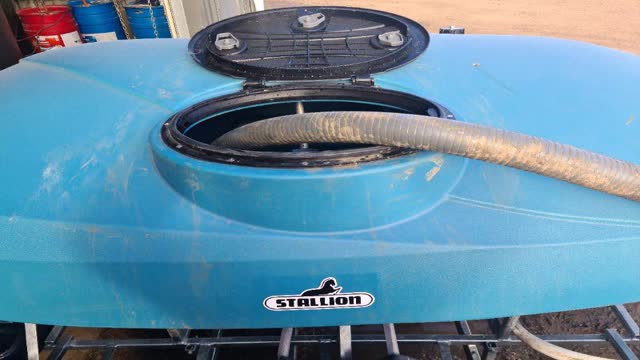

<p>Place other end of the SHORT grey hose in through the lid.</p>

Place other end of the SHORT grey hose in through the lid.

7

Step 7 of 13

Make sure pump element drain is in and closed

8

Step 8 of 13

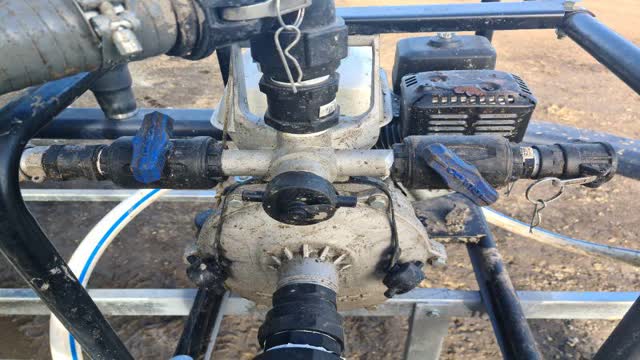

<p>Slightly open the blue valve with nothing connected on and make sure the other is shut.</p>

Slightly open the blue valve with nothing connected on and make sure the other is shut.

9

Step 9 of 13

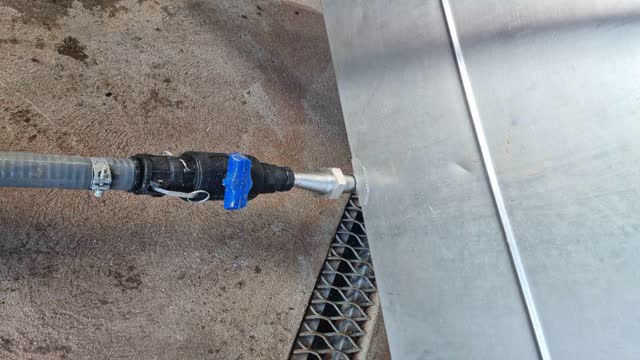

<p>Open the valve on the calf vat. Make sure the valve inside the is open to.</p>

Open the valve on the calf vat. Make sure the valve inside the is open to.

10

Step 10 of 13

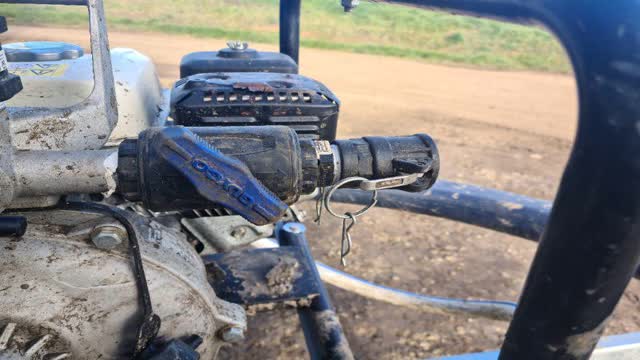

<p>Wait for milk to flow out of the small blue valve then close the valve.</p>

Wait for milk to flow out of the small blue valve then close the valve.

11

Step 11 of 13

Start the pump Turn fuel on (bottom black tab) Switch choke on (grey tab above fuel valve) Switch ignition on

12

Step 12 of 13

Give the cord a good pull If it does not start pull the cord till it does. After a few seconds of running switch choke off. (If this stalls the engine. Repeat step 11 and 12 till it does not) Let the engine idle for a minute to warm up.

13

Step 13 of 13

Slowly increase the RPM but moving the throttle leaver slowly towards the front of the trailer.
