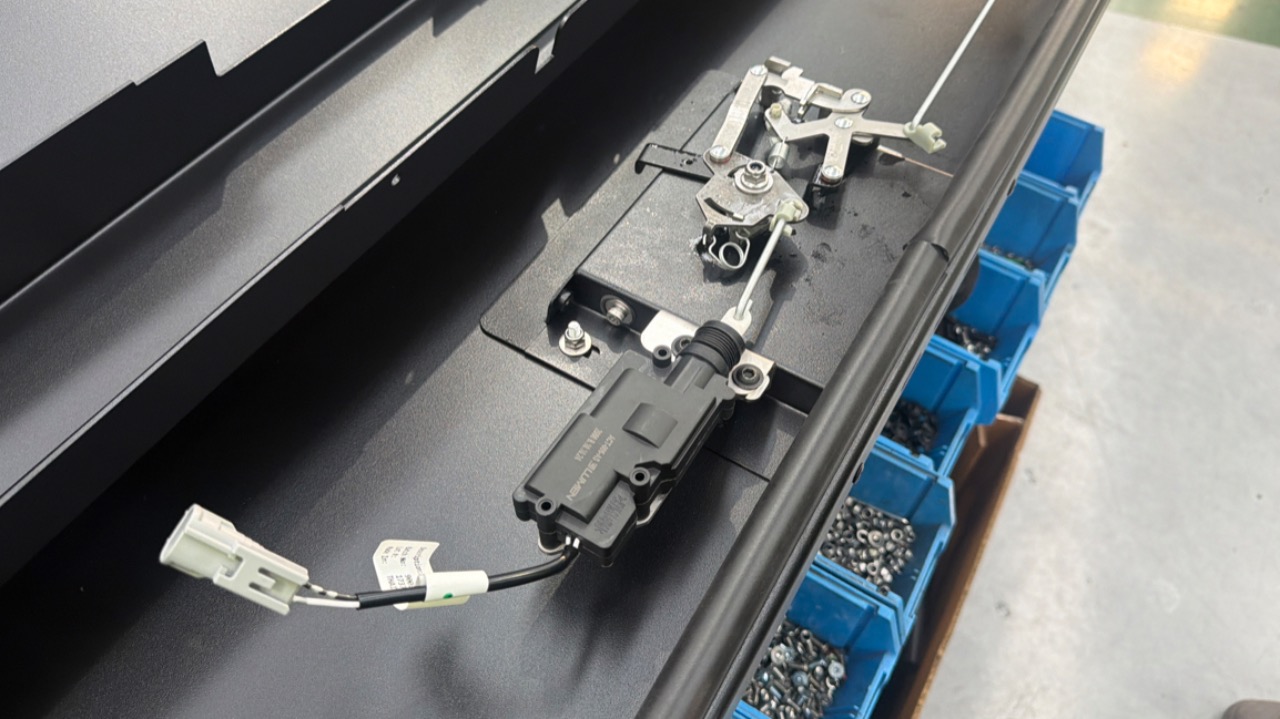

TC - Central Locking Retro-fit
1
Step 1 of 11
<p>Remove all lock covers using a 4mm Allen key.</p>

Remove all lock covers using a 4mm Allen key.

2
Step 2 of 11

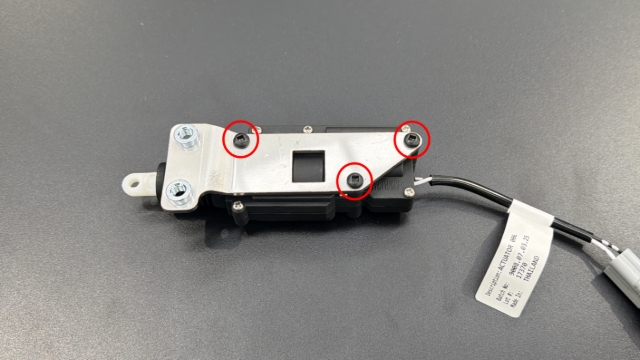

<p>Install each actuator to a mounting plate.</p>

Install each actuator to a mounting plate.

3
Step 3 of 11
<p>Install the actuator plates to each handle using 2 M6 pre-loctited bolts.</p>

Install the actuator plates to each handle using 2 M6 pre-loctited bolts.

4
Step 4 of 11

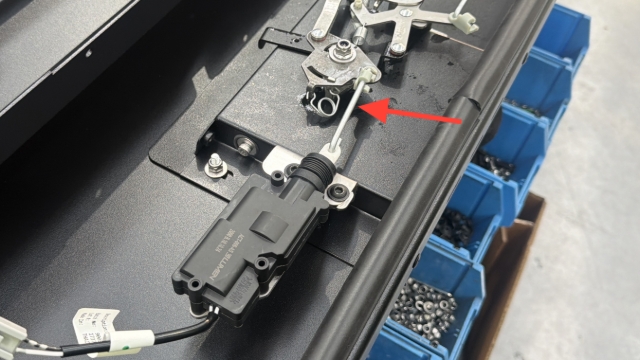

<p>Install the locking arm between the actuator and handle.</p>

Install the locking arm between the actuator and handle.

5
Step 5 of 11

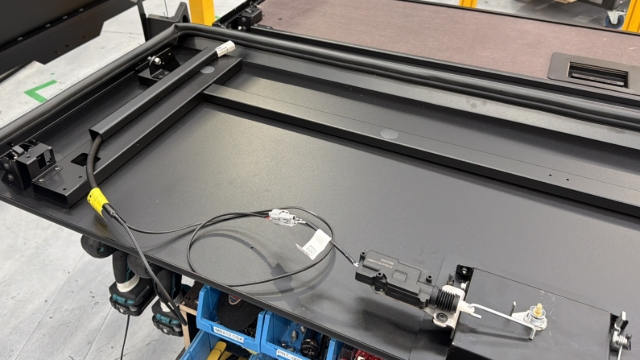

<p>Side Doors: Run the door wiring loom away from the handle, through the wiring cover.</p><p>Rear Door: Run the door wiring loom across the handle, through the wiring cover.</p><p>Tie up any loose wiring so it does not interfere with the door mechanism.</p>

Side Doors: Run the door wiring loom away from the handle, through the wiring cover.

Rear Door: Run the door wiring loom across the handle, through the wiring cover.

Tie up any loose wiring so it does not interfere with the door mechanism.

6
Step 6 of 11

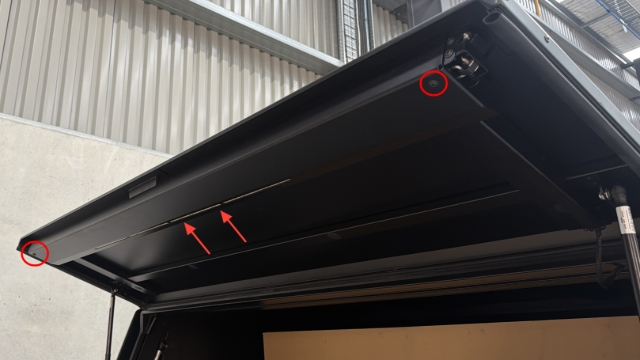

<p>Reinstall all lock covers using a 4mm Allen key.</p>

Reinstall all lock covers using a 4mm Allen key.

7
Step 7 of 11
<p>Remove these wiring caps from the body.</p>

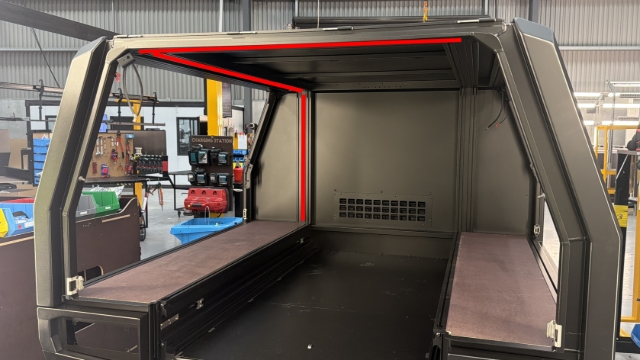

Remove these wiring caps from the body.

8
Step 8 of 11

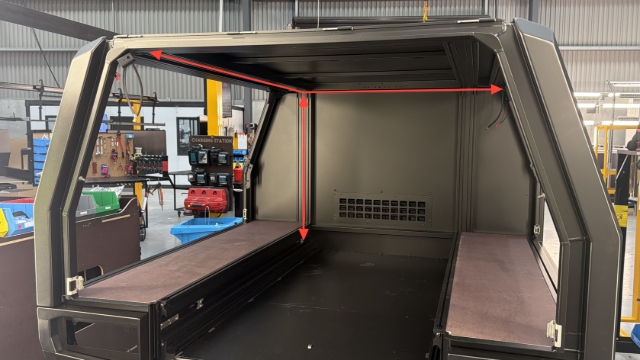

<p>Route the body wiring harness through the wiring channels in the directions shown - the branch with 2 plugs needs to be routed to the rear of the body.</p>

Route the body wiring harness through the wiring channels in the directions shown - the branch with 2 plugs needs to be routed to the rear of the body.

9
Step 9 of 11

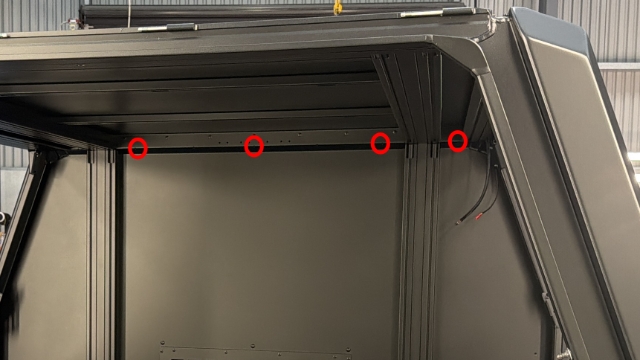

<p>Cable tie the driver's side door branch to the top-front of the body.</p>

Cable tie the driver's side door branch to the top-front of the body.

10
Step 10 of 11
<p>Ensure all deutsch plugs are pinned as either:</p><p></p><p>1.) Unlock - Green (4 core wiring sheath)</p><p>2.) Lock - Brown (4 core wiring sheath)</p><p></p><p>1.) Unlock - Red (2 core wiring sheath)</p><p>2.) Lock - Black (2 core wiring sheath)</p><p></p><p></p>

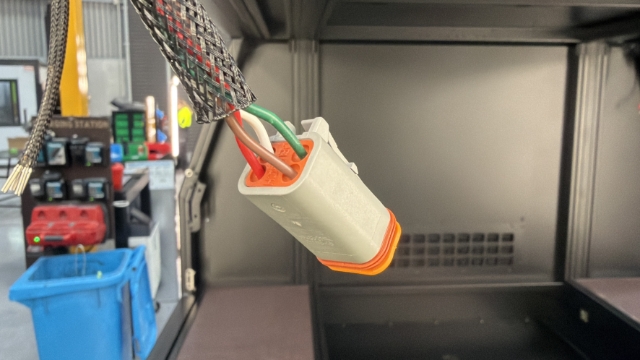

Ensure all deutsch plugs are pinned as either:

1.) Unlock - Green (4 core wiring sheath)

2.) Lock - Brown (4 core wiring sheath)

1.) Unlock - Red (2 core wiring sheath)

2.) Lock - Black (2 core wiring sheath)

11
Step 11 of 11

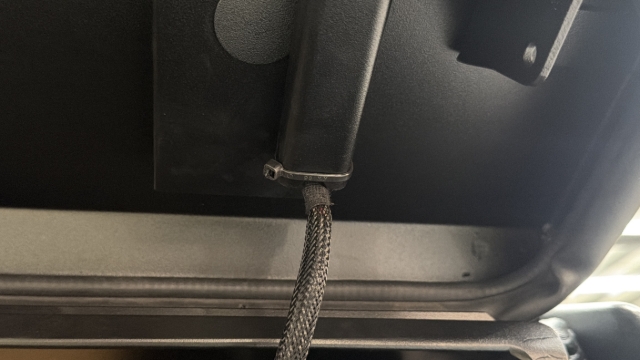

<blockquote><p><strong>CQC:</strong> Test functionality before cable tying the plug inside the wiring cover</p></blockquote><p><em>Note: If the plug is not cable tied inside the wiring cover it will get crushed between the door and top flange of the body.</em></p><p></p>

CQC: Test functionality before cable tying the plug inside the wiring cover

Note: If the plug is not cable tied inside the wiring cover it will get crushed between the door and top flange of the body.
