Turn Lockett’s pivot on

Knowby

Turn Lockett’s pivot on

1

Step 1 of 10

<p>Go to this panel at the centre of the Lockett’s pivot in pddock 34</p>

Go to this panel at the centre of the Lockett’s pivot in pddock 34

2

Step 2 of 10

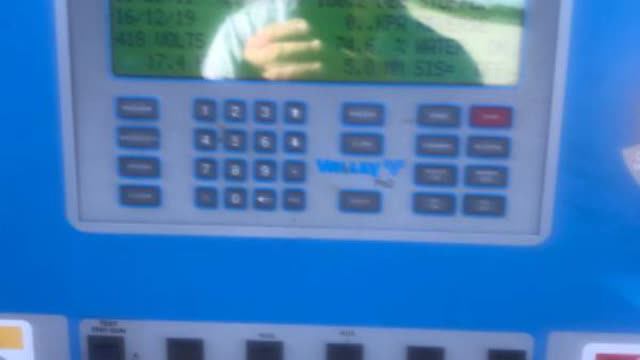

<p>Open the box which will now show this panel</p>

Open the box which will now show this panel

3

Step 3 of 10

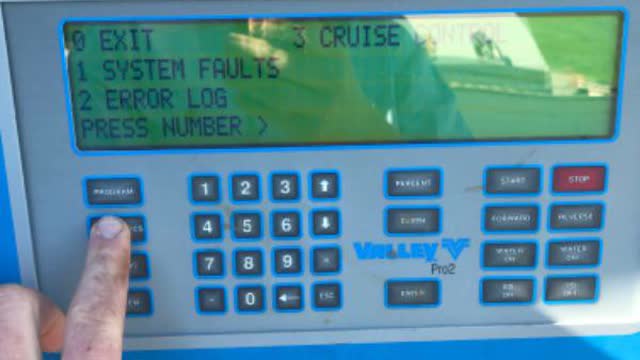

<p>Press the ‘diagnostics’ button</p>

Press the ‘diagnostics’ button

4

Step 4 of 10

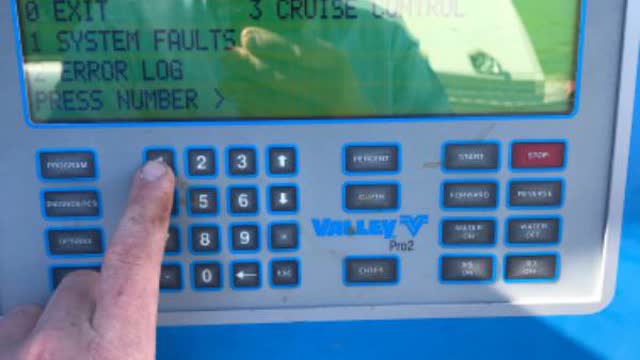

<p>When this screen comes up press ‘1’</p>

When this screen comes up press ‘1’

5

Step 5 of 10

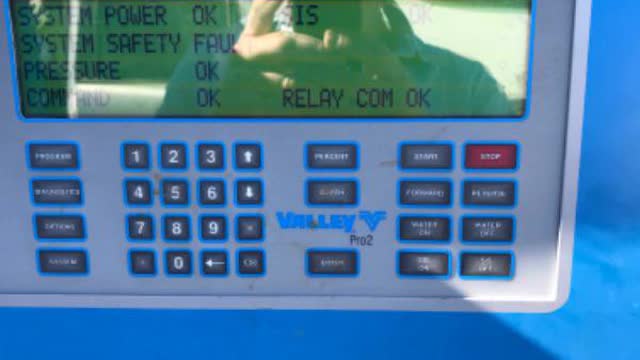

<p>Check whether the pivot is off for a reason. Here you can see the system safety fault alert is on. Often the pressure is at fault</p>

Check whether the pivot is off for a reason. Here you can see the system safety fault alert is on. Often the pressure is at fault

6

Step 6 of 10

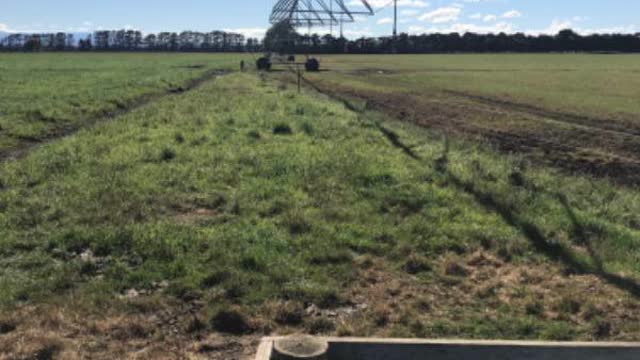

<p>If it is a system safety fault go to each tower and check for flat tyres or bogged towers</p>

If it is a system safety fault go to each tower and check for flat tyres or bogged towers

7

Step 7 of 10

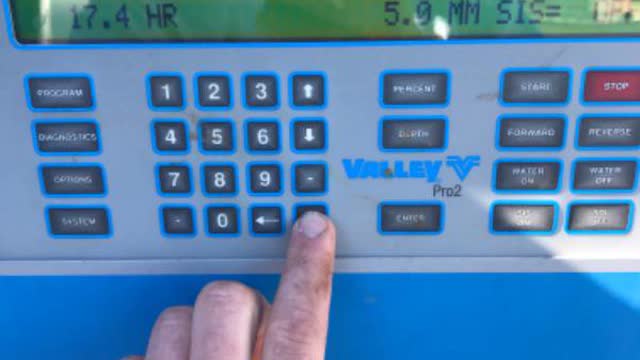

<p>If there are no faults press the esc button twice getting you back to the home screen</p>

If there are no faults press the esc button twice getting you back to the home screen

8

Step 8 of 10

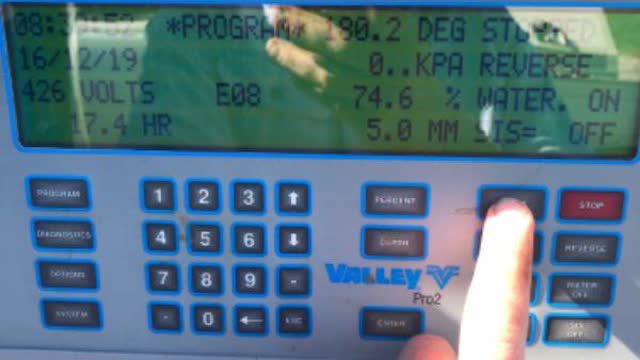

<p>Press water on, and forward and then press start</p>

Press water on, and forward and then press start

9

Step 9 of 10

Press the depth button and then press 8 and then press enter

10

Step 10 of 10

Wait with pivot to ensure water starts going through it and it starts walking
